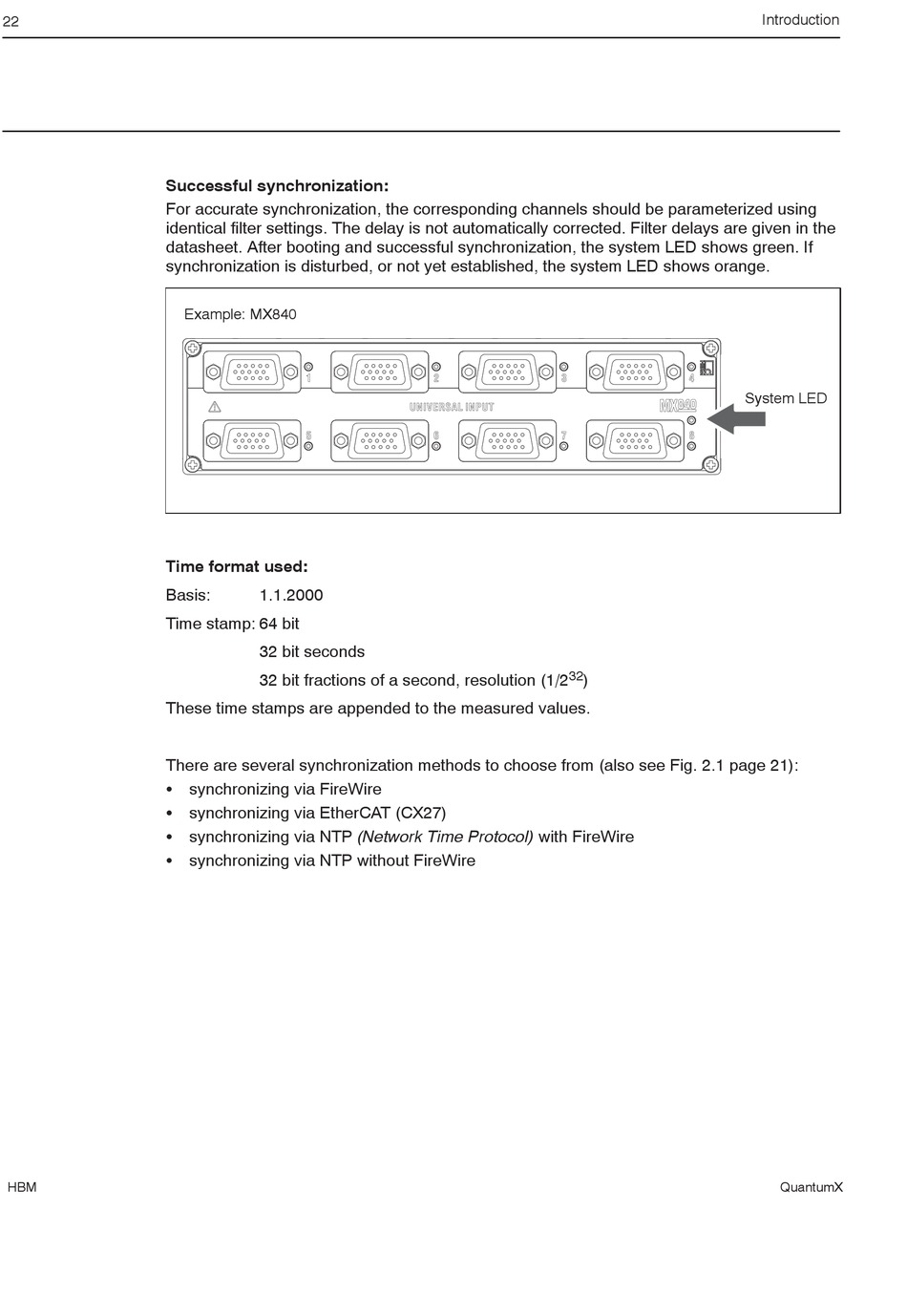

Successful synchronization:
For accurate synchronization, the corresponding channels should be parameterized using
identical filter settings. The delay is not automatically corrected. Filter delays are given in the
datasheet. After booting and successful synchronization, the system LED shows green. If
synchronization is disturbed, or not yet established, the system LED shows orange.
Time format used:
Basis:
Time stamp: 64 bit
These time stamps are appended to the measured values.
There are several synchronization methods to choose from (also see Fig. 2.1 page 21):
S synchronizing via FireWire
S synchronizing via EtherCAT (CX27)
S synchronizing via NTP (Network Time Protocol) with FireWire
S synchronizing via NTP without FireWire
HBM
Example: MX840
1.1.2000
32 bit seconds
32 bit fractions of a second, resolution (1/2
32
)
Introduction
System LED
QuantumX
