2.2

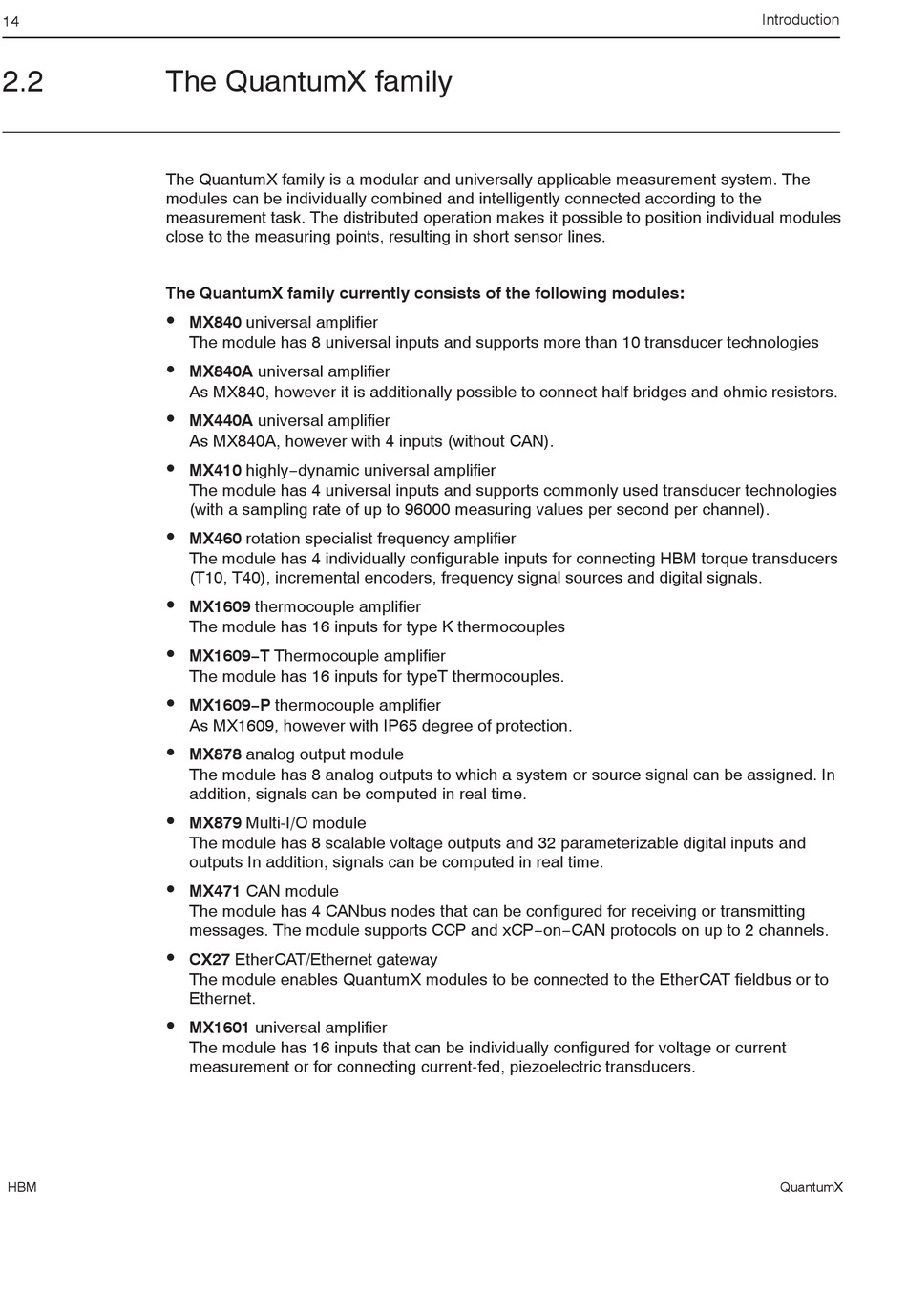

The QuantumX family

The QuantumX family is a modular and universally applicable measurement system. The
modules can be individually combined and intelligently connected according to the
measurement task. The distributed operation makes it possible to position individual modules
close to the measuring points, resulting in short sensor lines.
The QuantumX family currently consists of the following modules:
S
S
S
S
S
S
S
S
S
S
S
S
S
HBM
MX840 universal amplifier
The module has 8 universal inputs and supports more than 10 transducer technologies
MX840A universal amplifier
As MX840, however it is additionally possible to connect half bridges and ohmic resistors.
MX440A universal amplifier
As MX840A, however with 4 inputs (without CAN).
MX410 highly−dynamic universal amplifier
The module has 4 universal inputs and supports commonly used transducer technologies
(with a sampling rate of up to 96000 measuring values per second per channel).
MX460 rotation specialist frequency amplifier
The module has 4 individually configurable inputs for connecting HBM torque transducers
(T10, T40), incremental encoders, frequency signal sources and digital signals.
MX1609 thermocouple amplifier
The module has 16 inputs for type K thermocouples
MX1609−T Thermocouple amplifier
The module has 16 inputs for typeT thermocouples.
MX1609−P thermocouple amplifier
As MX1609, however with IP65 degree of protection.
MX878 analog output module
The module has 8 analog outputs to which a system or source signal can be assigned. In
addition, signals can be computed in real time.
MX879 Multi-I/O module
The module has 8 scalable voltage outputs and 32 parameterizable digital inputs and
outputs In addition, signals can be computed in real time.
MX471 CAN module
The module has 4 CANbus nodes that can be configured for receiving or transmitting
messages. The module supports CCP and xCP−on−CAN protocols on up to 2 channels.
CX27 EtherCAT/Ethernet gateway
The module enables QuantumX modules to be connected to the EtherCAT fieldbus or to
Ethernet.
MX1601 universal amplifier
The module has 16 inputs that can be individually configured for voltage or current
measurement or for connecting current-fed, piezoelectric transducers.
