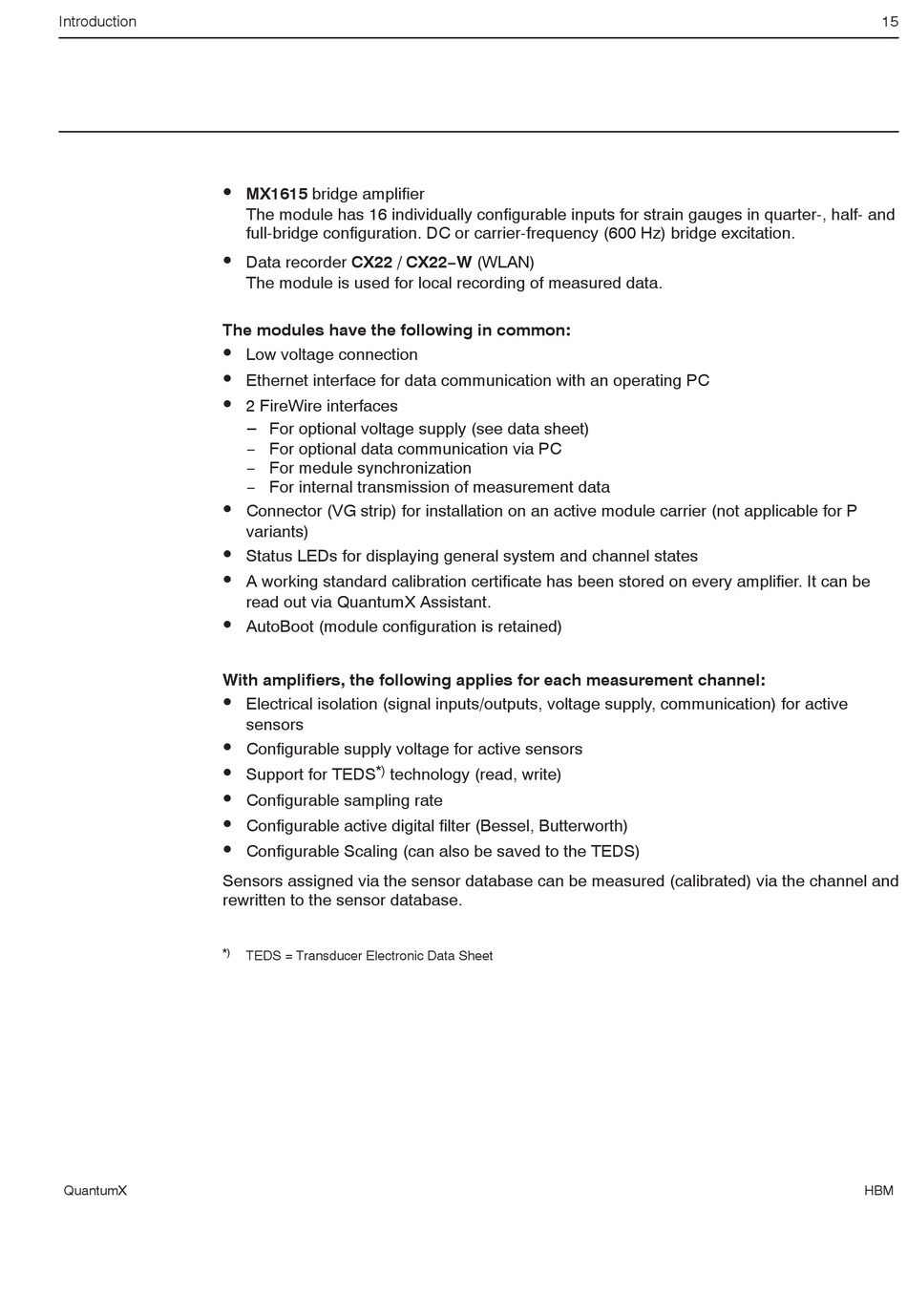

HBM QuantumX MX840 Operating Manual page 15

Introduction
S
S
The modules have the following in common:
S
S
S
S
S
S
S
With amplifiers, the following applies for each measurement channel:
S
S
S
S
S
S
Sensors assigned via the sensor database can be measured (calibrated) via the channel and
rewritten to the sensor database.
*)
QuantumX
MX1615 bridge amplifier
The module has 16 individually configurable inputs for strain gauges in quarter-, half- and
full-bridge configuration. DC or carrier-frequency (600 Hz) bridge excitation.
Data recorder CX22 / CX22−W (WLAN)
The module is used for local recording of measured data.
Low voltage connection
Ethernet interface for data communication with an operating PC
2 FireWire interfaces
−
For optional voltage supply (see data sheet)
− For optional data communication via PC
− For medule synchronization
− For internal transmission of measurement data
Connector (VG strip) for installation on an active module carrier (not applicable for P
variants)
Status LEDs for displaying general system and channel states
A working standard calibration certificate has been stored on every amplifier. It can be
read out via QuantumX Assistant.
AutoBoot (module configuration is retained)
Electrical isolation (signal inputs/outputs, voltage supply, communication) for active
sensors
Configurable supply voltage for active sensors
*)
Support for TEDS technology (read, write)
Configurable sampling rate
Configurable active digital filter (Bessel, Butterworth)
Configurable Scaling (can also be saved to the TEDS)
TEDS = Transducer Electronic Data Sheet
