HBM QuantumX MX840 Operating Manual page 57

Connection
• Click on "OK"

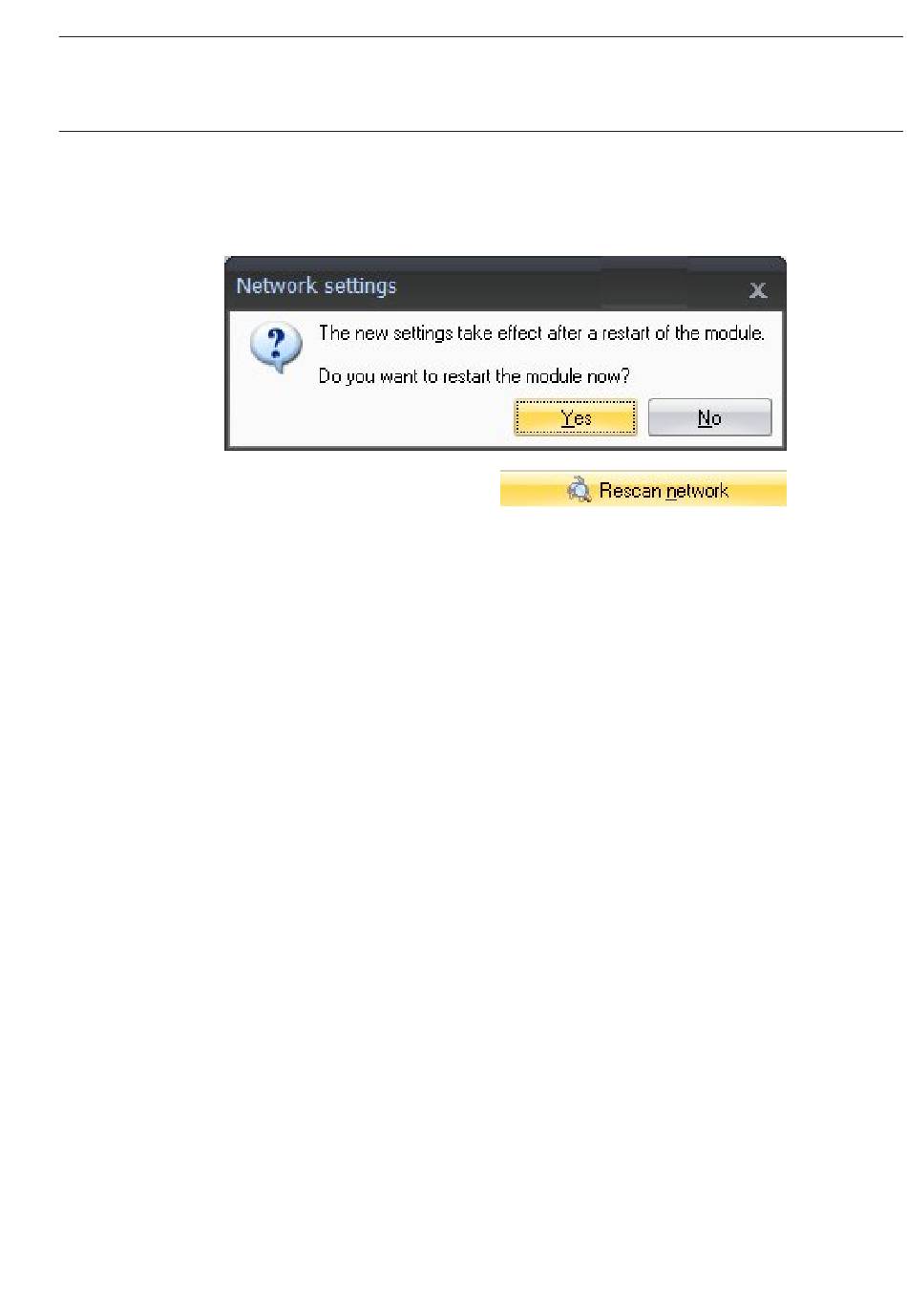

• Confirm the settings with the "Yes" button, the module is then restarted with the current
After approx. 45 seconds click on the
The system LED of the module should now light up green, if not please check your network
settings again! If the network settings are ok, the module names are shown in black.
• Mark the relevant modules by checking the relevant checkbox
• Confirm with "OK" and you are now ready for your first measurement job
Connector pin-outs can be found in the operating manual.
Channel configuration can be found in the online help of the software.
Ethernet settings: adapt your PC's IP address
If you use your computer in various networks (IP address changes), but your modules have a
fixed IP address, you should use the "Alternative Configuration" in the TCP/IP properties
(fixed IP address and subnet mask, user-defined)!
Edit the PC settings as follows:
• Open the network connections (Start/Settings/Network connections).
• Mark your LAN connection with a right−click and select "Properties" in the context menu.
• Select the tab "General" and mark the Internet (TCP/IP) under "This connection uses the
QuantumX
settings.
following items". Click on the "Properties" button.
