BPX001 Backplane
4.5.3

Mounting the modules

We recommend a T-handle socket spanner 4x150 (across flats 4 mm, length 150 mm).
The modules can only be fastened in backplanes in housings with IP20 protection
without case protection, case clips or lateral covers If these are present, remove as
shown in Chapter 4.
Mounting sequence:

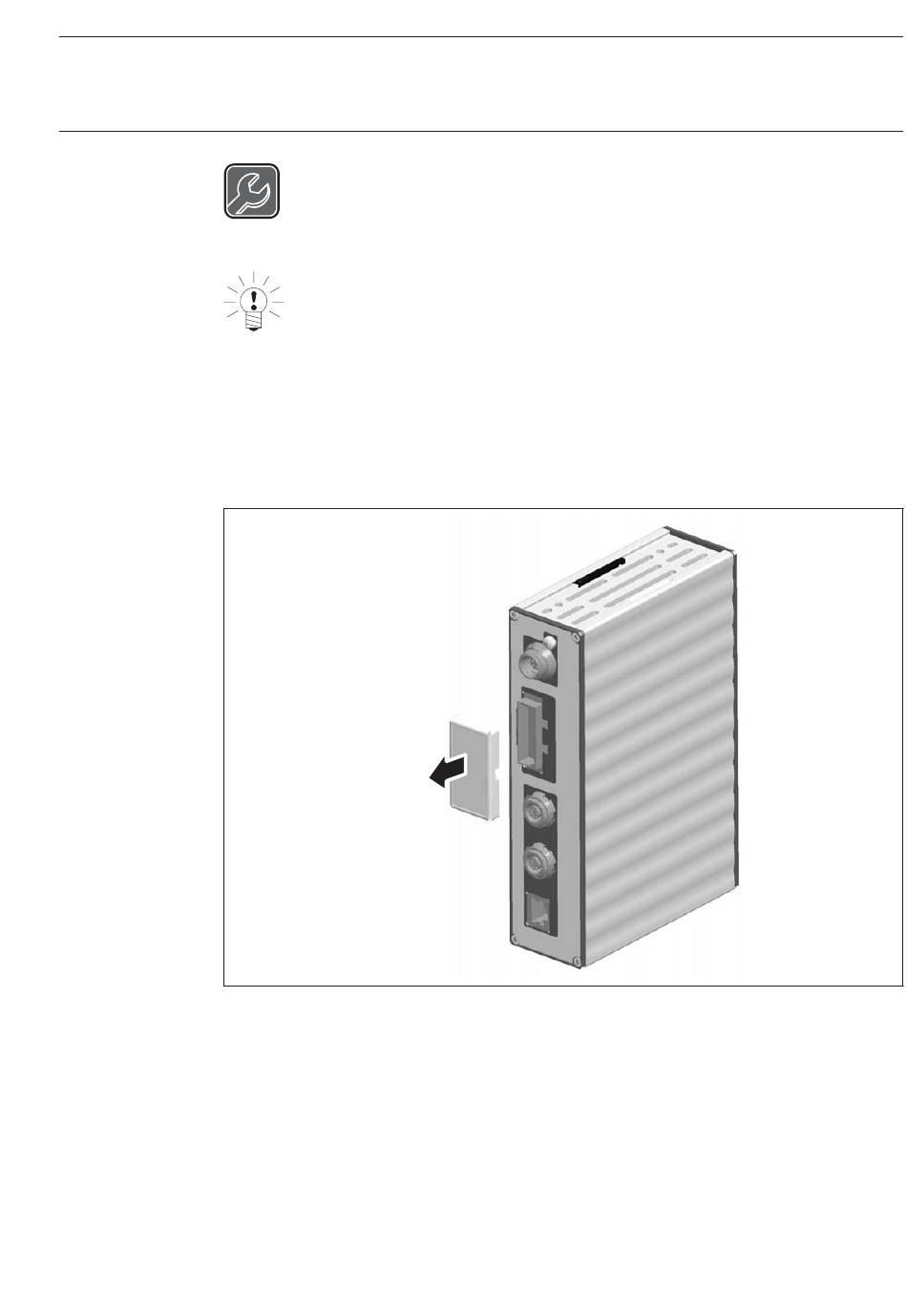

1. Remove the cover of the connecting plug (rear of module).
Fig. 4.19: Remove cover
2. Unscrew the upper and lower screwed clamping glands of the backplane up to the stop
QuantumX
TOOLS
NOTE
Cover
(the screws are secured against falling out!).
43
