Functions and outputs
7.1 MX410
The MX410 module is a module with eight analog outputs that can be accessed on the front
panel via BNC sockets.
The outputs are directly assigned to the above located inputs.

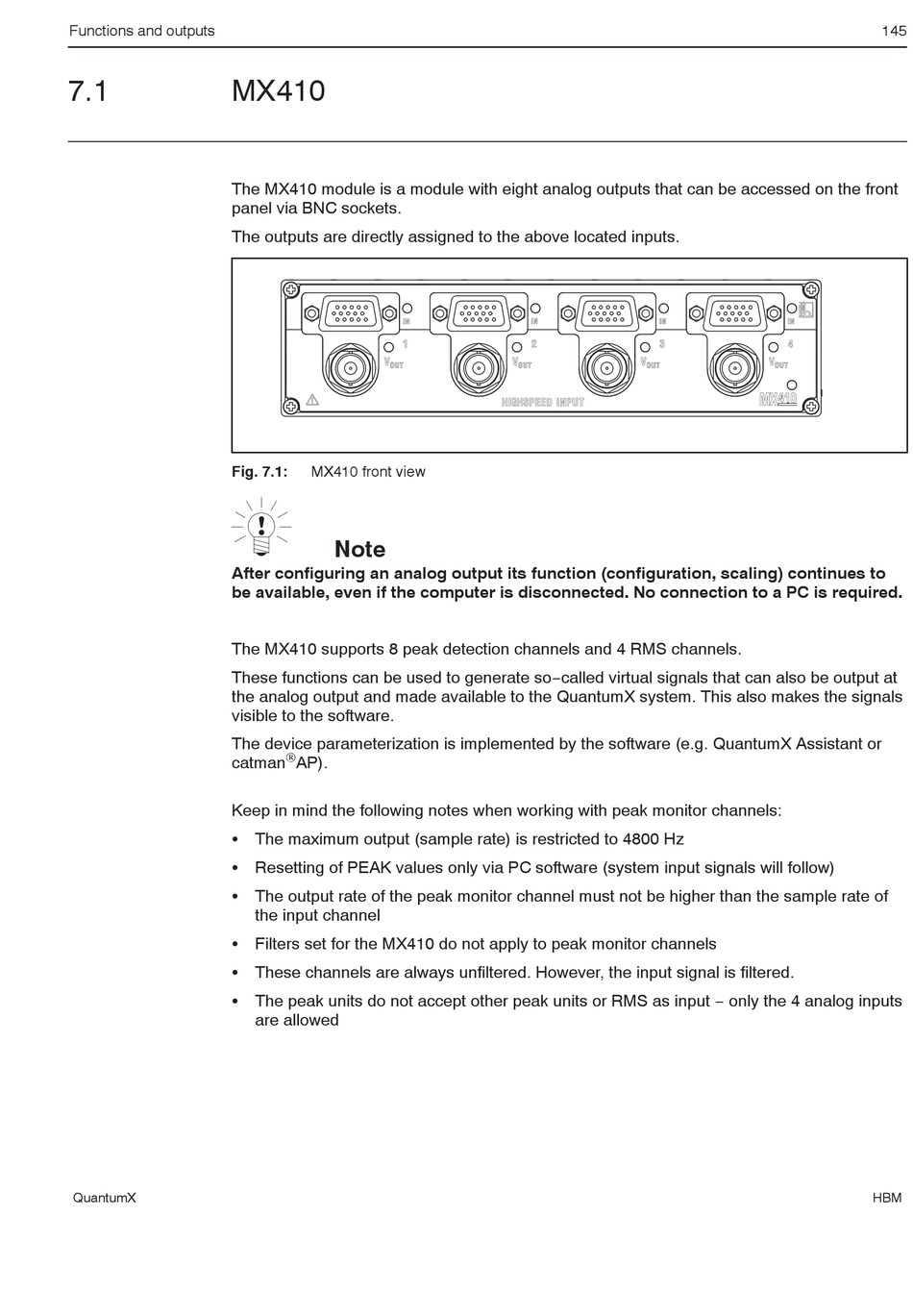

Fig. 7.1:
After configuring an analog output its function (configuration, scaling) continues to
be available, even if the computer is disconnected. No connection to a PC is required.
The MX410 supports 8 peak detection channels and 4 RMS channels.
These functions can be used to generate so−called virtual signals that can also be output at
the analog output and made available to the QuantumX system. This also makes the signals
visible to the software.
The device parameterization is implemented by the software (e.g. QuantumX Assistant or
catman
Keep in mind the following notes when working with peak monitor channels:
S The maximum output (sample rate) is restricted to 4800 Hz
S Resetting of PEAK values only via PC software (system input signals will follow)
S The output rate of the peak monitor channel must not be higher than the sample rate of
S Filters set for the MX410 do not apply to peak monitor channels
S These channels are always unfiltered. However, the input signal is filtered.
S The peak units do not accept other peak units or RMS as input − only the 4 analog inputs
QuantumX
MX410 front view
Note
®
AP).
the input channel
are allowed
