Valcom V-WMCA Series Installation Manual page 25

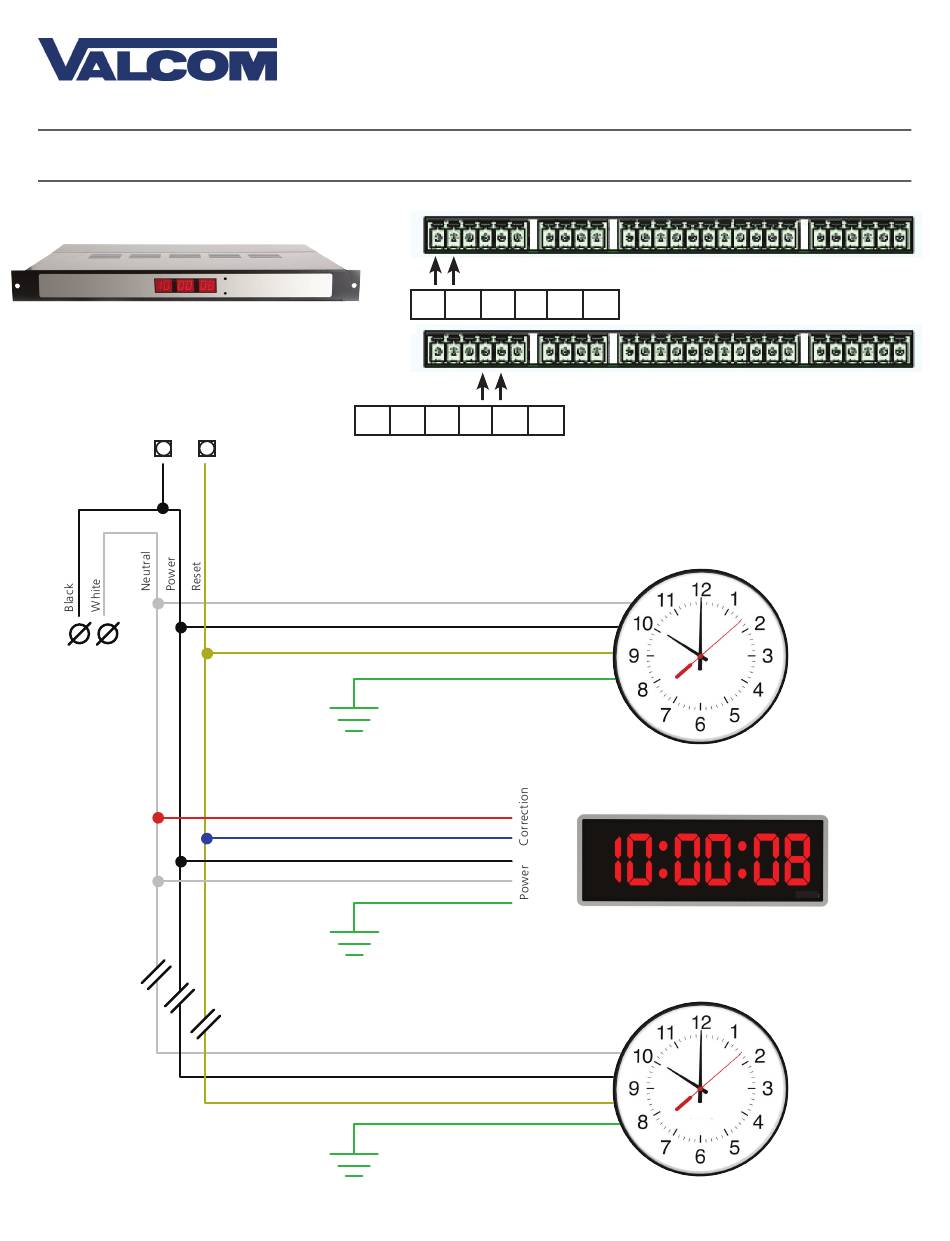

Outputs - Sync-Wire 115/230VAC
Valcom Master Clock
10 Amp Contact Rating
Clock Circuit
27 26
or
24 23
115 VAC
or*
27 26 25 24 23 22
Neutral White
Power Black
Reset Yellow
Green
Ground
Neutral J1-1
Reset J1-2
Power Black
Neutral
White
Green
Ground
Neutral White
Power Black
Reset Yellow
Green
Ground
27 26 25 24 23 22
Clock Circuit 2
115 VAC Valcom Wired Analog Clock
115 VAC Valcom Wired Digital Clock
Red & Blue Wires are NOT provided by Valcom
115 VAC Valcom Wired Analog Clock
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
Clock Circuit 1
* "or" means one pair of ports or
the other. You cannot, for instance,
use port 23 for reset and 27 for
power, nor can you use 26 for reset
and 24 for power. You must use
the pair 24 AND 23 or the pair
26 AND 27
P. 540-563-2000
F. 540-362-9800
www.valcom.com
25
