Valcom V-WMCA Series Installation Manual page 14

Installing a Master Clock - Remote Antenna for Rack Mount

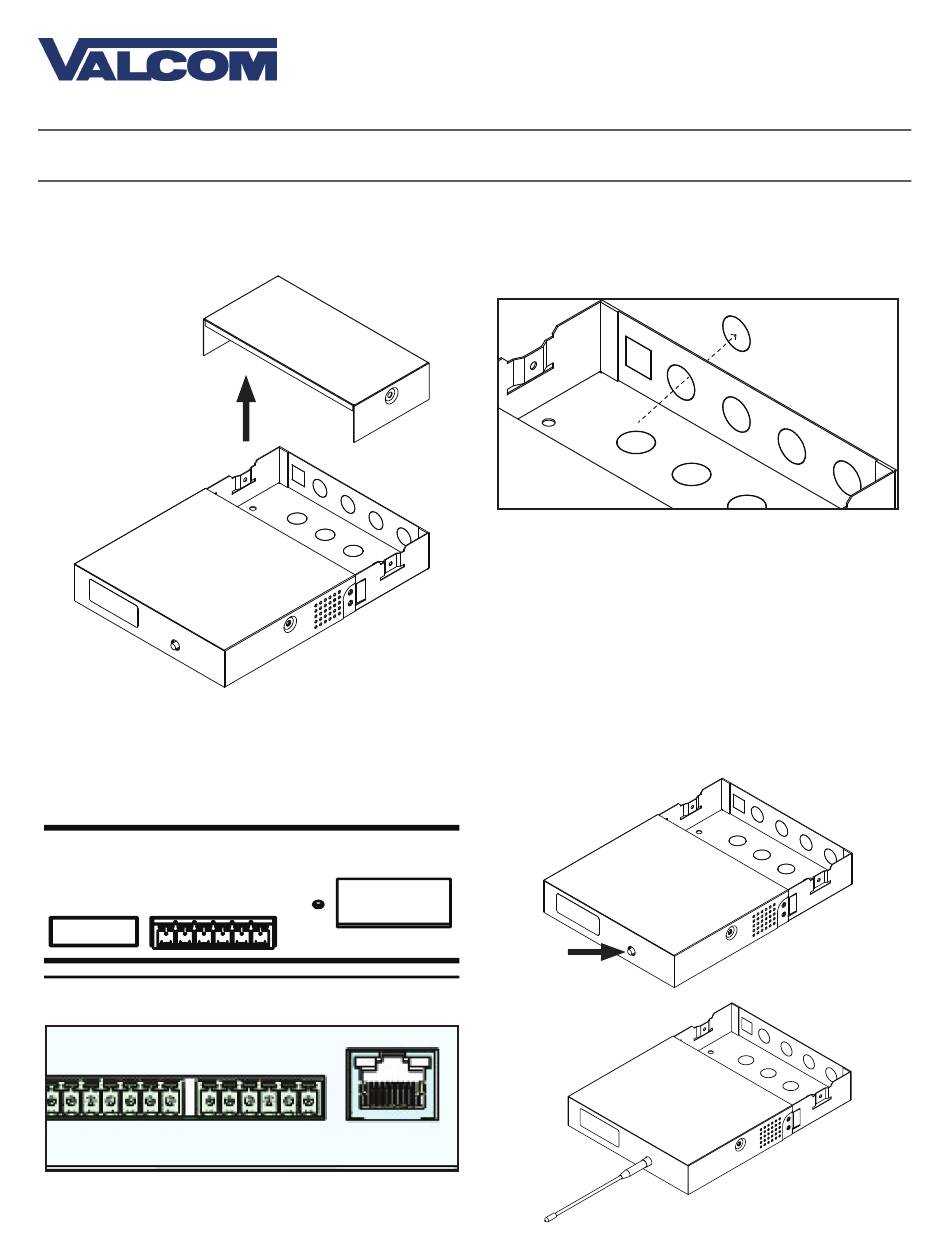

5) Unscrew the bottom panel from the
remote antenna.
7) Attach the power and signal cables to ports 1-6.
Each cable should run to the identically numbered
port on the master clock.
Remote Antenna:
6 5 4 3 2 1
Master Clock:
6 5 4 3 2 1
5
7
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
6) Remove at least one metal punch-out from the
bottom of the remote antenna and thread the
power/communication cables through the hole.
8) Attach the antenna to the output port on top of
the device.
P. 540-563-2000
F. 540-362-9800
www.valcom.com
6
8
