Connections Call Recorder Single Digital
Connections Call Recorder Single Digital
Connections Call Recorder Single Digital
Connections Call Recorder Single Digital

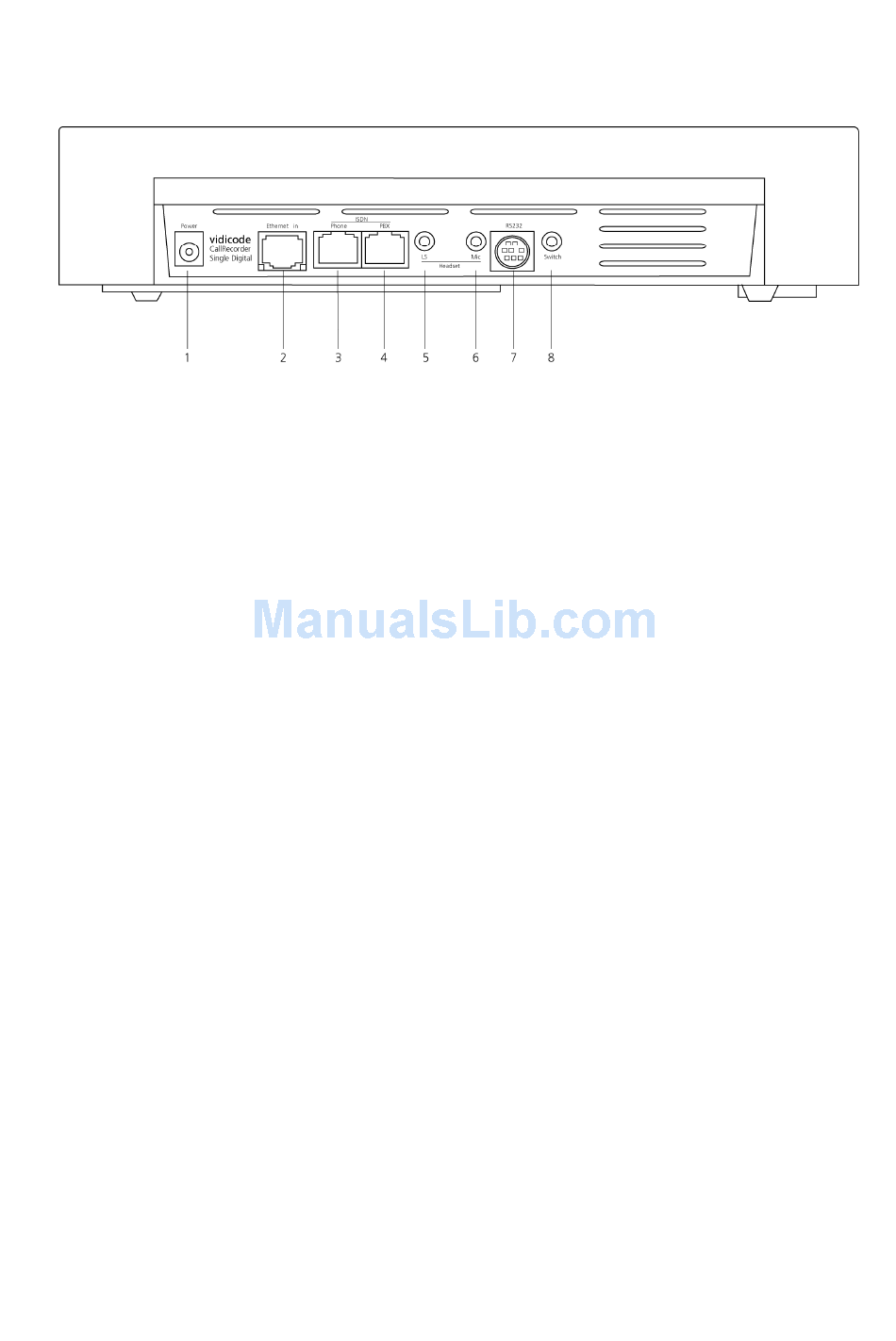

1.
Power
2.
Ethernet / LAN
3.
RJ45 and RJ11: 2/4 wire digital out (= to Phone / ISDN NT)
4.
RJ45 and RJ11: 2/4 wire digital in (= from PBX / ISDN TE) *
5.
Loudspeaker
6.
Microphone
7.
RS-232 for maintenance
8.
Switch input
* When using ISDN, use a cable less than 50meter for this connection.
