Industrial Electronic Devices
PROFIBUS:

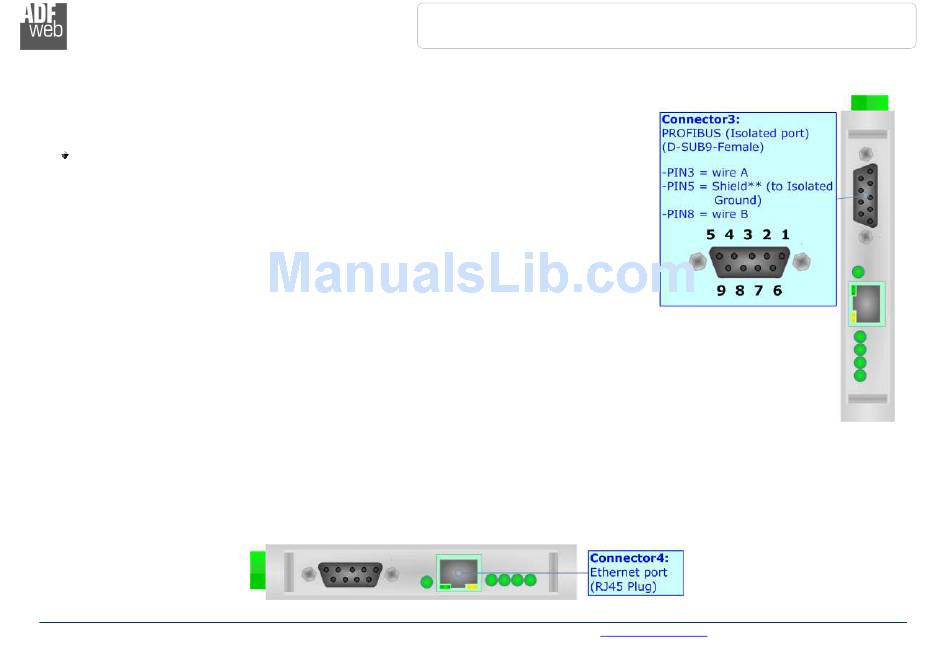

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS Cable.
ETHERNET:
The Ethernet connection must be made using Connector4 of HD67579-A1 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFIBUS Master / Modbus TCP Slave - Converter
Document code: MN67579_ENG
INFO:
www.adfweb.com
Revision 2.002
Page 10 of 32
