Industrial Electronic Devices
User Manual
Revision 2.002
English
PROFIBUS Master / Modbus TCP Slave
- Converter
( Order Code: HD67579-A1 )
for Website information:
www.adfweb.com/?Product=HD67579
for Price information:
www.adfweb.com/?Price=HD67579-A1
Benefits and Main Features:
Very easy to configure
Industrial temperature range:
-40°C / 85°C (-40°F / 185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFIBUS Master / Modbus TCP Slave - Converter
Document code: MN67579_ENG
For others PROFIBUS devices, see also the following links:
PROFIBUS Slave from/to ...
www.adfweb.com?Product=HD67045
www.adfweb.com?Product=HD67053
www.adfweb.com?Product=HD67551
www.adfweb.com?Product=HD67552
www.adfweb.com?Product=HD67553
www.adfweb.com?Product=HD67554
www.adfweb.com?Product=HD67555
www.adfweb.com?Product=HD67561
www.adfweb.com?Product=HD67562
www.adfweb.com?Product=HD67563
www.adfweb.com?Product=HD67564
www.adfweb.com?Product=HD67565
PROFIBUS Master from/to ...
www.adfweb.com?Product=HD67575
www.adfweb.com?Product=HD67577
www.adfweb.com?Product=HD67580
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 2.002
Page 1 of 32
(... Serial)
(... M-Bus Master)
(... CANopen)
(... CAN)
(... J1939)
(... DeviceNet Slave)
(... DeviceNet Master)
(... Modbus Master)
(... Modbus Slave)
(... Ethernet Server)
(... Modbus TCP Client)
(... Modbus TCP Server)
(... Ethernet)
(... CAN)
(... Modbus Slave)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web PROFIBUS Master
Summary of Contents for ADF Web PROFIBUS Master

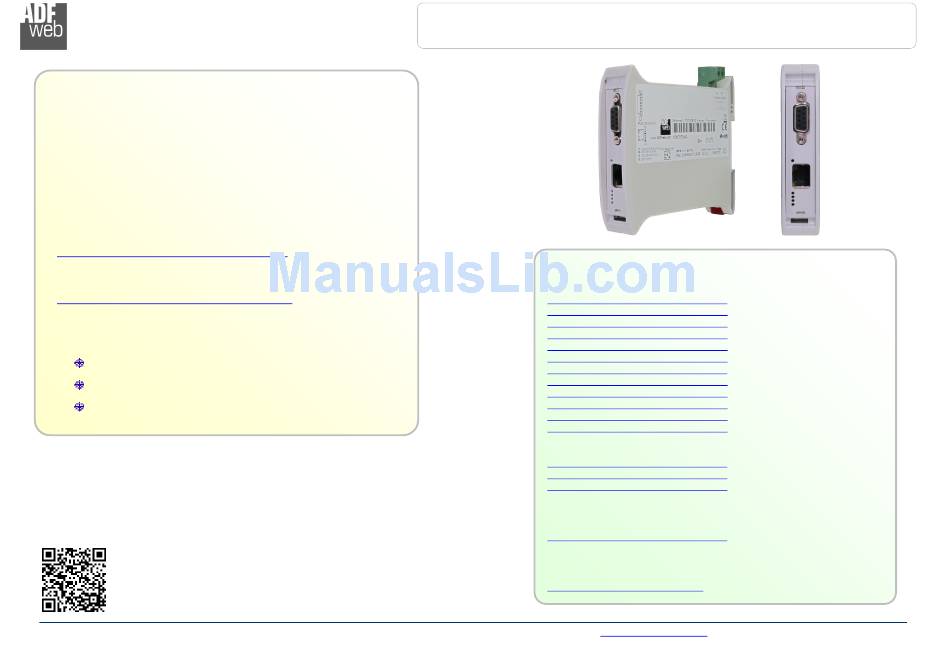

- Page 1 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 1 of 32 Industrial Electronic Devices User Manual Revision 2.002 English PROFIBUS Master / Modbus TCP Slave - Converter ( Order Code: HD67579-A1 ) for Website information: www.adfweb.com/?Product=HD67579...
-
Page 2: Table Of Contents
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX... -
Page 3: Security Alert
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Examples Of Connection
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67579-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com... -
Page 6: Characteristics
Page 6 of 32 Industrial Electronic Devices CHARACTERISTICS: The configurable “PROFIBUS Master / Modbus TCP Slave - Converter” allows the following characteristics: Triple isolation between Modbus/PROFIBUS, Modbus/Power Supply, PROFIBUS/Power Supply. Mountable on 35mm Rail DIN; Power Supply 8...24V AC or 12...35V DC;... -
Page 7: Power Supply
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 7 of 32 Industrial Electronic Devices POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. -
Page 8: Function Modes
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 8 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’: The first, with Dip2 in Off position (factory setting), is used for the normal working of the device. -
Page 9: Leds
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 9 of 32 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. -
Page 10: Profibus
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 10 of 32 Industrial Electronic Devices PROFIBUS: The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure. -
Page 11: Use Of Compositor Sw67579
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 11 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67579: To configure the Converter, use the available software that runs with Windows called SW67579. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “PROFIBUS Master / Modbus TCP Slave - Converter” in order to configure another device in the same manner, it is necessary to maintain the folder and all its contents;... -
Page 13: Software Options
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 13 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 14: Set Communication
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 14 of 32 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameter of two buses, PROFIBUS and Modbus TCP. By pressing the “Set... -
Page 15: Profibus Network
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 15 of 32 Industrial Electronic Devices PROFIBUS NETWORK: By pressing the “PROFIBUS Network” button from the main window for SW67579 (Fig. 2) the window “PROFIBUS Network” (Fig. 4) appears. -
Page 16: Master Profibus Options
MASTER PROFIBUS OPTIONS: By pressing the “Master PROFIBUS Options” button from the “PROFIBUS Network” window (Fig. 4) the “PROFIBUS Master Options” window appears (Fig. 5). In this window is possible to set the WatchDog Time for the PROFIBUS Slaves. Figure 5: “PROFIBUS Master Options” window Note: Fact1 and Fact2 could be write in decimal o hexadecimal (with prefix “0x”... -
Page 17: Profibus Device
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 17 of 32 Industrial Electronic Devices PROFIBUS DEVICE: By pressing the “Add Slave PROFIBUS” and “Modify Slave PROFIBUS” button (or double click above an existent PROFIBUS Slave) from the “PROFIBUS Network”... - Page 18 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 18 of 32 Industrial Electronic Devices ODULE ELECTION The section “Module Selection” is used to select which Modules are present in the Slave (Fig. 7).
- Page 19 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 19 of 32 Industrial Electronic Devices By pressing the “Manual Module” button from the “PROFIBUS Device” window (Fig. 6) the “Add Module Manually” window appears (Fig. 8).
- Page 20 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 20 of 32 Industrial Electronic Devices ARAMETERS The section “User Parameters” is used to modify the parameters of the PROFIBUS slave (Fig. 9). In this section there are: The List of all Parameters available for the PROFIBUS device (“User Parameters”) (Fig.
- Page 21 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 21 of 32 Industrial Electronic Devices By pressing the “Modify User Parameters Manually” button from the “PROFIBUS Device” window (Fig. 6) the “Add Module Manually”...
- Page 22 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 22 of 32 Industrial Electronic Devices ODULE ARAMETERS The section “Module Parameters” is used to modify the parameters of the Modules (Fig. 11). In this section there are: The List of all Module selected in the GSD file (“Available modules”) (Fig.
- Page 23 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 23 of 32 Industrial Electronic Devices APABILITIES The section “Capabilities” is used only to show which features/baudrates available in the PROFIBUS device. The Green Icon indicate that capability/baudrate is available, the Red Icon indicate no compatibilities with that capability/baudrate (Fig.
- Page 24 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 24 of 32 Industrial Electronic Devices PTIONS The section “Options” is used to enable some option for each PROFIBUS device (Fig. 13). The means of the fields are: In the field “Enable...
-
Page 25: Update Device
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 25 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device;... - Page 26 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 26 of 32 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67579 device.
-
Page 27: Modbus Map
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 27 of 32 Industrial Electronic Devices MODBUS MAP: On Modbus side, the map is created automatically. In relation to the configuration defined, it is possible to have two different maps. Each PROFIBUS Slave will be mapped into a different virtual Modbus ID (in relation to the field “ID Slave Modbus”... - Page 28 User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 28 of 32 Industrial Electronic Devices Read with Input Register / Status Function enabled Data in reading: Type Address Function Description Input Bytes 0-1 of PROFIBUS side...
-
Page 29: Mechanical Dimensions
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 29 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 16: Mechanical dimensions scheme ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 30: Order Code
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 30 of 32 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67579 – A 1... -
Page 31: Disclaimer
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. -
Page 32: Warranties And Technical Support
User Manual PROFIBUS Master / Modbus TCP Slave - Converter Document code: MN67579_ENG Revision 2.002 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com.
