Industrial Electronic Devices
User Manual
Revision 1.000
English

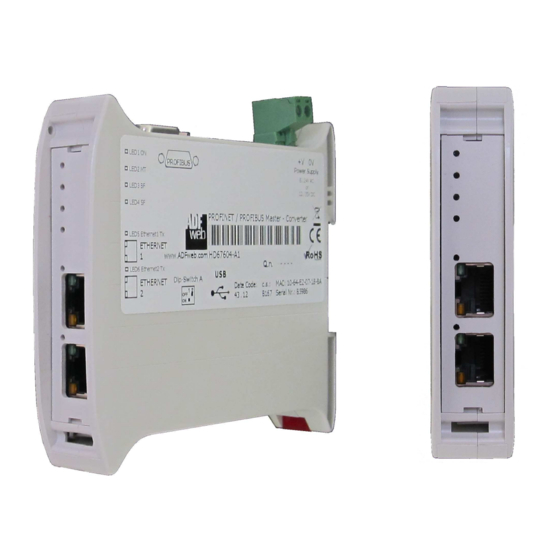

PROFINET Master / Serial - Converter
(Order Code: HD67B70-232-A1, HD67B70-485-A1,
HD67B70-422-A1)
for Website information:
http://www.adfweb.com/?Product=HD67B70
for Price information:
http://www.adfweb.com/?Price=HD67B70-232-A1
http://www.adfweb.com/?Price=HD67B70-485-A1
http://www.adfweb.com/?Price=HD67B70-422-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFINET Master / Serial
Document code: MN67B70_ENG
Revision 1.000
For others PROFINET Master devices, see also the following links:
PROFINET Master from/to ...
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B71
www.adfweb.com?Product=HD67B72
www.adfweb.com?Product=HD67B73
www.adfweb.com?Product=HD67B74
www.adfweb.com?Product=HD67B75
www.adfweb.com?Product=HD67B76
www.adfweb.com?Product=HD67B77
www.adfweb.com?Product=HD67B78
www.adfweb.com?Product=HD67B79
www.adfweb.com?Product=HD67B80
www.adfweb.com?Product=HD67B81
www.adfweb.com?Product=HD67B82
www.adfweb.com?Product=HD67B84
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 31
(OPC UA Server)
(Modbus Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(Modbus TCP Slave)
(SNMP Agent)
(EtherNet/IP Slave)
(KNX)
(MQTT)
(BACnet Slave)
(IEC 61850 Server)
(Ethernet)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web PROFINET Master HD67B70-232-A1
Summary of Contents for ADF Web PROFINET Master HD67B70-232-A1

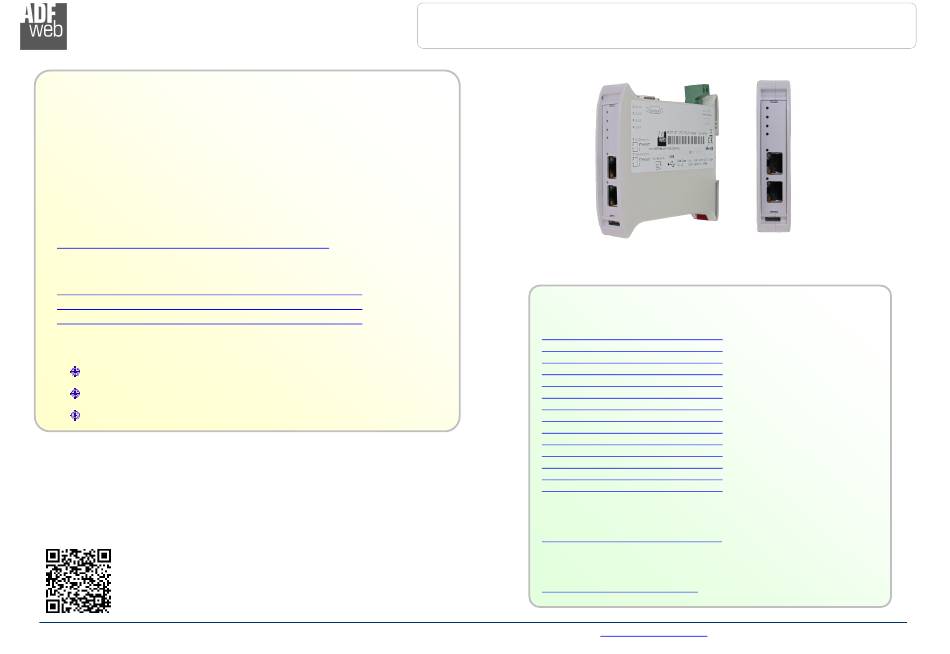

- Page 1 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET Master / Serial - Converter (Order Code: HD67B70-232-A1, HD67B70-485-A1, HD67B70-422-A1) for Website information: http://www.adfweb.com/?Product=HD67B70 for Price information: http://www.adfweb.com/?Price=HD67B70-232-A1 For others PROFINET Master devices, see also the following links: http://www.adfweb.com/?Price=HD67B70-485-A1...
-
Page 2: Updated Documentation
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 4 of 31 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67B70-232-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 6 of 31 Industrial Electronic Devices Figure 1b: Connection scheme for HD67B70-485-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 7 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 7 of 31 Industrial Electronic Devices Figure 1c: Connection scheme for HD67B70-422-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 8 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 8 of 31 Industrial Electronic Devices CHARACTERISTICS: The HD67B70-xxx-A1 is a PROFINET Master / Serial converter. It allows the following characteristics: Triple isolation between Serial - Power Supply, Serial - Ethernet, Ethernet - Power Supply; Up to 4096 bytes in reading and 4096 bytes in writing;...
-
Page 9: Power Supply
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 9 of 31 Industrial Electronic Devices POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax... -
Page 10: Function Modes
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 10 of 31 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. - Page 11 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 11 of 31 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
- Page 12 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 12 of 31 Industrial Electronic Devices ETHERNET: The Ethernet connection must be made using Connector3 or Connector4 of HD67B70-xxx-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
- Page 13 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 13 of 31 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;...
- Page 14 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 14 of 31 Industrial Electronic Devices RS422: For terminating the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure. The maximum length of the cable should be 1200m (4000 feet).
- Page 15 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 15 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67B70: To configure the Converter, use the available software that runs with Windows called SW67B70. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 16: New Configuration / Open Configuration
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 16 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “PROFINET Master / Serial - Converter”... -
Page 17: Software Options
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 17 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 18 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 18 of 31 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 19: Set Communication
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 19 of 31 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, PROFINET and Serial. By Pressing the “Set Communication” button from the main window for SW67B70 (Fig. 2) the window “Set Communication”... - Page 20 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 20 of 31 Industrial Electronic Devices PROFINET ACCESS: By Pressing the “PROFINET Access” button from the main window for SW67B70 (Fig. 2) the window “Definition of PROFINET Devices Present in Network”...
- Page 21 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 21 of 31 Industrial Electronic Devices The means of the fields below are: If the field “Name of Station” is checked, the name of the PROFINET slave is defined; In the field “IP Address”...
- Page 22 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 22 of 31 Industrial Electronic Devices By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET slave device. The window “Definition Module and/or Submodules of PROFINET Device”...
-
Page 23: Update Device
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 23 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 24 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 24 of 31 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B70 device. Warning: If Fig.
-
Page 25: Serial Protocol
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 25 of 31 Industrial Electronic Devices SERIAL PROTOCOL: In order to read and write the data from PROFINET side, it is enough to send some simple commands over serial port. Reading data by PROFINET slave: this command allows to read all the data from a specific PROFINET slave. - Page 26 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 26 of 31 Industrial Electronic Devices Reading data by PROFINET module: this command allows to read a specific module from a specific PROFINET slave. Request: Byte Number Description ‘R’...
- Page 27 User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 27 of 31 Industrial Electronic Devices Writing data to PROFINET slaves: this command allows to write the data to a specific PROFINET slave. Request: Byte Number Description ‘W’ (0x57) ‘.’...
-
Page 28: Mechanical Dimensions
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 28 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67B70-xxx-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 29: Ordering Informations
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 29 of 31 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67B70 - xxx – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting... -
Page 30: Other Regulations And Standards
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 31: Warranties And Technical Support
User Manual PROFINET Master / Serial Document code: MN67B70_ENG Revision 1.000 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
