Industrial Electronic Devices
User Manual
Revision 1.000
English
EnOcean / PROFIBUS Slave - Converter
(Order Code: HD67C75-B2)
For Website information:
www.adfweb.com?Product=HD67C75-B2
For Price information:
www.adfweb.com?Price=HD67C75-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EnOcean / PROFIBUS Slave
Document code: MN67C75_ENG
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C50
www.adfweb.com?Product=HD67C52
www.adfweb.com?Product=HD67C54
www.adfweb.com?Product=HD67C56
www.adfweb.com?Product=HD67C57
www.adfweb.com?Product=HD67C58
www.adfweb.com?Product=HD67C61
www.adfweb.com?Product=HD67C63
www.adfweb.com?Product=HD67C65
www.adfweb.com?Product=HD67C66
www.adfweb.com?Product=HD67C67
www.adfweb.com?Product=HD67C70
www.adfweb.com?Product=HD67C72
www.adfweb.com?Product=HD67C73
www.adfweb.com?Product=HD67C77
www.adfweb.com?Product=HD67C79
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 25
(Serial)
(Modbus Slave)
(Modbus TCP Slave)
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(EtherNet/IP Slave)
(IEC61850 Server)
(J1939)
(KNX)
(MQTT)
(NMEA 0183)
(NMEA 2000)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web EnOcean
Summary of Contents for ADF Web EnOcean

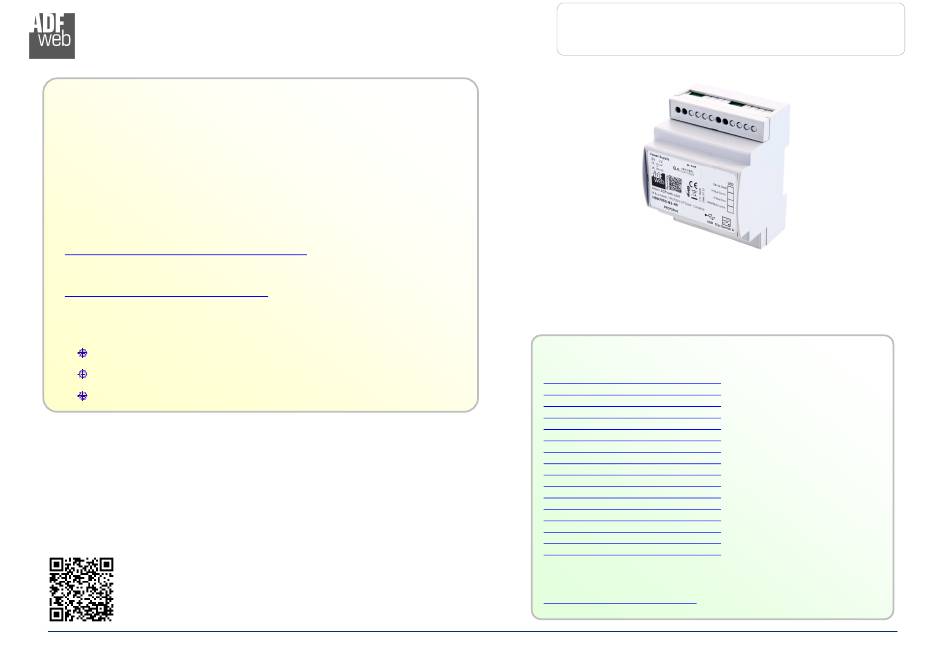

- Page 1 (Order Code: HD67C75-B2) For Website information: www.adfweb.com?Product=HD67C75-B2 For Price information: www.adfweb.com?Price=HD67C75-B2 Benefits and Main Features: For others EnOcean products, see also the following links: Very easy to configure Converter EnOcean to Power Supply 18…35V DC and 8…24 V AC www.adfweb.com?Product=HD67C50 (Serial) www.adfweb.com?Product=HD67C52...
-
Page 2: Table Of Contents
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 2 of 25 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is:... -
Page 3: Security Alert
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 3 of 25 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 4 of 25 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 5 of 25 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67C75-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
Revision 1.000 Page 6 of 25 Industrial Electronic Devices CHARACTERISTICS: The HD67C75-B2 is a EnOcean / PROFIBUS Slave Converter. It allows the following characteristics: Electrical isolation between Ethernet and Power Supply; Mountable on 35mm Rail DIN; Wide power supply input range: 12…35V DC and 8…24V AC;... -
Page 7: Power Supply
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 7 of 25 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin... -
Page 8: Function Modes
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 8 of 25 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. -
Page 9: Leds
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 9 of 25 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. -
Page 10: Ethernet
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 10 of 25 Industrial Electronic Devices ETHERNET: The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67C75-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 11: Enocean
EnOcean is based on wireless communication on 868.3 MHz ASK. It is possible to connect up to 100 EnOcean devices to a single converter, where up to 32 can be in Secure Mode and up to 19 with Smart Acknowledge. -
Page 12: Use Of Compositor Sw67C75
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 12 of 25 Industrial Electronic Devices USE OF COMPOSITOR SW67C75: To configure the Converter, use the available software that runs with Windows called SW67C75. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “EnOcean / PROFIBUS Slave - Converter” in order to configure another device in the same manner, it is necessary to maintain the folder and all its contents;... -
Page 14: Software Options
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 14 of 25 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 15 of 25 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 16 of 25 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67C75 (Fig. 2) the window “Set Communication” appears (Fig. 3). -
Page 17: Enocean Access
By Pressing the “EnOcean Set Access” button from the main window for SW67C75 (Fig. 2) the window “EnOcean Set Access” appears (Fig. 4). This section is used to define the list of the EnOcean devices to read/write. Figure 4: “EnOcean Access” window... - Page 18 Page 18 of 25 Industrial Electronic Devices By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics. The window “Add/Modify EnOcean device” appears (Fig. 5). The means of the fields are: In the field “Device...
-
Page 19: File Gsd
Page 19 of 25 Industrial Electronic Devices By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID. The window “Add/Modify EnOcean variable” appears (Fig. 6). The means of the EEP fields are: In the field “Rorg”... -
Page 20: Update Device
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 20 of 25 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 21 User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 21 of 25 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67C75 device. Warning: If Fig.
-
Page 22: Mechanical Dimensions
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 22 of 25 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67C75-B2 ADFweb.com S.r.l. -
Page 23: Ordering Informations
Connectors Type 2: Fixed Screw Terminal Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67C77: EnOcean / PROFIBUS Slave - Converter Order Code: HD67C75-B2 EnOcean / PROFIBUS Slave – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 24: Disclaimer
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 24 of 25 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. -
Page 25: Warranties And Technical Support
User Manual EnOcean / PROFIBUS Slave Document code: MN67C75_ENG Revision 1.000 Page 25 of 25 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com...
