Short-Pitch RFID Labels

Printronix defines Short-Pitch labels as those with RFID inlays that have a pitch from 1.0 to 2.0 inches. The
RFID inlay is short in length, and is constructed into an item level label that permits inlay encoding and
provides the required but limited space to print text, graphics, barcodes or logos.

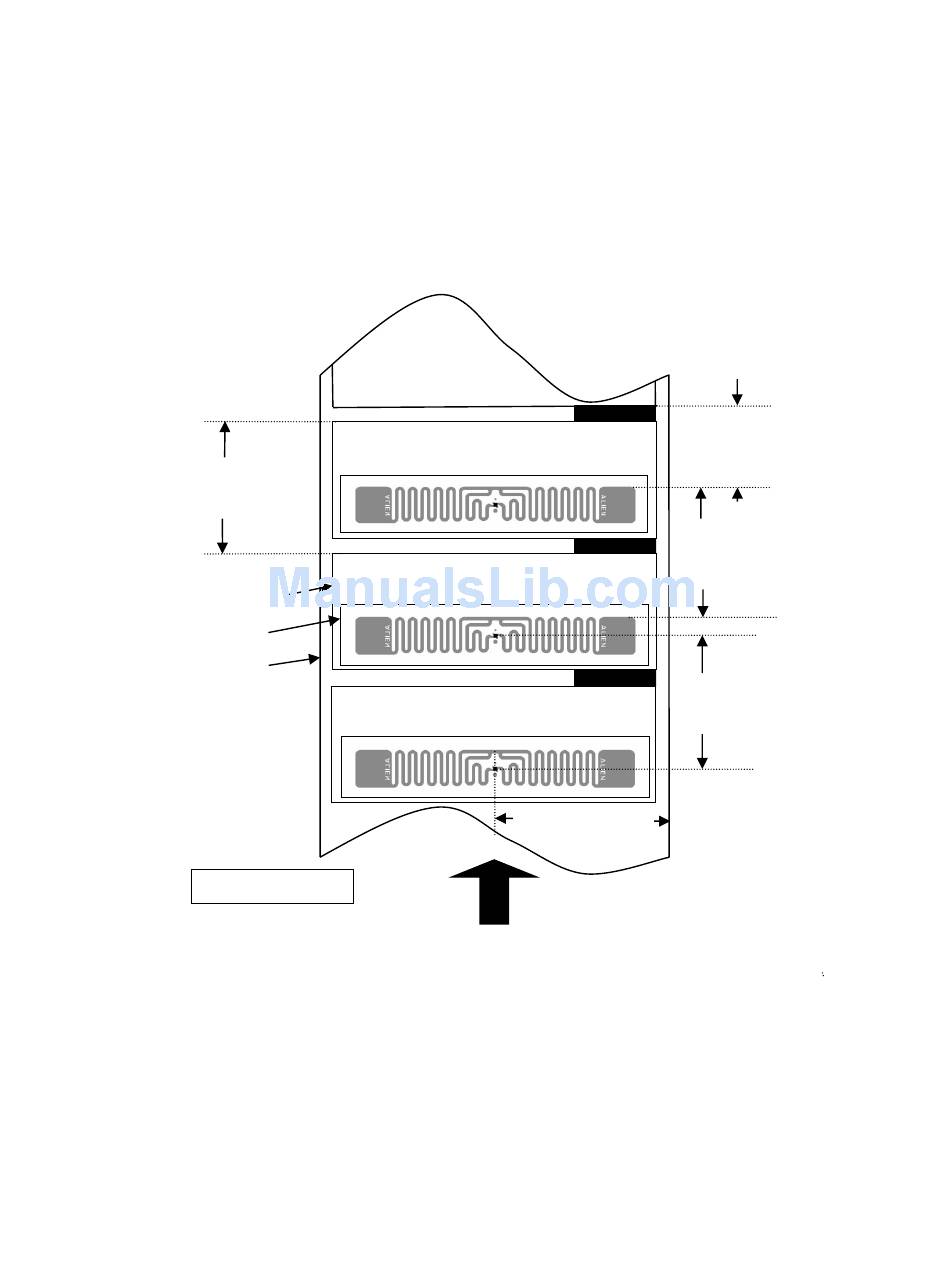

NOTE: Figure 6 shows a section from a roll of Short-Pitch labels and the variety of reference points that can
be used to determine the pitch (in this case one-inch pitch).
1" Pitch Leading Edge of
One Label to the Leading
Edge of the Next Label
Inlay Outline
Label Side View
Short-Pitch Label Configuration Using Alien 9730 Squiglette Inlay
RFID Inlay Position & Pitch Reference Points
Label
Liner
Figure 6 Sample Short-Pitch Label Section
Inboard Liner to Chip
Center = 1.575 Inches
Label Direction
Through Printer
TOF (leading edge of
black mark) to the
Leading Edge of Foil
= 0.60 Inches
1" Pitch - Leading
Edge of One Inlay Foil
to the Leading Edge of
the Next Inlay Foil
1" Pitch - Distance
from One IC to the
Next IC
