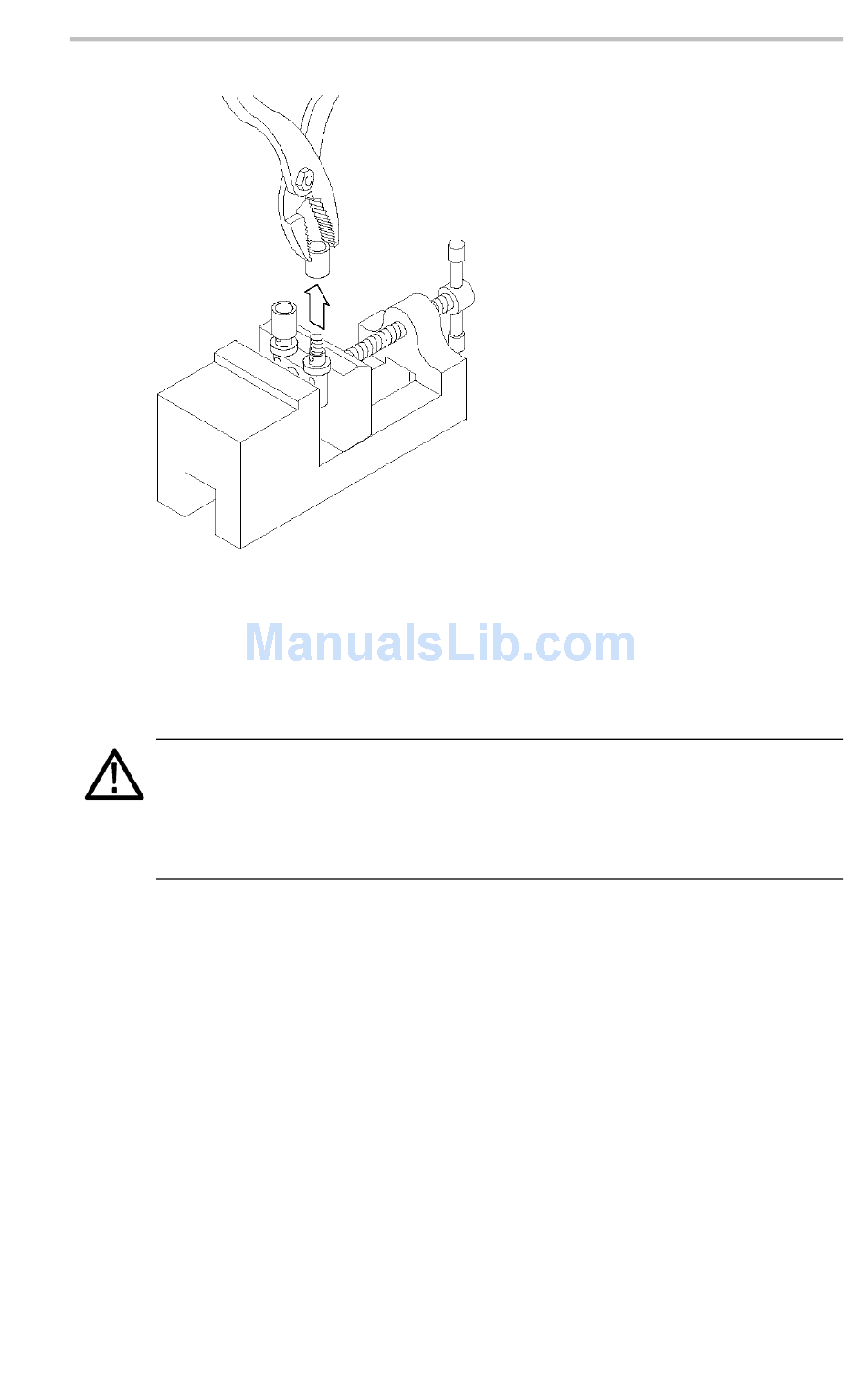

Figure 6: Removing plastic covers from binding posts
Setup
WARNING.
the inputs of the P5200 probe. Because this adapter has exposed metal
surfaces, only qualified personnel should perform any testing with voltage
levels exceeding 30 V rms. All pertinent safety rules and guidelines for
elevated voltage measurements should be followed and adhered to.
1.
Connect the output of the probe to the Channel 3 of the test
oscilloscope. Let the probe warm up for 20 minutes.
2.
Connect the 9 VDC output plug of the AC adapter to the input jack
of the probe, and then connect the AC adapter to the correct line
voltage. The green power LED on the probe should light.
3.
Make a copy of the test record to tabulate the test results. (See
Table 7 on page 28.)
P5200 Instruction Manual
These procedures require the application of high voltage to
Performance Verification
23
