Performance Verification
Table 6: List of equipment required (cont.)
Description
Coaxial cables
(2 required)
Termination
Construction of Modified BNC Adapter
Construct the modified BNC Adapter from a BNC-male-to-dual binding
post adapter, Tektronix part number 103-0035-00. (See Figure 5.)

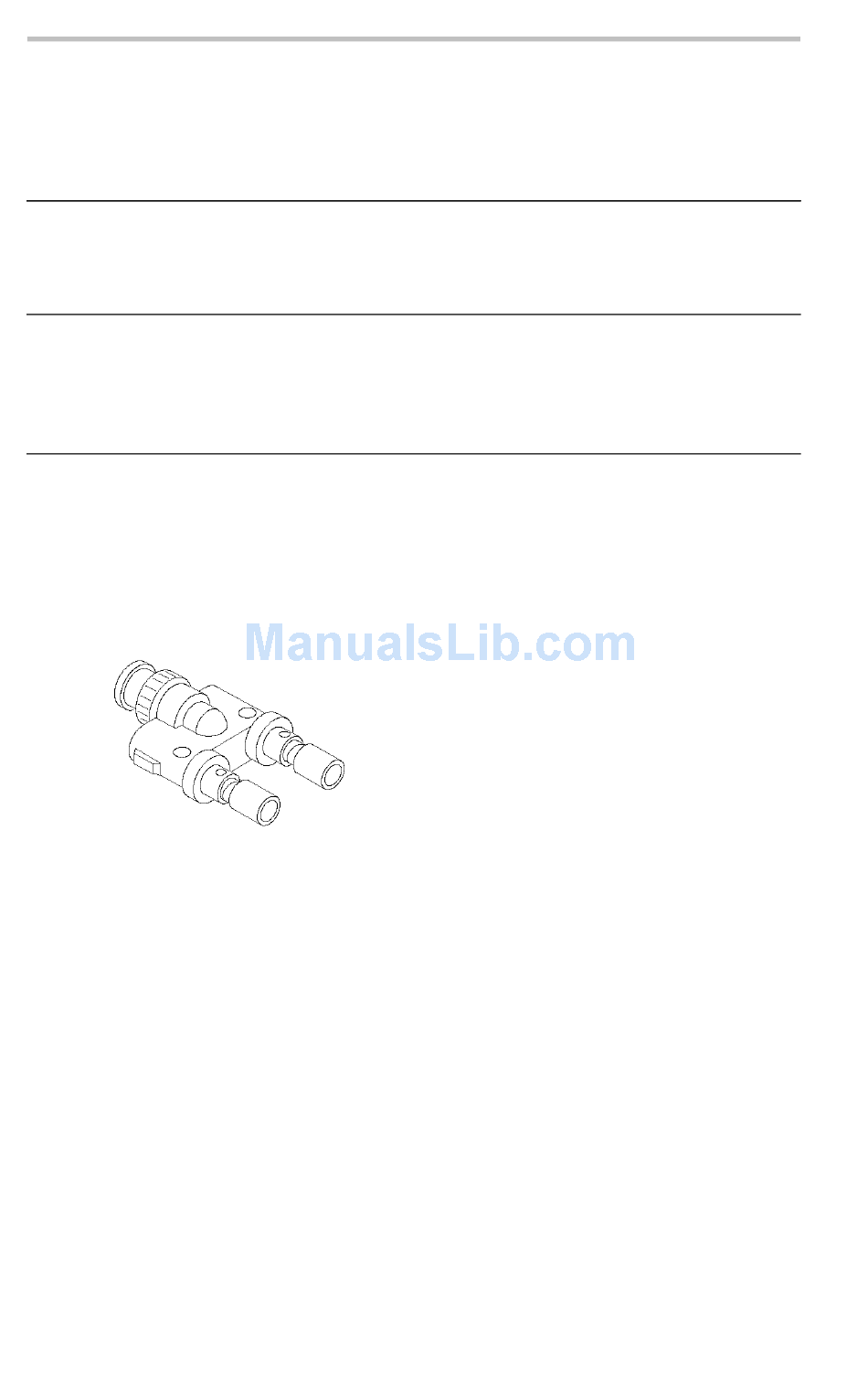

Figure 5: BNC-male-to-dual binding post adapter
To expose the posts that you will connect the P5200 High-Voltage
Differential probe leads to, remove the black and red plastic post covers
of the BNC-male-to-dual adapter. Use a pair of pliers and a vise to
remove the plastic covers. (See Figure 6.)
22
Minimum
requirements
36 in (0.9144 m),
precision 50 Ω
50 Ω precision
feed through
Example or part
number
012-0482-00
011-0049-01
P5200 Instruction Manual
Purpose
Interconnection
between
oscilloscope and
generator
Interconnection
between probe
and generator
during rise time
measurements
