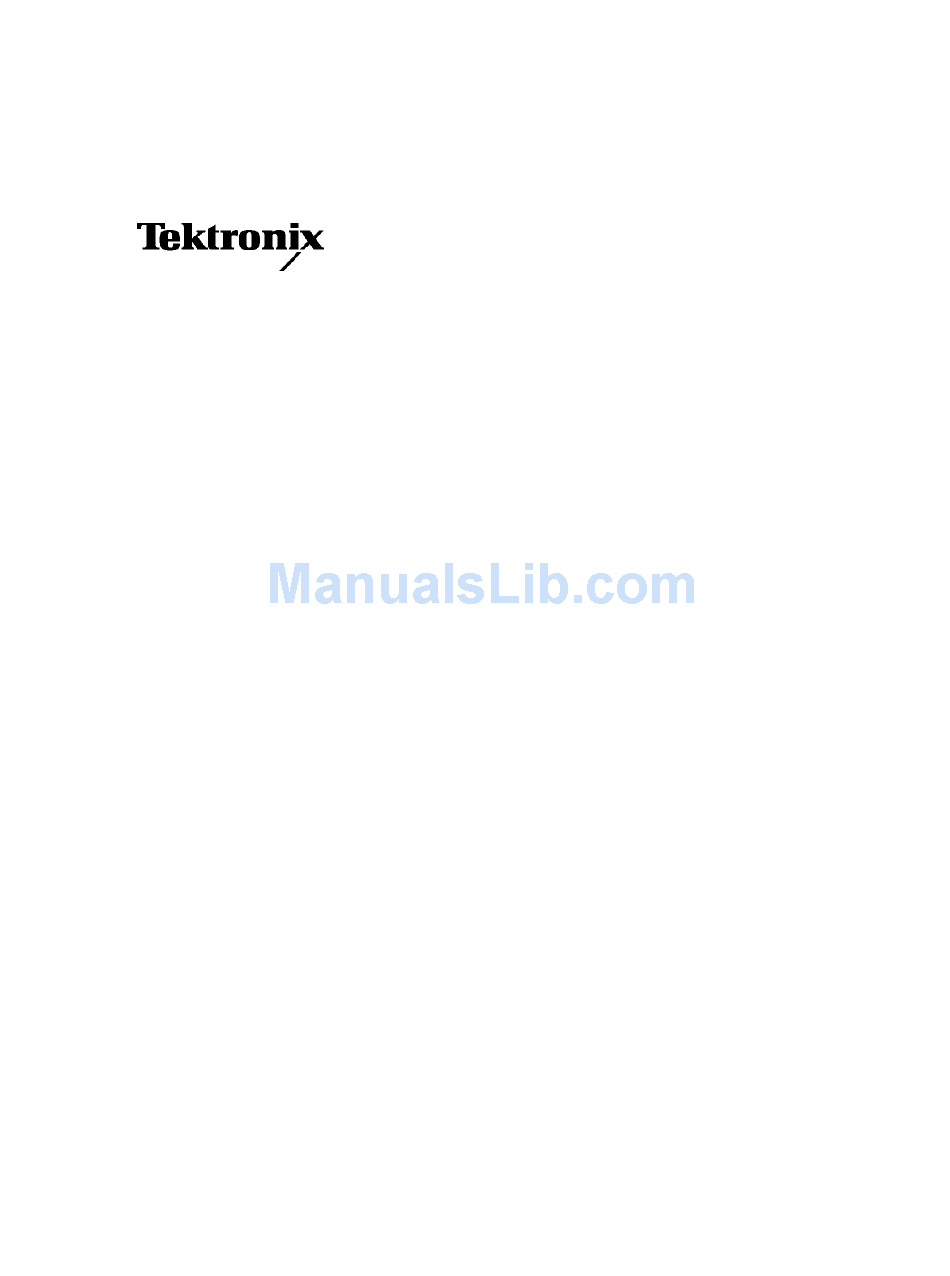

  • Page 1 Instruction Manual P5200 High Voltage Differential Probe 070-9018-02 www.tektronix.com...
  • Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077 TEKTRONIX, TEK, and TEKPROBE are registered trademarks of Tektronix, Inc.
  • Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 5: Table Of Contents

    Replaceable Parts ........P5200 Instruction Manual...
  • Page 6 ......Using the Replaceable Parts List ......P5200 Instruction Manual...

  • Page 7: General Safety Summary

    Only qualified personnel should perform service procedures. Observe Maximum Working Voltage Do not use the P5200 High Voltage Differential Probe above CAT II from ground on either input or ± 1,300 V 1,000 V (DC + peak AC) between the leads.
  • Page 8 CAUTION indicates a hazard to property including the product. Symbols on the Product. These symbols may appear on the product: Double Protective Ground CAUTION WARNING Insulated (Earth) Terminal Refer to Manual High Voltage P5200 Instruction Manual...

  • Page 9: Service Safety Summary

    Use Care When Servicing with Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. P5200 Instruction Manual...

  • Page 10: Contacting Tektronix

    This phone number is toll free in North America. After office hours, please leave a voice mail message. Outside North America, contact a Tektronix sales office or distributor; see the Tektronix web site for a list of offices. P5200 Instruction Manual...

  • Page 11: Features And Accessories

    Features and Accessories The P5200 High Voltage Differential Probe in Figure 1 provides a safe means of measuring circuits with floating potentials up to 1,000 V CAT II from earth ground and up to 1,300 V (DC + peak AC) differential. The probe converts floating signals to a low-voltage, ground-referenced signal for display on any oscillo- scope or other measurement instrument.
  • Page 12 Features and Accessories Figure 1: P5200 High Voltage Differential Probe P5200 Instruction Manual...
  • Page 13 Features and Accessories The P5200 has several features and accessories that make probing and measurement a simpler task. Take a moment to familiarize yourself with these items and their uses. Power Indicator. The power indicator lights green to show that power from the AC adapter is present.
  • Page 14 AC Adapter. The adapter converts AC line voltage to 9 VDC for the probe power supply. NOTE. The AC adapter that accompanies the P5200 probe is the only adapter specified for this probe. Using any other adapter voids the product warranty and may also produce electromagnetic interference.

  • Page 15: Getting Started

    Getting Started To safely install and functionally check the P5200 High Voltage Differential Probe, follow the procedures in this section. Installation Install the P5200 probe as follows: 1. Connect the output of the probe to the BNC input of the oscilloscope or other measurement instrument.

  • Page 16: Functional Check

    AC) between the two inputs. This voltage rating applies to both 1/50 and 1/500 settings. Functional Check To make a simple functional check of the P5200 probe, select a source that supplies AC line voltage and use the following procedure. This procedure verifies a majority of the circuitry within the probe.

  • Page 17: Operating Basics

    Operating Basics To help you use the P5200 High Voltage Differential Probe safely and effectively, this section provides important information about safety limits, operating characteristics, and probing techniques. WARNING. Due to the inherent hazards associated with taking high-voltage measurements, the product is intended for use by qualified personnel who have had the training to make these types of measurements.

  • Page 18: Minimizing Risk Of Rf Burn (Probe Leads)

    If you need to use the probe within the risk area for RF burn, power down the source before connecting or disconnecting the probe leads. Maximum Input Limits CAUTION. To avoid damaging the input circuitry of the P5200 probe, do not apply a voltage that is more than 1,000 V CAT II between either input and ground or more than 1,300 V (DC + peak AC) between the two inputs.

  • Page 19: Operating Characteristics And Probing Techniques

    Operating Limits The P5200 probe has two operating ranges that you select with the ATTENUATION button on the front panel: H Select the 50X range for inputs of 0 V to 130 V (DC + peak AC).

  • Page 20: Overrange Detection

    Common-Mode Rejection The common-mode rejection ratio (CMRR) is the specified ability of P5200 High Voltage Differential Probe to reject signals that are common to both inputs. More precisely, CMRR is the ratio of the differential gain to the common-mode gain. The higher the ratio, the greater the ability of probe to reject common-mode signals.

  • Page 21: Twisting The Input Leads

    Twisting the input leads as shown in Figure 4 on page 12 helps to cancel noise that is induced into the input leads, and to improve the high frequency response of the inputs. For the best response possible, do not use the extension leads. P5200 Instruction Manual...

  • Page 22: Extension Leads

    10 MHz may not be as precise. Figure 5 on page 13 shows the effect on HF transient response. The extension leads do not affect the performance of the probe when bandwidth is set to 5 MHz. P5200 Instruction Manual...

  • Page 23: Probe Loading

    The lower the impedance of the probe relative to that of the source, the more the probe loads the circuit under test. The probe has virtually no loading effect on sources with relatively low impedance and low frequency. P5200 Instruction Manual...
  • Page 24 Operating Basics P5200 Instruction Manual...

  • Page 25: Specifications

    Specifications The specifications in Tables 2 through 6 apply to a P5200 High Voltage Differential Probe installed on a Tektronix TDS460A oscilloscope. When the probe is used with another oscilloscope, the oscilloscope must have an input impedance 1 M Ω, an input capacitance range of between 15 and 20 pF, and a bandwidth not less than 100 MHz.

  • Page 26: Certification And Compliances

    Low Voltage Directive 73/23/EEC, as amended by 93/68/EEC: EN 61010-1/A2:1995 -- Safety requirements for electrical equipment for measurement, control, and laboratory use EN 61010-2-031:1994 -- Particular requirements for hand-held probe assemblies for electrical measurement and test equipment P5200 Instruction Manual...
  • Page 27 Equipment at this level includes appliances, portable tools, and similar products. Equipment is usually cord-connected CAT I Secondary (signal level) or battery operated circuits of electronic equipment Pollution Degree 2 Do not operate in environments where conductive pollutants may be present. P5200 Instruction Manual...

  • Page 28: Typical Characteristics

    (braid and foil) that has low impedance connections to shielded connector housings at both ends. The following cables meet this criteria: GPIB: Tektronix part numbers 012-0991-00, -01, -02, -03 RS-232: Tektronix part number 012-1380-00 Printer: Tektronix part number 012-1250-00...
  • Page 29 (7.2 in × 2.6 in × 1.3 in) Dimensions, Input Leads 46 cm (18 in) Dimensions, Output Cable 1.8 m (6 ft) Unit Weight (probe only) 315 g (11 oz) Shipping Weight (with accessories) 1.42 kg (3 lb, 2 oz) P5200 Instruction Manual...

  • Page 30: Nominal Characteristics

    Table 6: Nominal Electrical Characteristics Input Type Balanced differential Output Type Single-ended, load impedance must be greater than 50 kΩ for stated accuracy Range Settings Switchable: 1/50 and 1/500 P5200 Instruction Manual...

  • Page 31: User Service

    Tektronix service center. Include the following information: name of purchaser, return address, name and phone number of a person that Tektronix may contact, date of purchase, and a description of the defect. Refer to Contacting Tektronix on page vi.
  • Page 32 User Service P5200 Instruction Manual...
  • Page 33 WARNING The following servicing instructions are for use only by qualified personnel. To avoid injury, do not perform any servicing other than that stated in the operating instructions unless you are qualified to do so. Refer to all safety summaries before performing any service.

  • Page 35: Performance Verification

    Performance Verification The following procedure verifies the warranted electrical characteris- tics of the P5200 High Voltage Differential Probe. Table 7 itemizes the equipment required, provides an example or part number of the equipment, and explains the purpose of the equipment.

  • Page 36: Construction Of Modified Bnc Adapter

    Figure 6: BNC-male-to-dual binding post adapter To expose the posts that you will connect the P5200 High- - Voltage Differential probe leads to, remove the black and red plastic post covers of the BNC- - male- - to- - dual adapter. Use a pair of pliers and a vise to remove the plastic covers, as shown in Figure 7 on page 27.

  • Page 37: Setup

    Setup WARNING. These procedures require the application of high voltage to the inputs of the P5200 probe. Because this adapter has exposed metal surfaces, only qualified personnel should perform any testing with voltage levels exceeding 40 V rms. Only qualified personnel should perform these procedures.

  • Page 38: Amplitude Accuracy

    (see Figure 8). Modified BNC adapter (+) Post (- - ) Post Banana plug of an input lead Figure 8: Slide probe leads onto the binding posts P5200 Instruction Manual...

  • Page 39: Rise Time

    BNC adapter. Refer to Figure 8 on page 28. 7. Check that the rise time is < 14 ns between the 10% and 90% points of the displayed pulse. 8. Disconnect the setup. P5200 Instruction Manual...

  • Page 40: Dc Cmrr

    6. Set the output of the calibrator to 500 V and enable the output. 7. Check that the trace on the oscilloscope shifts less than 1.6 divisions (3.3 mV) from center. 8. Disable the calibrator output and disconnect all test equipment. This completes the performance verification procedure. P5200 Instruction Manual...

  • Page 41: Replaceable Parts

    Replaceable Parts This section contains a list of the replaceable modules for the P5200 High Voltage Differential Probe. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available through your local Tektronix field office or representative.
  • Page 42 Using the Replaceable Parts List This section contains a list of the mechanical and/or electrical components that are replaceable for the P5200 probe. Use this list to identify and order replacement parts. Table 8 describes each column in the parts list.

  • Page 43: P5200 Instruction Manual

    Replaceable Parts Mfr. Code to Manufacturer Cross Index The table titled Cross Index - Mfr.Code Number to Manufacturer shows codes, names, and addresses of manufacturers or vendors of components listed in the parts list. P5200 Instruction Manual...
  • Page 44 Replaceable Parts Figure 9: P5200 High Voltage Differential Probe and replaceable accessories P5200 Instruction Manual...
  • Page 45 Replaceable Parts P5200 Instruction Manual...
  • Page 46 Replaceable Parts P5200 Instruction Manual...
