TECHNICAL
M A N U A L

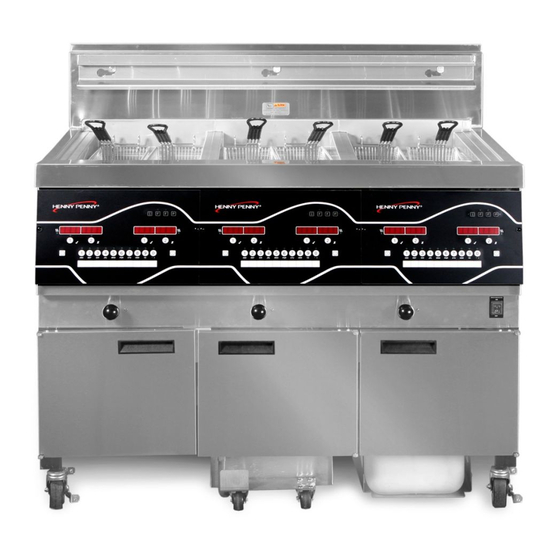

Evolution Elite™ Gas Open Fryer
MODEL
EEG-241
EEG-242
EEG-243
EEG-244
R E G I S T E R W A R R A N T Y O N L I N E AT W W W. H E N N Y P E N N Y. C O M
