7 Specifications

7.1 Clearances, Dimensions and Weights

7.1.1 Clearances

To ensure sufficient air flow for the frequency converter, observe the minimum clearances listed in Table 7.1.
When air flow is obstructed close to the frequency converter, ensure adequate inlet of cool air and exhaust of hot air from
the unit.
Enclosure
size
MH1
7 7
MH2
MH3
Table 7.1 Minimum Clearance for Cooling
1) Power ratings relate to NO, see chapter 7.2 Electrical Data.
2) The stated IP and Type rating only apply when the FCP 106 is mounted on a wall mount plate or a motor with the adapter plate. Ensure that
the gasket between the adapter plate and the motor has a protection rating corresponding to the required rating for the combined motor and
frequency converter. As standalone frequency converter, the enclosure rating is IP00 and Open type.
Enclosure size
MH1
MH2
MH3
Table 7.2 Details for Motor Adapter Plate Screws
1
1 Adapter plate
2 Screw
A Maximum depth of hole into adapter plate
B Maximum height of screw above adapter plate

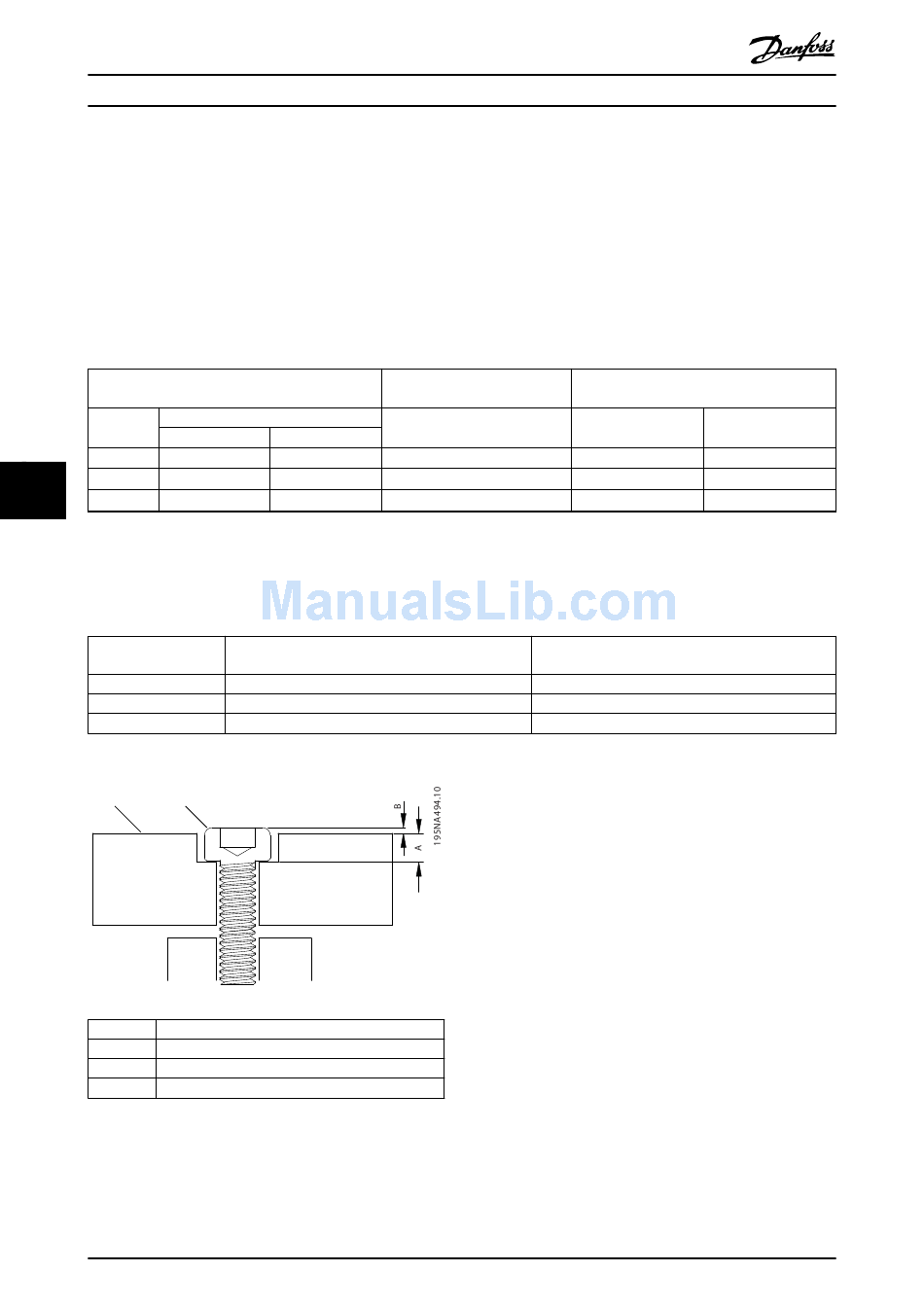

Illustration 7.1 Screws to Fasten Motor Adapter Plate
40
Enclosure
Protection rating
FCP 106 FCM 106
IP55/Type 12
IP66/Type 4X 2)
IP55/Type 12
2)
IP66/Type 4X
IP55/Type 12
IP66/Type 4X 2)
Maximum depth of hole into adapter plate (A) [mm
(in)]
2
Danfoss A/S © 11/2015 All rights reserved.
VLT® DriveMotor FCP 106/FCM 106
1)
Power
[kW (hp)]
3x380–480 V
0.55–1.5 (0.75–2.0)
2.2–4.0 (3.0–5.0)
5.5–7.5 (7.5–10)
3 (0.12)
4 (0.16)
3.5 (0.14)
Clearance at ends
[mm (in)]
Motor flange end
30 (1.2)
40 (1.6)
50 (2.0)
Maximum height of screw above adapter plate (B)
[mm (in)]
0.5 (0.02)
0.5 (0.02)
0.5 (0.02)
Cooling fan end
100 (4.0)
100 (4.0)
100 (4.0)
