Commissioning

5 Commissioning

5.1 Applying Power

5.1.1 Turn on Mains Power
Turn on mains power to power up the frequency converter.
5.1.2 Start-up
Start the frequency converter.
At the first power-up with LCP connected, select the
preferred language. Once selected, this screen does not
appear again in the following power-ups. To change
language at a later stage, go to parameter 0-01 Language.
Select Language
[ 0 ] English
Setup 1
Illustration 5.1 Select Language

5.2 Local Control Panel Operation

NOTICE
The frequency converter can also be programmed from a
PC via the RS485 COM port by installing the MCT 10 Set-
up Software.
The LCP is divided into 4 functional sections.
A. Alphanumeric display.
B. Menu selection.
C. Navigation keys and indicator lights (LEDs).
D. Operation keys and indicator lights (LEDs).
MG03L302
Operating Instructions
1
2
4
6
7
10
15
16
17

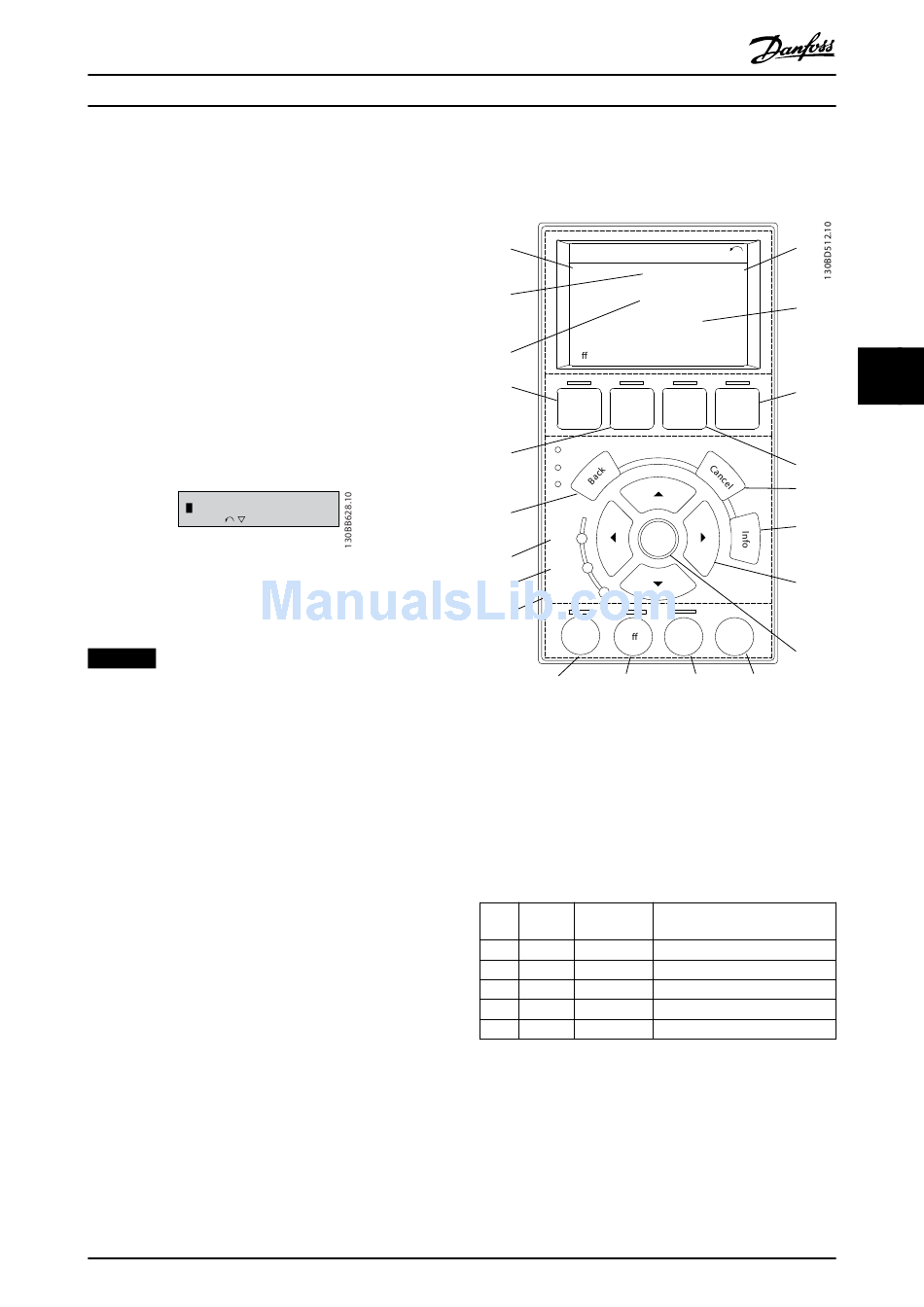

Illustration 5.2 Local Control Panel (LCP)
A. Display area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or a
24 V DC external supply.
The information shown on the LCP can be customized for
user application. Select options in the Quick Menu Q3-13
Display settings.
Call- Display
out
1 1.1
2 1.2
3 1.3
4 2
5 3
Table 5.1 Legend to Illustration 5.2
Danfoss A/S © 11/2015 All rights reserved.
Status
0.00 A
0.0 % 0.00 kW
0.0Hz
A
2605 kWh
O Remote Stop
Quick Main
Status
B
Menu Menu
C
On
OK
Warn.
Alarm
D Hand Auto
O
on on
18 19 20
Parameter Default setting
number
0-20 Reference %
0-21 Motor current
0-22 Power [kW]
0-23 Frequency
0-24 kWh counter
3
1(1)
5
5
9
Alarm
Log
8
11
12
13
Reset
14
21
29
5
