Commissioning

5.3 Memory Module MCM 101

®
The VLT Memory Module MCM 101 is a small memory
plug containing data such as:
•
Firmware.
•
SIVP file.
•
Pump table.
•
Motor database.
•
Parameter lists.
The frequency converter comes with the module installed
from the factory.
1
1 ®
VLT Memory Module MCM 101

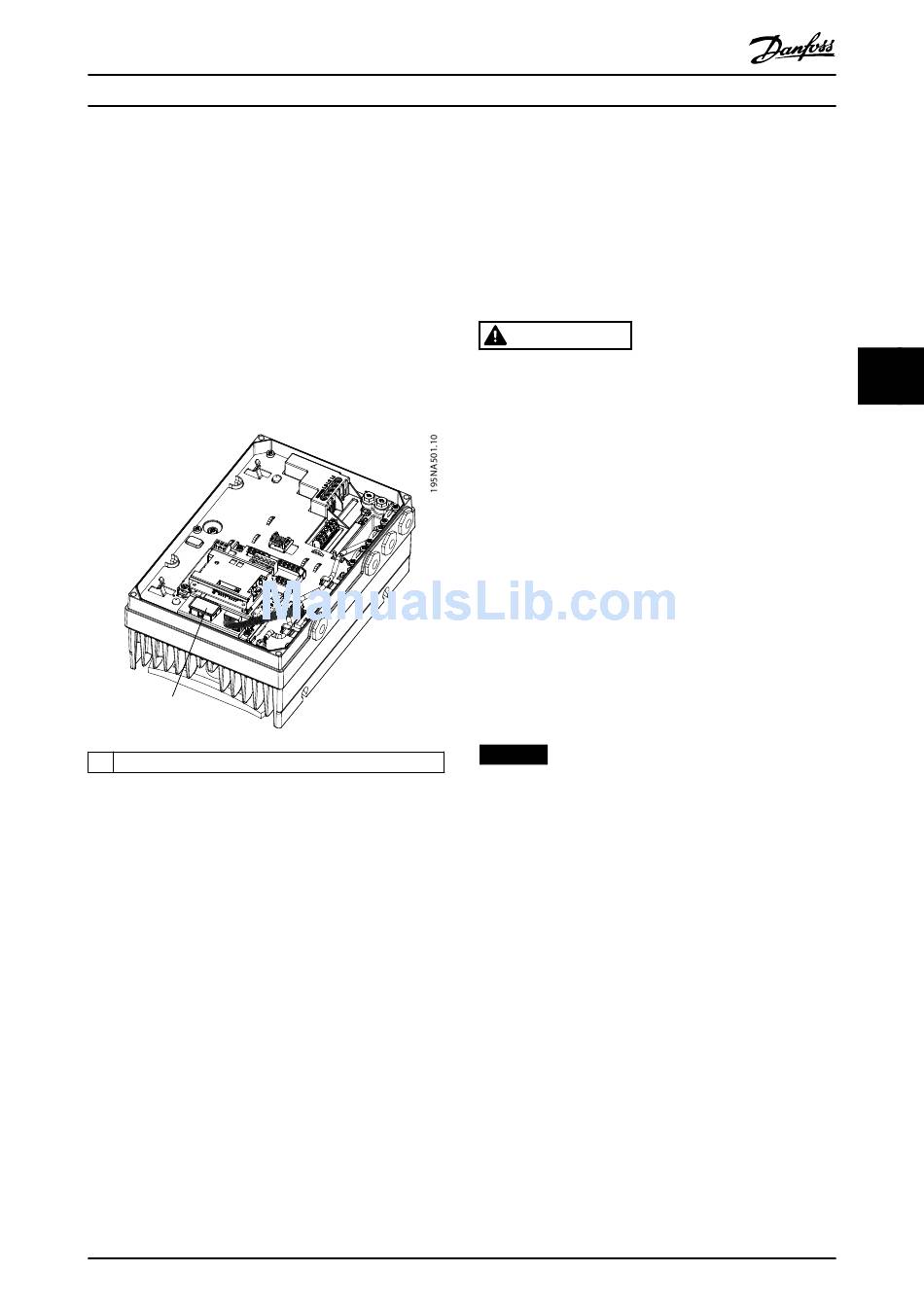

Illustration 5.4 Location of Memory Module
If the memory module becomes defect, it does not prevent
the frequency converter from working. The warning LED
on the lid flashes, and a warning shows in the LCP (if
installed).
Warning 206, Memory module indicates that either a
frequency converter runs without a memory module, or
that the memory module is defect. To see the exact reason
for the warning, refer to parameter 18-51 Memory Module
Warning Reason.
A new memory module can be ordered as a spare part.
Ordering number: 134B0791.
MG03L302
Operating Instructions
5.3.1 Configuring with the VLT
Module MCM 101
When replacing or adding a frequency converter to a
system, it is easy to transfer existing data to the new
frequency converter. However, the frequency converters
must be of the same power size and with compatible
hardware.
WARNING
DISCONNECT POWER BEFORE SERVICING!
Before performing repair work, disconnect the frequency
converter from AC mains. After mains has been discon-
nected, wait 4 minutes for the capacitors to discharge.
Failure to follow these steps can result in death or
serious injury.
1.
2.
3.
4.
5.
6.
7.
NOTICE
The first power-up takes approximately 3 minutes.
During this time, all data is transferred to the new
frequency converter.

5.4 Basic Programming

This manual explains initial set-up only. For full parameter
lists, refer to the VLT
Programming Guide.
At initial start-up, the frequency converter enters the start-
up wizard for open-loop applications, see
chapter 5.4.1 Configuration for Open-loop Applications.
Once the start-up wizard has completed, the following
extra set-up wizards and instructions are available:
•
•
•
For general instructions on how to change parameter
settings, refer to chapter 5.4.4 Changing Parameter Settings.
Danfoss A/S © 11/2015 All rights reserved.
Remove the lid from a frequency converter
containing a memory module.
Unplug the memory module.
Place and tighten the lid.
Remove the lid from the new frequency
converter.
Insert the memory module in the new/other
frequency converter and leave it in.
Place and tighten the lid on the new frequency
converter.
Power up the frequency converter.
®
DriveMotor FCP 106 and FCM 106
Chapter 5.4.2 Set-up Wizard for Closed-loop
Applications.
Chapter 5.4.3 Quick Menu Motor Set-up.
Chapter 5.4.5 Thermistor Set-up.
®
Memory
