Mechanical Installation
3.3.3 Prepare Adapter Plate
The adapter plate is available with or without pre-drilled
holes.
3
3
For adapter plate with no pre-drilled holes, refer to
Illustration 3.3.
Area 1

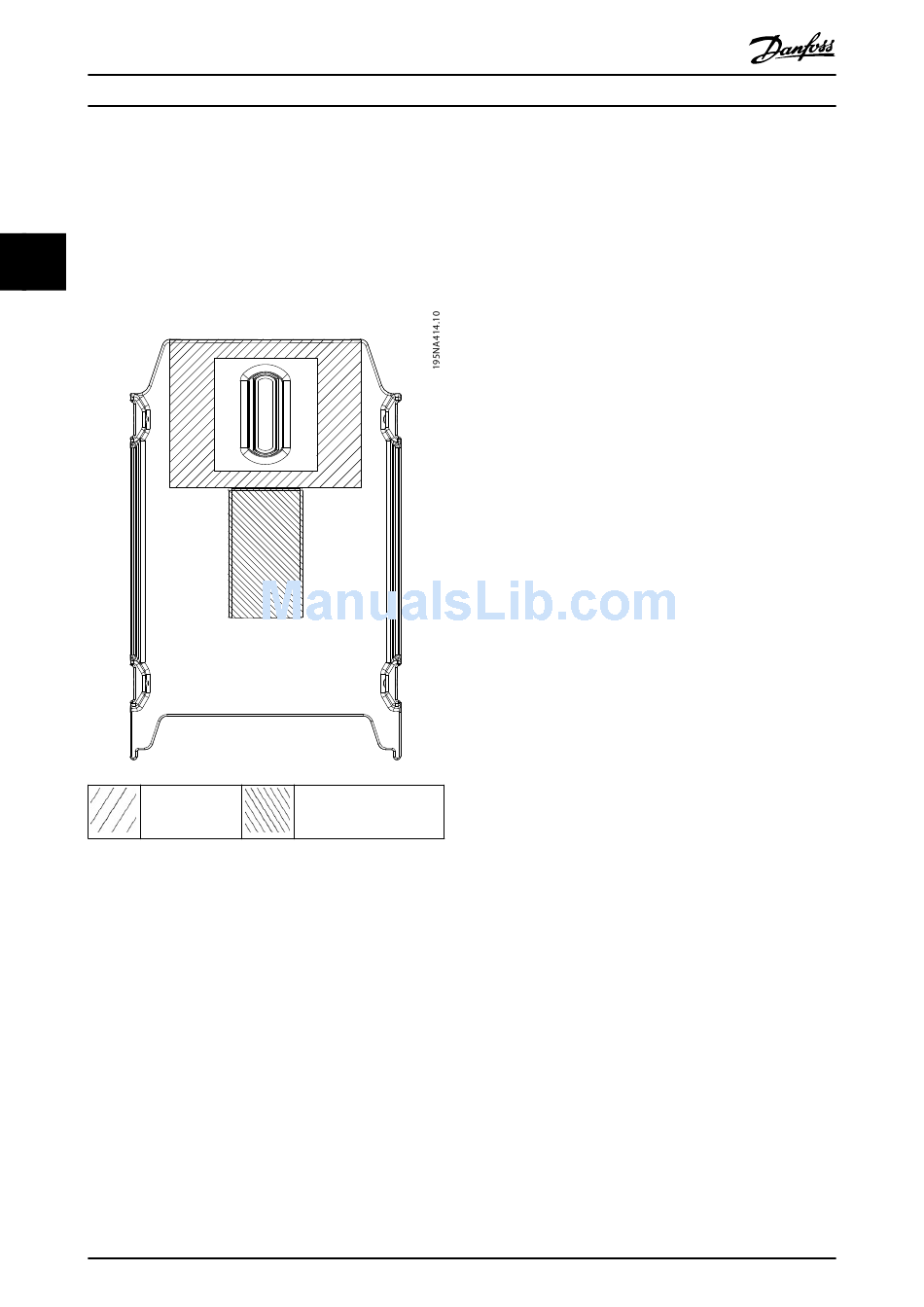

Illustration 3.3 Adapter Plate, Guide for Drilling Holes
14
VLT® DriveMotor FCP 106/FCM 106
Area 2
Danfoss A/S © 11/2015 All rights reserved.
When the adapter plate has no holes, drill them as follows:
•
4 holes within area 1, for fastening adapter plate
to motor (required).
•
1 hole within area 2, for a lifting lug (optional).
•
Make allowance for countersunk screws.
For adapter plate with pre-drilled holes, no extra holes are
required. Pre-drilled holes are specific for FCM 106 motors
only.
MG03L302
