4.1.12 FC 51 De-coupling Plate Mounting Instruction for M4 and M5

Step 1

Mount metal plate on and fasten with two screws.

Tightening torque: 2 Nm.

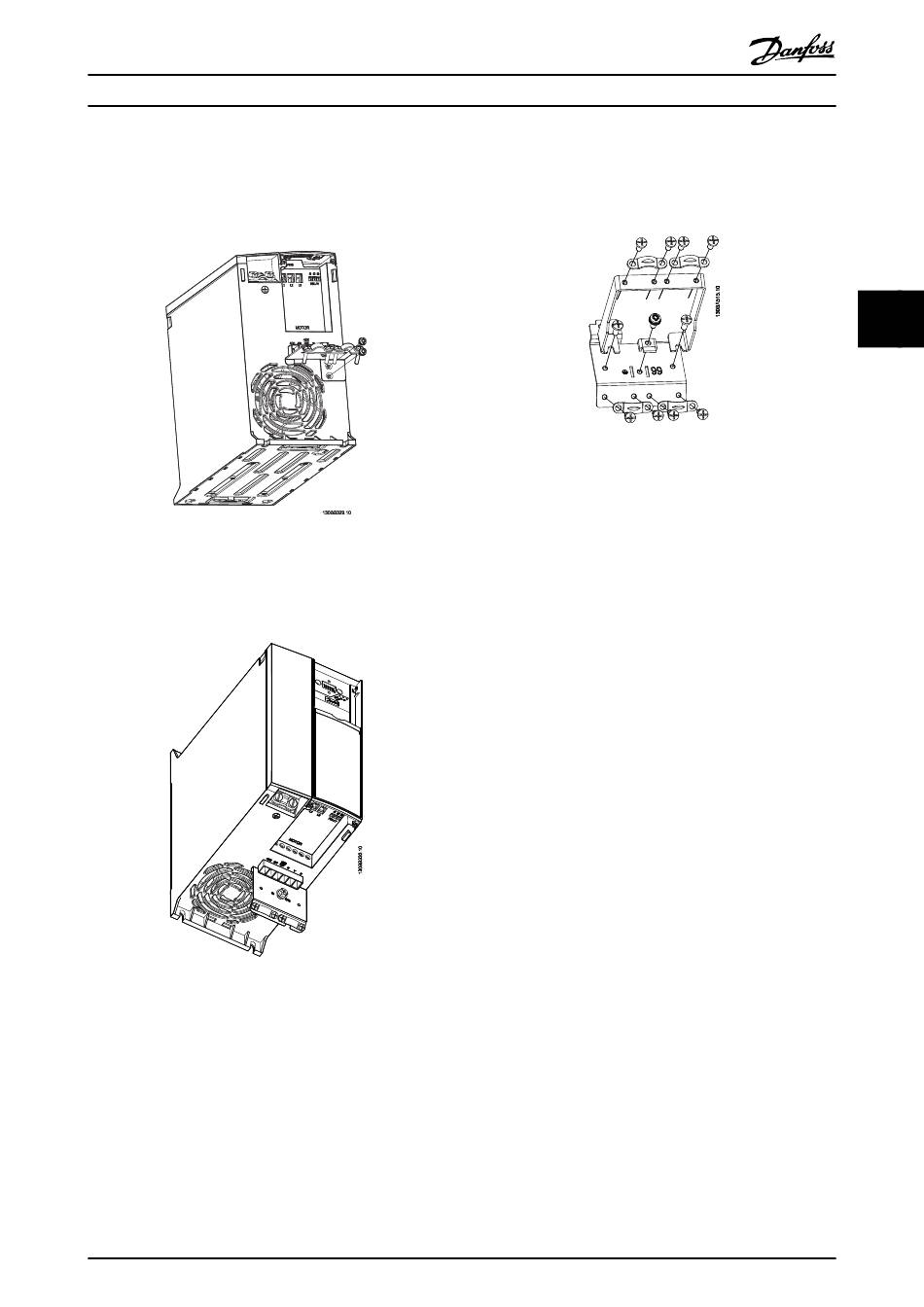

Illustration 4.25

Step 2

VLT

Micro frequency converter FC 51 mounted with de-

coupling plate.

Illustration 4.26

Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

VLT

Micro Drive FC 51 Design Guide

Step 3

Mount bracket on de-coupling plate.

Illustration 4.27

MG02K202 - VLT

is a registered Danfoss trademark
