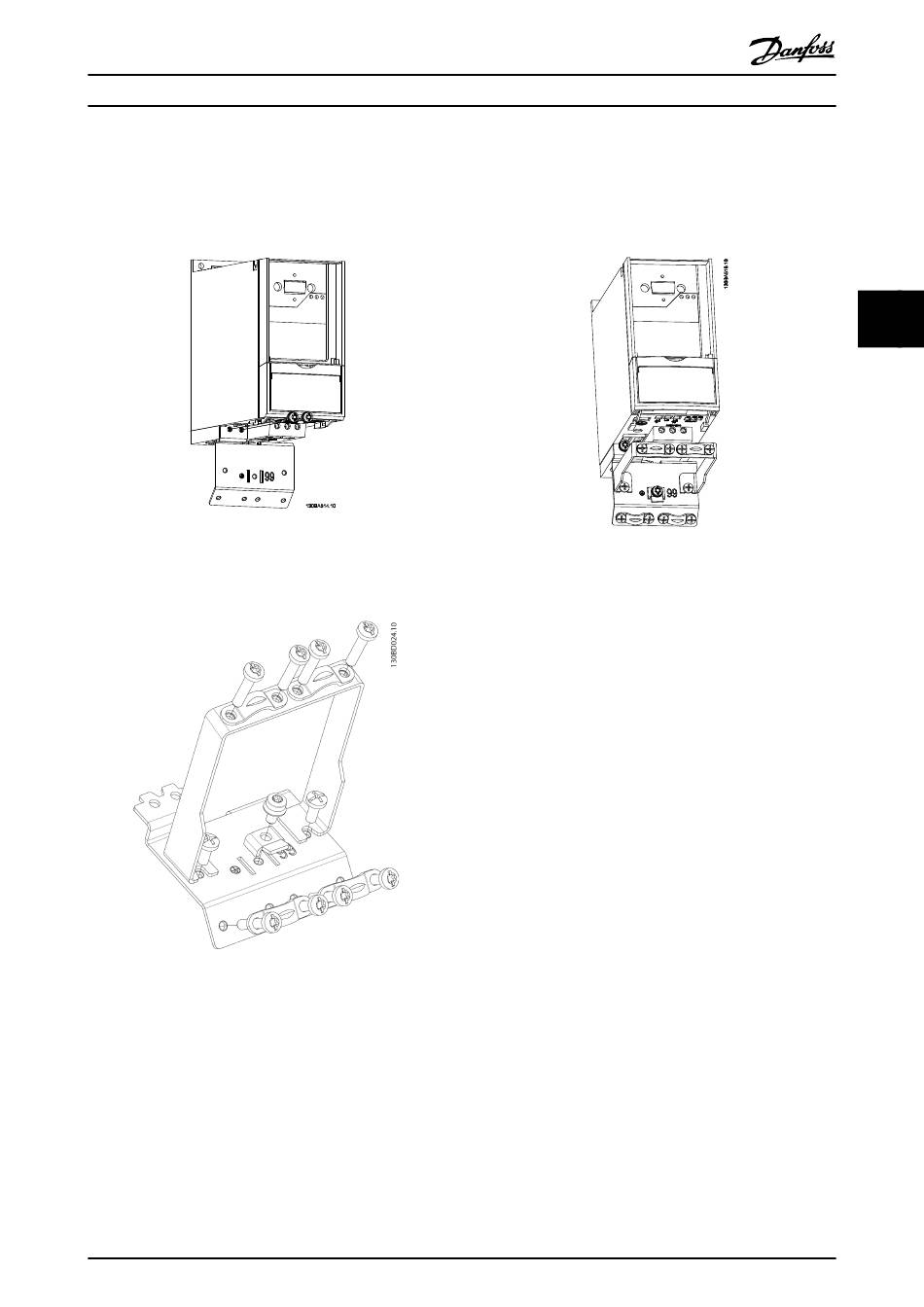

4.1.10 FC 51 De-coupling Plate Mounting Instruction for M1 and M2
Step 1
Mount metal plate on frequency converter and fasten with
two screws. Tightening torque: 2 Nm.
Illustration 4.19
Step 2
Mount bracket on de-coupling plate.
Illustration 4.20
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
®
VLT
Micro Drive FC 51 Design Guide
Step 3
VLT
coupling plate.
Illustration 4.21
®
MG02K202 - VLT
is a registered Danfoss trademark
®
Micro frequency converter FC 51 mounted with de-
4
4
35
