AXEL LITE Hardware Manual
4
Mechanical specifications
This chapter describes the mechanical characteristics of the AXEL LITE
module.
4.1
Board Layout
The following figure shows the physical dimensions of the AXEL LITE
module:
● Board width: 43.18 mm
Mechanical drawings are available in DXF format from the Axel
page on DAVE Embedded Systems website
(http://www.dave.eu/products/axel-lite)

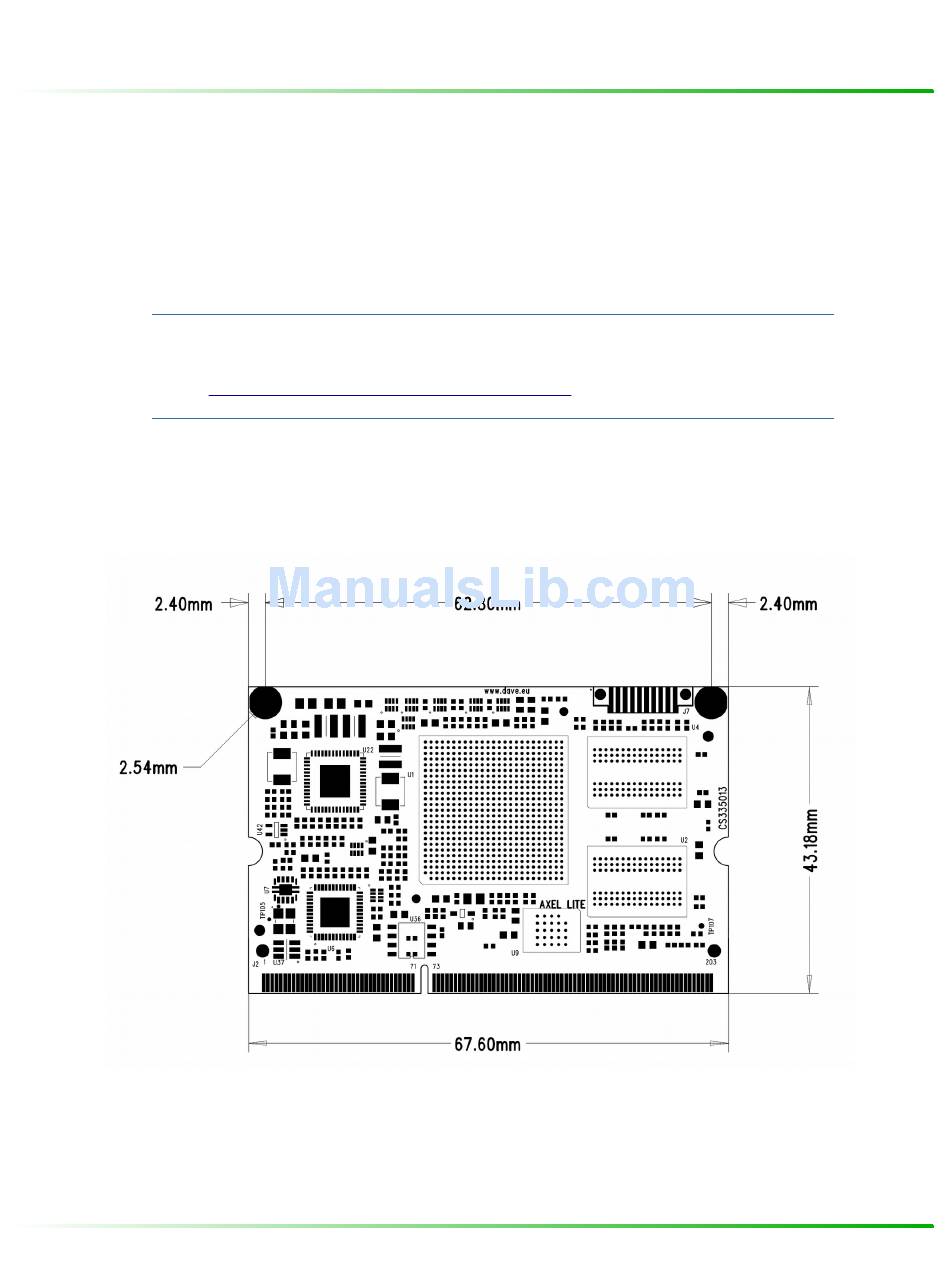

Fig. 4: Board layout - Top view
October, 2016
v. 0.9.5
21/63
