A x e l H a r d w a r e M a n u a l
4
Mechanical specifications
This chapter describes the mechanical characteristics of the AXEL
module.
4.1
Board Layout

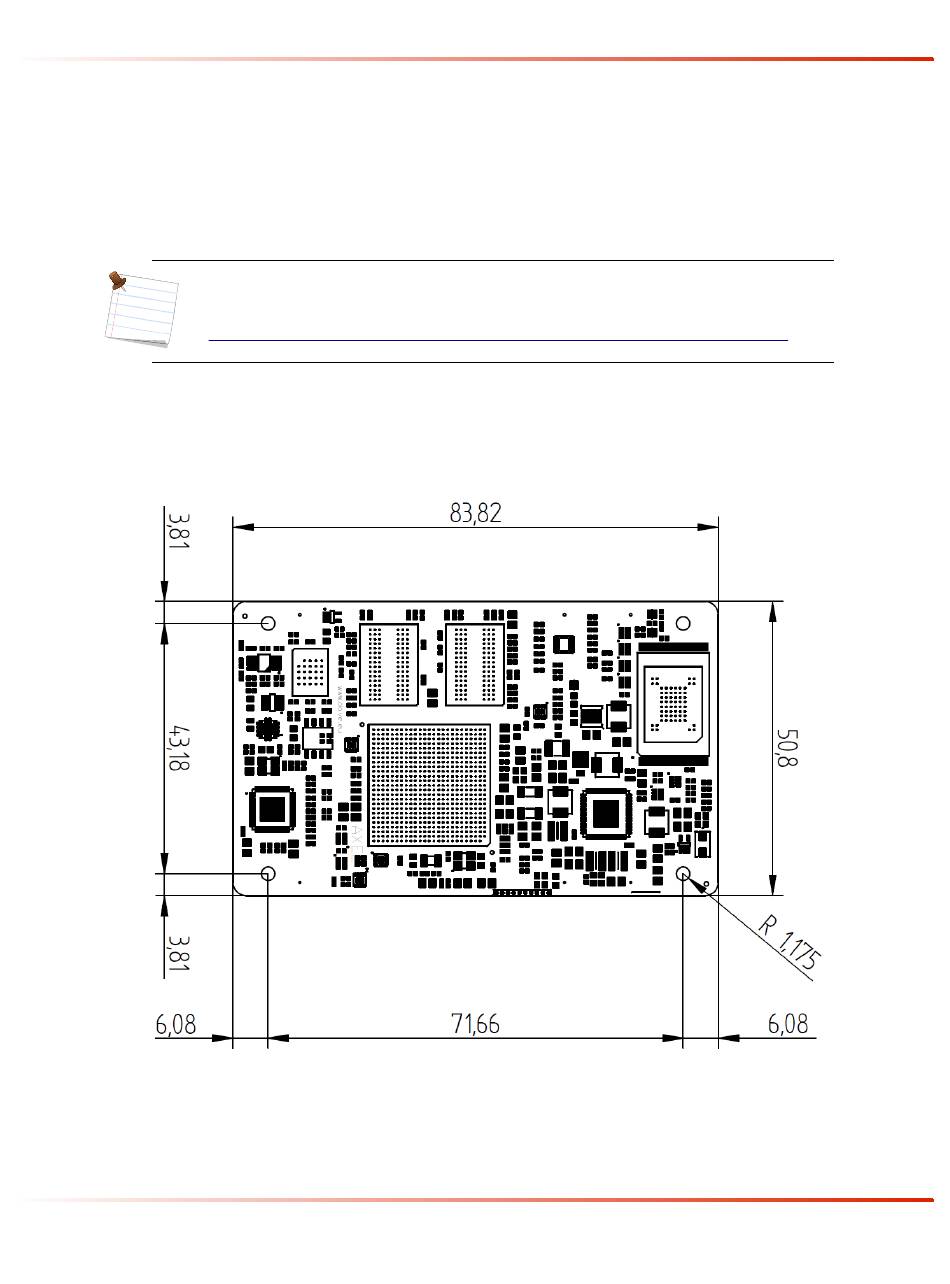

The following figure shows the physical dimensions of the AXEL module:
● Board height: 50.8 mm
21/80
Mechanical drawings are available in DXF format from the AXEL
page on DAVE Embedded Systems website
(http://www.dave.eu/products/som/freescale/imx6_axel-ultra).
Fig. 3: Board layout - Top view
October, 2016
v . 1 . 0 . 5
