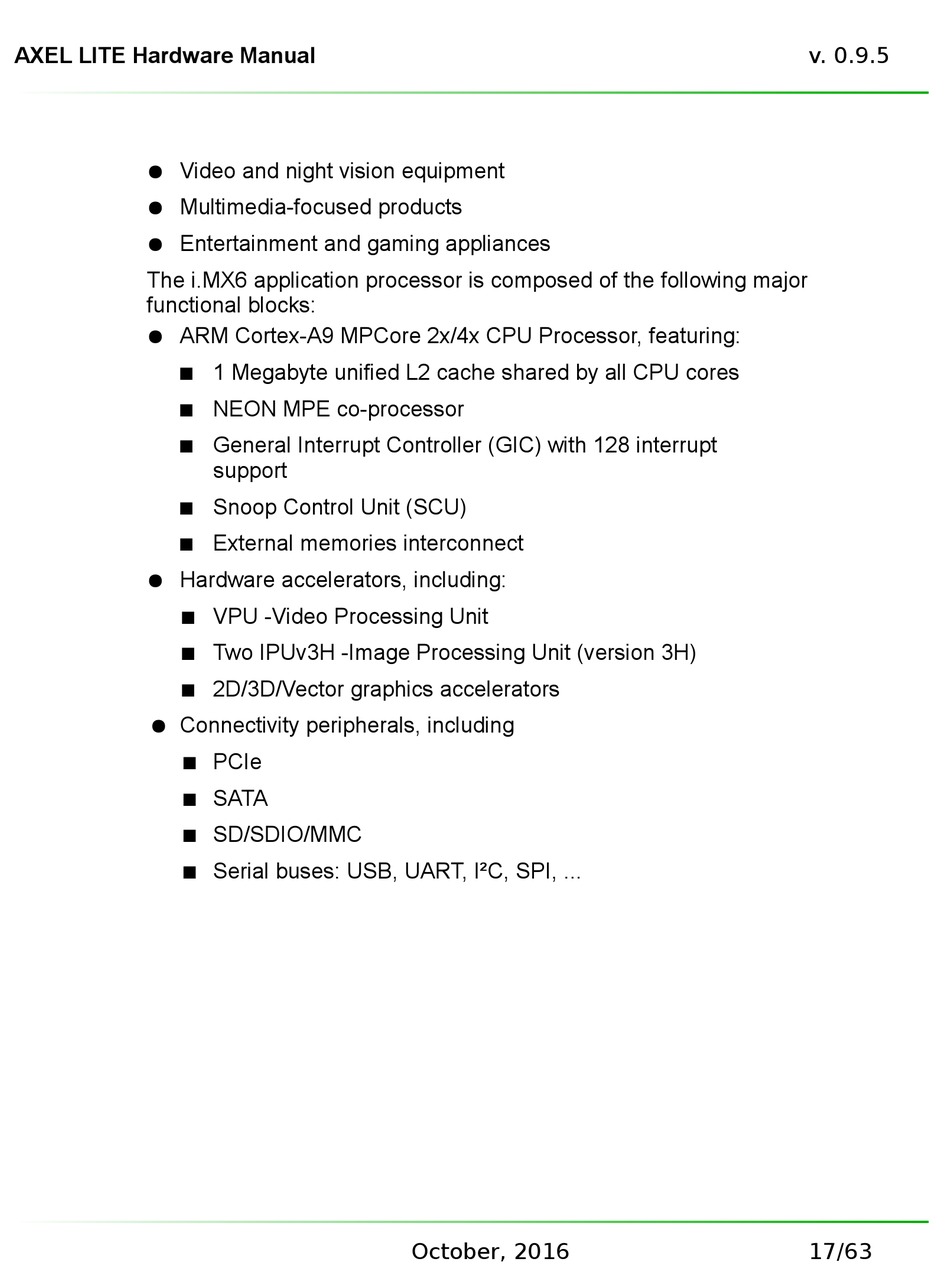

Dave Embedded Systems AXEL LITE Hardware Manual page 17

AXEL LITE Hardware Manual
● Video and night vision equipment
● Multimedia-focused products
● Entertainment and gaming appliances
The i.MX6 application processor is composed of the following major
functional blocks:
● ARM Cortex-A9 MPCore 2x/4x CPU Processor, featuring:
 1 Megabyte unified L2 cache shared by all CPU cores
 NEON MPE co-processor
 General Interrupt Controller (GIC) with 128 interrupt
 Snoop Control Unit (SCU)
 External memories interconnect
● Hardware accelerators, including:
 VPU -Video Processing Unit
 Two IPUv3H -Image Processing Unit (version 3H)
 2D/3D/Vector graphics accelerators
● Connectivity peripherals, including
 PCIe
 SATA
 SD/SDIO/MMC
 Serial buses: USB, UART, I²C, SPI, ...
support
