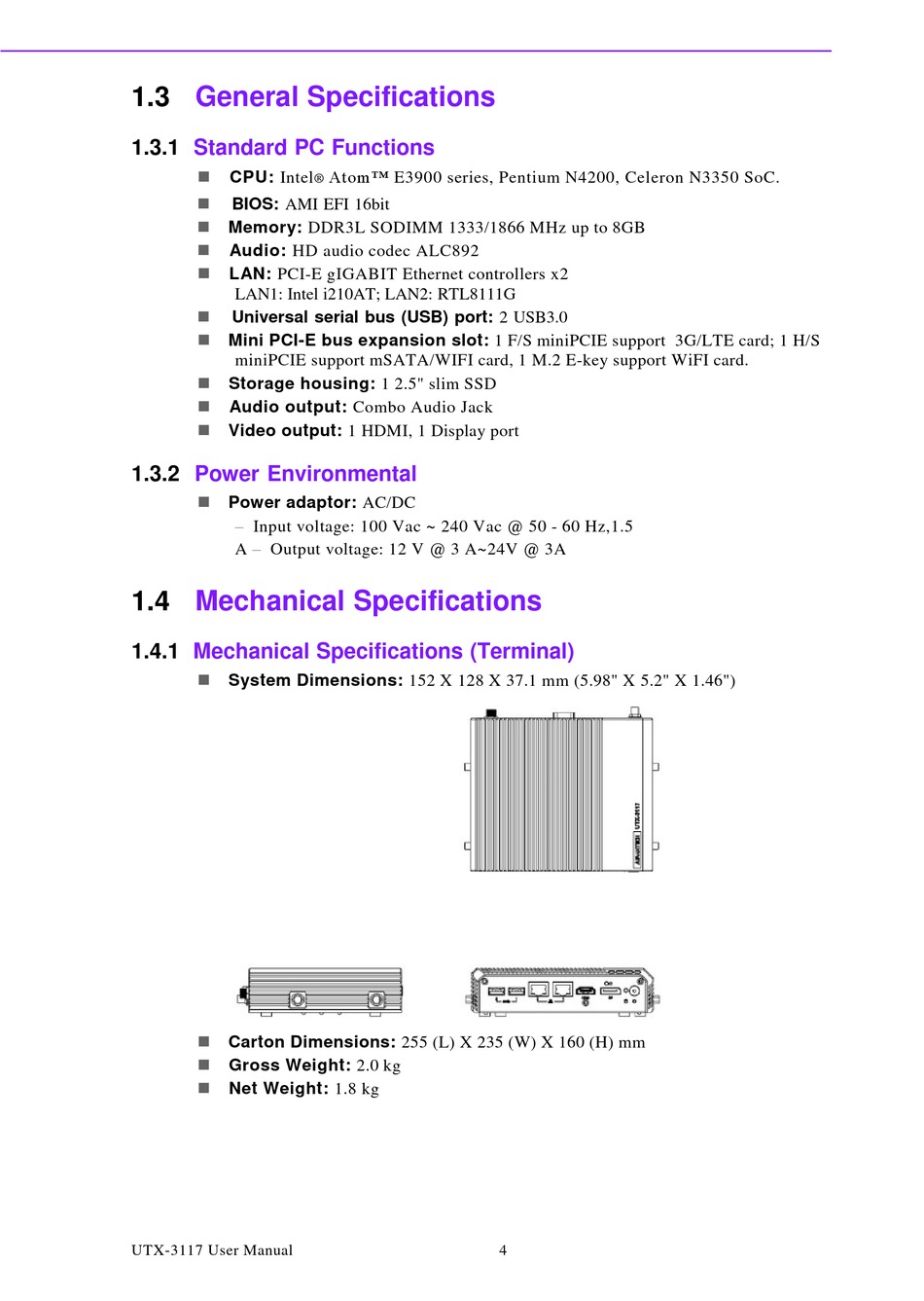

1.3

General Specifications

1.3.1

Standard PC Functions

CPU: Intel
 BIOS: AMI EFI 16bit
Memory: DDR3L SODIMM 1333/1866 MHz up to 8GB
Audio: HD audio codec ALC892
LAN: PCI-E gIGABIT Ethernet controllers x2
LAN1: Intel i210AT; LAN2: RTL8111G
 Universal serial bus (USB) port: 2 USB3.0
Mini PCI-E bus expansion slot: 1 F/S miniPCIE support 3G/LTE card; 1 H/S
miniPCIE support mSATA/WIFI card, 1 M.2 E-key support WiFI card.
Storage housing: 1 2.5" slim SSD
Audio output: Combo Audio Jack
Video output: 1 HDMI, 1 Display port
1.3.2

Power Environmental

Power adaptor: AC/DC
–
Input voltage: 100 Vac ~ 240 Vac @ 50 - 60 Hz,1.5
–
A Output voltage: 12 V @ 3 A~24V @ 3A
1.4

Mechanical Specifications

1.4.1

Mechanical Specifications (Terminal)

System Dimensions: 152 X 128 X 37.1 mm (5.98" X 5.2" X 1.46")
Carton Dimensions: 255 (L) X 235 (W) X 160 (H) mm
Gross Weight: 2.0 kg
Net Weight: 1.8 kg
UTX-3117 User Manual
Atom™ E3900 series, Pentium N4200, Celeron N3350 SoC.
®
