2.2.5

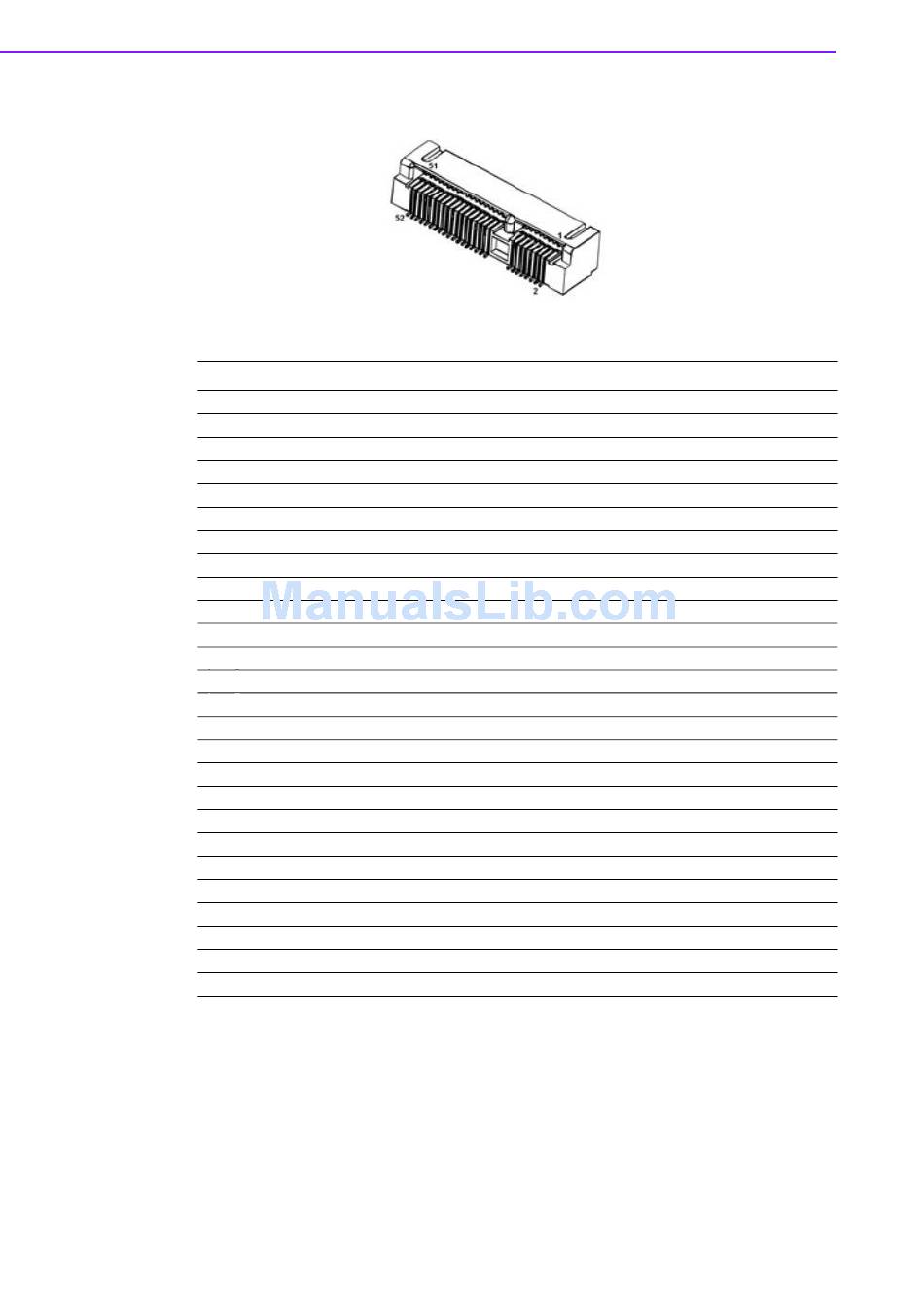

MINIPCIE Connector (MINI-PCIE1)

MINIPCIE:
Pin Signal
1 WAKE#
3 Reserved
5 Reserved
7 Reserved
9 GND
11 Reserved
13 Reserved
15 GND
17 Reserved
19 Reserved
21 GND
23 Reserved
25 Reserved
27 GND
29 GND
31 Reserved
33 MINI-PCIE1 _RESET#
35 GND
37 GND
39 +3.3Vaux
41 +3.3Vaux
43 Reserved
45 Reserved
47 Reserved
49 Reserved
51 Reserved
UTX-3117 User Manual
Pin Signal
2 +3.3Vaux
4 GND
6 +1.5V
8 SIM_VCC1
10 SIM_IO1
12 SIM_CLK1
14 SIM_RST1
16 SIM_SPU1
18 GND
20 DISABLE#
22 RESET#
24 +3.3Vaux
26 GND
28 +1.5V
30 Reserved
32 Reserved
34 GND
36 USB_D-
38 USB_D+
40 GND
42 Reserved
44 Reserved
46 Reserved
48 +1.5V
50 GND
52 +3.3Vaux
