2.2.18

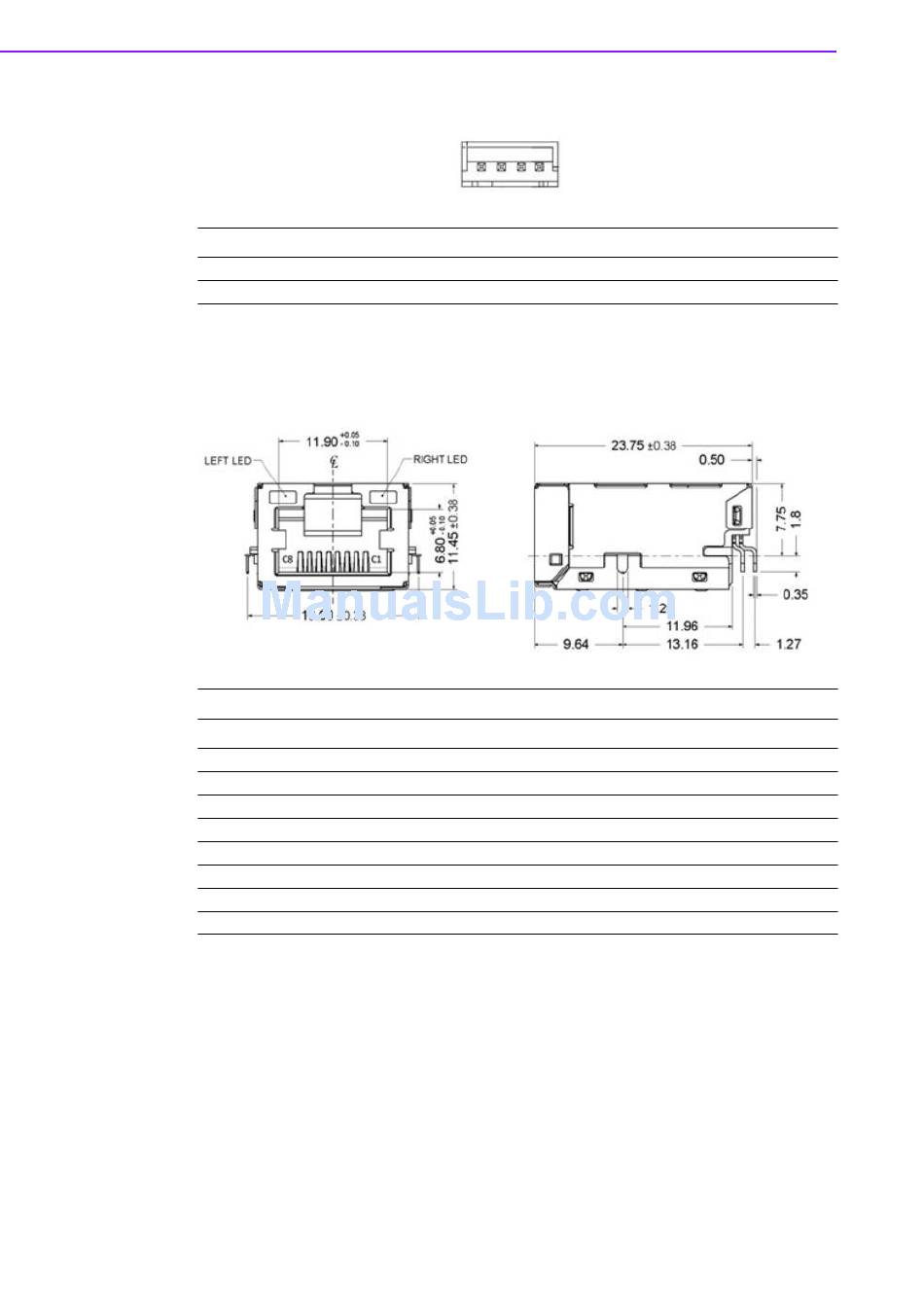

SATA Power Connector (SATA_PWR1)

Pin Signal
1 +V5
2 GND
2.2.19

RJ45 Connector(LAN1)

2.2.20 RJ45 Connector(LAN1)
Pin Signal
R1 LAN2_TCT
R2 LAN2_MDI0+
R3 LAN2_MDI0-
R4 LAN2_MDI1+
R5 LAN2_MDI1-
R6 LAN2_TCTG
R7 LAN2_MDI2+
R8 LAN2_MDI2-
UTX-3117 User Manual
Pin Signal
3 GND
4 x
RJ45
Pin Signal
R10 LAN2_MDI3-
R11 LAN1_TCT
H1 GND_LAN
H2 GND_F1
L1 LAN2_LED1_Z_ACT#
L2 +V3.3_LAN2
L3 LAN2_LED2_Z_1G#
L4 LAN2_LED0_Z_100M#
20
