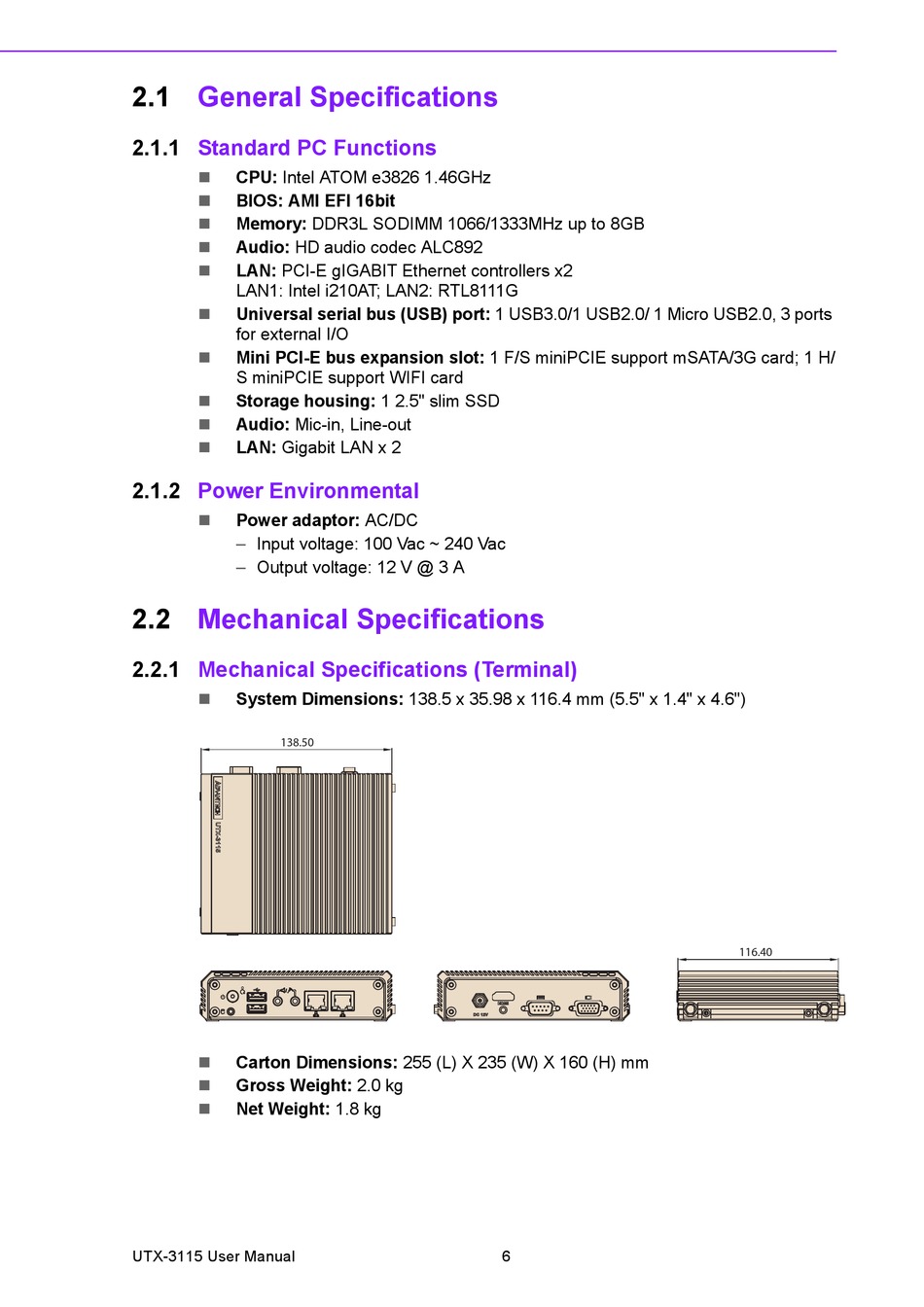

2.1

General Specifications

2.1.1

Standard PC Functions

CPU: Intel ATOM e3826 1.46GHz
BIOS: AMI EFI 16bit
Memory: DDR3L SODIMM 1066/1333MHz up to 8GB
Audio: HD audio codec ALC892
LAN: PCI-E gIGABIT Ethernet controllers x2
LAN1: Intel i210AT; LAN2: RTL8111G
Universal serial bus (USB) port: 1 USB3.0/1 USB2.0/ 1 Micro USB2.0, 3 ports
for external I/O
Mini PCI-E bus expansion slot: 1 F/S miniPCIE support mSATA/3G card; 1 H/
S miniPCIE support WIFI card
Storage housing: 1 2.5" slim SSD
Audio: Mic-in, Line-out
LAN: Gigabit LAN x 2
2.1.2

Power Environmental

Power adaptor: AC/DC
Input voltage: 100 Vac ~ 240 Vac
Output voltage: 12 V @ 3 A
2.2

Mechanical Specifications

2.2.1

Mechanical Specifications (Terminal)

System Dimensions: 138.5 x 35.98 x 116.4 mm (5.5" x 1.4" x 4.6")
138.50
Carton Dimensions: 255 (L) X 235 (W) X 160 (H) mm
Gross Weight: 2.0 kg
Net Weight: 1.8 kg
UTX-3115 User Manual
6
116.40
