2.2.10

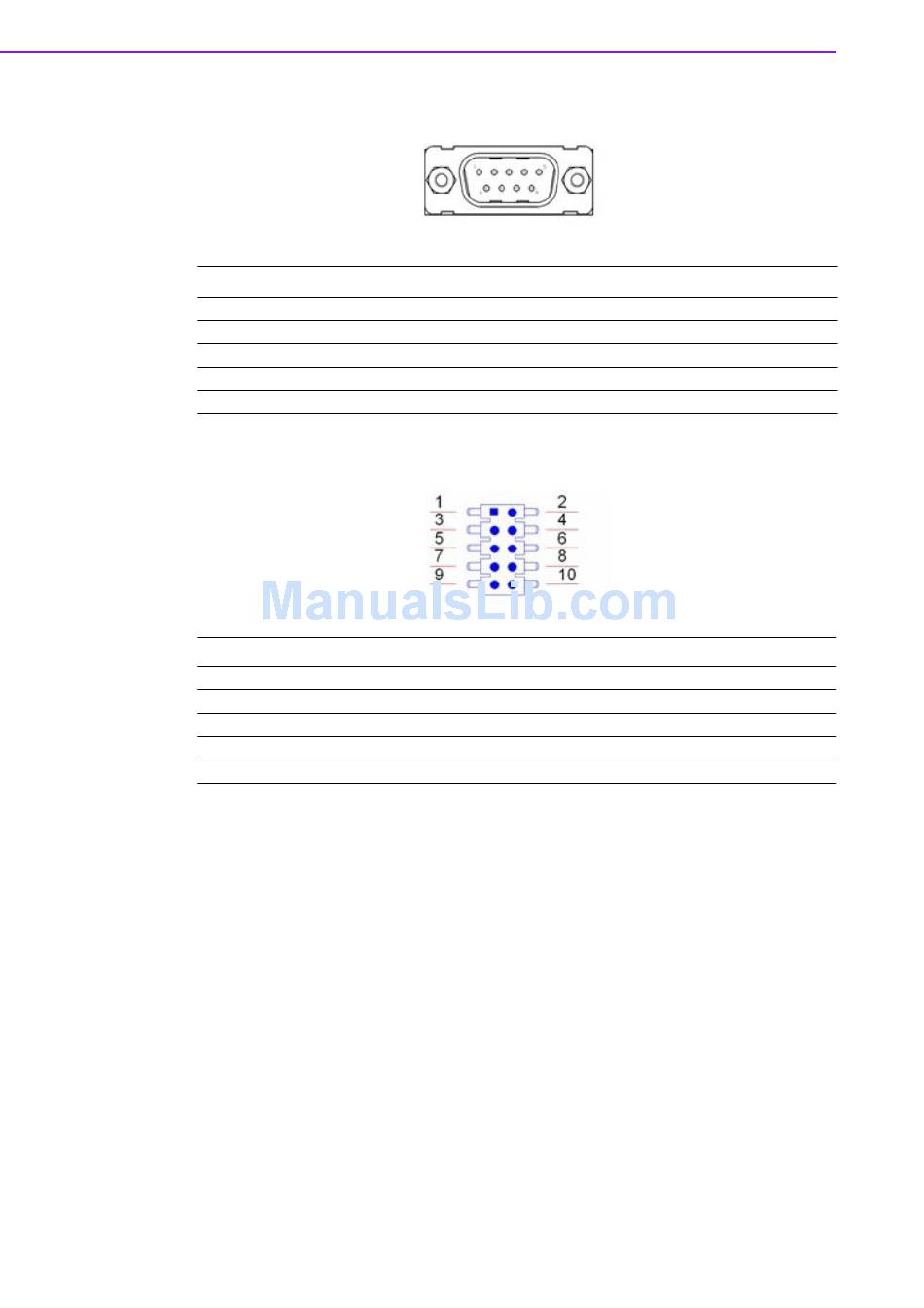

COM Port (COM1)
Pin
Signal
1
DCD#
2
RXD
3
TXD
4
DTR#
5
GND
2.2.11
General Purpose I/O Pin Header (GPIO1)
Pin
Signal
1
GPIO0
3
GPIO1
5
GPIO2
7
GPIO3
9
+3.3V
UTX-3117 User Manual
Pin
Signal
6
DSR#
7
RTS#
8
CTS#
9
RI#
Pin
Signal
2
GPIO4
4
GPIO5
6
GPIO6
8
GPIO7
10
GND
16
