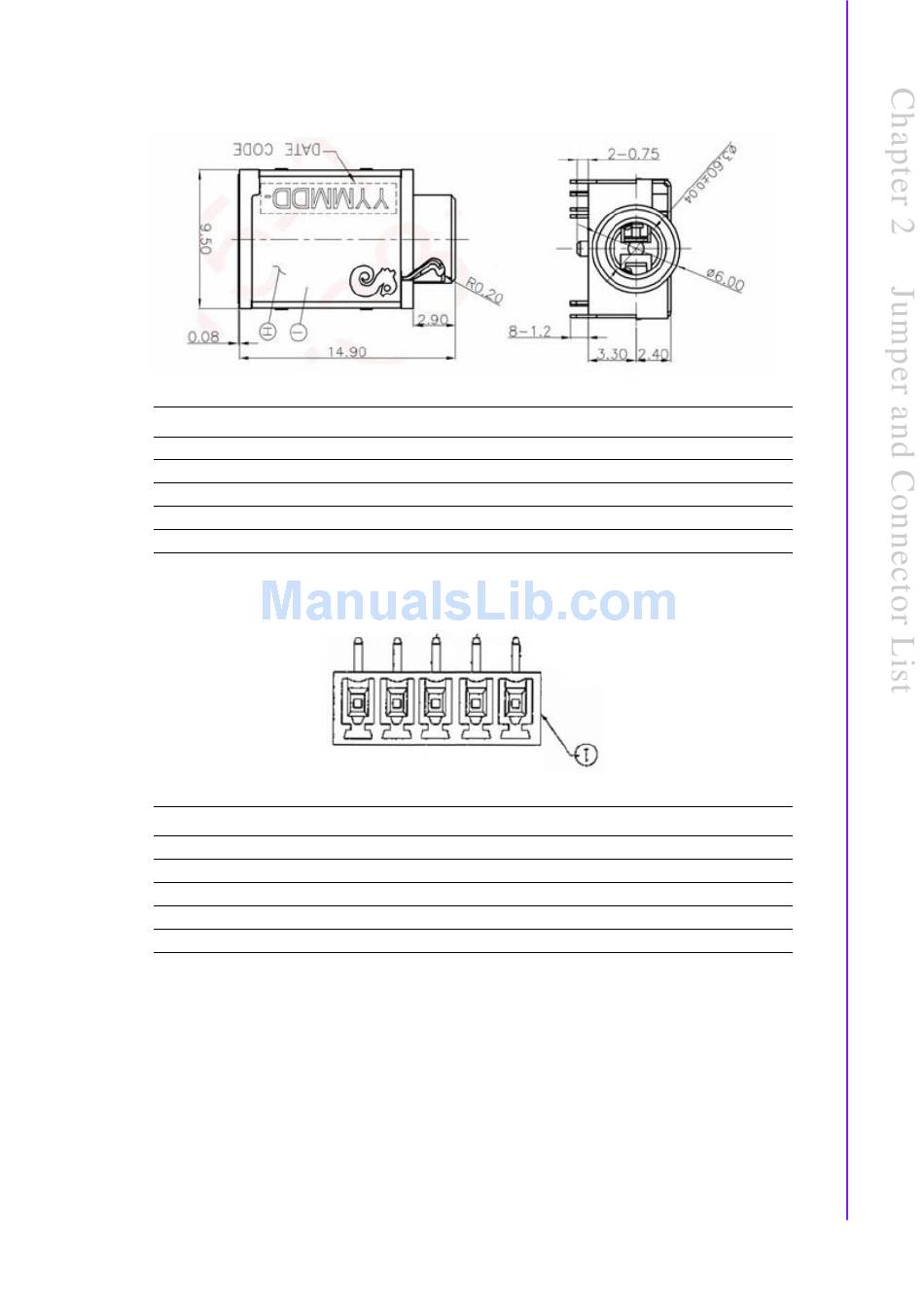

2.2.12

HD Analog Audio Interface (AUDIO1)

Pin
Signal
1
CONN_FRONT_L
2
CONN_FRONT_R
3
GND_A
4
CONN_MIC1_L
5
FRONT_SENSE_A
2.2.13

COM Port (COM2)

Pin
1
2
3
4
5
Pin
6
MS1
MS2
H1
H2
Signal
COM2_422_485_TX-
COM2_422_485_TX+
GND
COM2_422_RX-
COM2_422_RX+
17
Signal
GND_A
GND_A
GND_A
x
x
