- Page 1 User Manual ADAM-6700 Series Compact Intelligent Gateway with I/O...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 Technical Support and Assistance Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you require additional assistance. Please have the following information ready before calling: –...
- Page 4 ADAM-6700 User Manual...
-
Page 5: Table Of Contents
Contents Chapter Product Overview ........1 Introduction ....................2 Hardware Introduction................3 Figure 1.1 ADAM-6700 Series (Front View) ........ 3 1.2.1 Power Connection................. 3 Figure 1.2 ADAM-6700 Series Power Connection ...... 3 1.2.2 USB Connector ................4 Figure 1.3 ADAM-6700 Series Micro USB........4 Figure 1.4 ADAM-6700 Series Type-A USB........ - Page 6 Figure 3.10Configuration Information ......... 19 Figure 3.11Network Information ..........19 Figure 3.12Time & Date Configuration ........20 Figure 3.13Control Tab Page ............. 20 Figure 3.14General Tab Page ............ 20 Figure 3.15Firmware Tab Page..........21 Figure 3.16Account Tab Page............ 21 Figure 3.17Change the Password ..........21 3.1.3 I/O Status Settings..............
-
Page 7: Chapter 1 Product Overview
Chapter Product Overview... -
Page 8: Introduction
The ADAM-6700 series gateways are capable of transmitting data to the cloud via different nodes. For legacy machines that cannot transmit data to the cloud, the ADAM-6700 series can serve as a data communication gateway to enable IoT applications. -
Page 9: Hardware Introduction

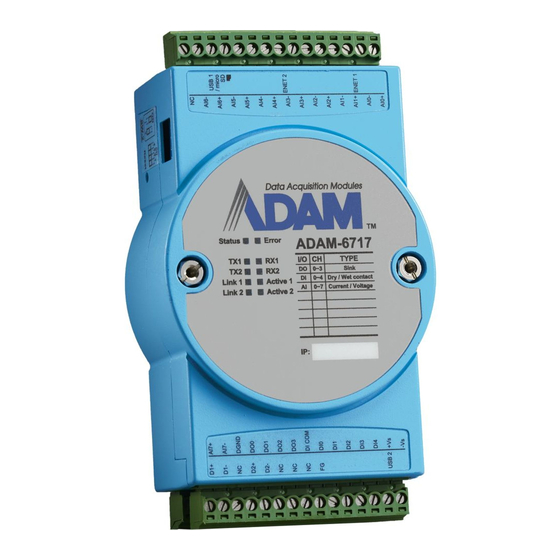

Hardware Introduction Figure 1.1 ADAM-6700 Series (Front View) 1.2.1 Power Connection Figure 1.2 ADAM-6700 Series Power Connection ADAM-6700 User Manual... -
Page 10: Usb Connector
1.2.2 USB Connector The ADAM-6700 series features a micro USB port that is used as a console port. When connect to the USB port, the device can be powered via USB... Note! The ADAM-6700 series can be powered by micro USB for configuration. -
Page 11: Micro Sd Slot
1.2.3 Micro SD Slot Figure 1.5 ADAM-6700 Series Micro SD 1.2.4 RS-485 Connector Figure 1.6 ADAM-6700 Series RS-485 Connector ADAM-6700 User Manual... -
Page 12: Ethernet Connector
1.2.5 Ethernet Connector The ADAM-6700 series gateways have two MAC IDs that are listed on a label on the side of the device. The default IP address for these ports is 10.0.0.1 (Eth0) and 11.0.0.1 (Eth1). Figure 1.7 ADAM-6700 Series Ethernet Connection 1.2.6... -
Page 13: Led Indicator Definition
LED Indicator Definition The ADAM-6700 series gateways are equipped with LED indicators that show the device status. The LED indicator behaviors are defined below. The indicator behavior for error events can be configured using Node-RED. Color Behavior Definition Stay on... - Page 14 ADAM-6700 User Manual...
-
Page 15: Chapter 2 Wiring And Settings
Chapter Wiring and Settings... -
Page 16: Adam-6717 Gateway With Analog Input
ADAM-6717 Gateway with Analog Input 2.1.1 Specifications Analog Input Channels: 8 (differential and independent configurable) Current input range: 0 ~ 20 mA,4 ~ 20 mA, ±20 mA Voltage input range: 0 ~ 10V, 0 ~ 150mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V, ±5V, ±1V, ±500mV, ±150mV, ±10V, 0 ~ 500mV ... -
Page 17: Application Wiring
2.1.2 Application Wiring Analog Input and Digital Output Wiring The gateway supports the voltage and current input. Before connecting the voltage or current input, ensure that the switch and input range settings of the web utility are set to the correct value. Figure 2.1 Current/Voltage Input Switch Setting AI Channel Current input mode... - Page 18 Figure 2.3 Digital Output with Inductive Load Digital Input Wet/Dry Contact Wiring Figure 2.4 Wet and Dry Contact Wiring ADAM-6700 User Manual...
-
Page 19: Adam-6750 Gateway With Digital Input/Output
ADAM-6750 Gateway with Digital Input/Output 2.2.1 Specifications Digital Output Channel: 12 Type: Sink 30 V , 0.1A max. per channel Delay time: Low to high: 100 us; High to low: 150 us Pulse output: Up to 3 kHz Digital Input ... -
Page 20: Application Wiring
2.2.2 Application Wiring Digital Input and Digital Output Wiring Figure 2.5 Digital Input and Digital Output Wiring Figure 2.6 Digital Output with Inductive Load ADAM-6700 User Manual... -
Page 21: Chapter 3 System Configuration
Chapter System Configuration Advantech has developed a web portal for configuring the... - Page 22 ADAM-6700 series gateways. To access the web portal, users must obtain the IP address of the assigned LAN port. Then open a browser and type the IP address of the LAN port. The default IP setup mode is “DHCP”. If the IP mode is set as “DHCP” and the gateway is connected to the DHCP server, type the IP address of the assigned LAN port.
-
Page 23: Web Utility Configuration
Step 2. The ADAM/Apax.NET Utility will list the connected ADAM-6700 gateways and their IP address. Figure 3.4 Web Utility Obtaining the Gateway IP Address Web Utility Configuration On the Configuration page of the web utility, click “Link”. In the popup window dis- played, enter the username and password and click “Sign In”. -
Page 24: Information Settings
3.1.1 Information Settings The device information, such as the model name and user-defined device name, can be found in the Information tab. Device Information Figure 3.7 Device Information Model Name: Shows the model name Customized Name: Shows the user-defined device name. The name can be modi- fied in the configuration tab. -
Page 25: Configuration
3.1.2 Configuration Information Figure 3.10 Configuration Information Customized Name: Define the name in the column and click “submit” to implement the change. Submit: Click for the changes to take effect Network Figure 3.11 Network Information Interface: Shows the network LAN port Mac: Shows the Mac ID of the LAN port IP: Shows the IP address Gateway: Shows the gateway address... - Page 26 Time & Date Figure 3.12 Time & Date Configuration Current Time: Shows the current time Time Zone: Shows the time zone Time Calibration: This item allows users to adjust the time and date Control Figure 3.13 Control Tab Page System Restart: This item allows users to reboot the system ...
- Page 27 Firmware Figure 3.15 Firmware Tab Page Firmware Upload: Follow the onscreen instructions to update the firmware Configuration File Upload: Use this item to import the I/O configuration settings Configuration File Export: Use this item to export the I/O configuration settings ...
- Page 28 3.1.3 I/O Status Settings Analog Input Settings Status Figure 3.18 Analog Input Status The Status tab shows the analog input settings, including the input range and values Note! Ensure that the current and voltage input range settings are consistent with the switch settings.
- Page 29 Common Settings Figure 3.20 Analog Input Common Settings Filter Mode: Use this item to change the sampling rate. The default mode is 50/60 Hz. Low-speed mode is 10 Hz (total). High speed mode is 100 Hz (total). User- defined mode is not available Filter Rate of FSR: Use this item to set the noise filter function.
- Page 30 ADAM-6750 DI Mode Configuration Figure 3.22 ADAM-6750 Digital Input Settings Channel: Select the channel for configuration Mode: Use this item to set the digital input mode as “DI”, “counter”, “low-to-high latch”, “high-to-low latch”, or “frequency” Refresh: Use this item to refresh the current settings Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will appear when enabled) Digital Filter: Use this item to enable/disable the digital filter (a tick will appear when...
- Page 31 Counter Mode Configuration Figure 3.24 Counter Mode Configuration Channel: Select the channel for configuration Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will appear when enabled) Digital Filter: Use this item to enable/disable the digital filter (a tick will appear when enabled) Min.
- Page 32 Frequency Mode Configuration Figure 3.26 Frequency Mode Settings Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will appear when enabled) Status Figure 3.27 ADAM-6750 Digital Input Status Mode: Use this item to view and change the channel mode ...
- Page 33 ADAM-6750 DO Mode Configuration Figure 3.29 ADAM-6750 Digital Output Settings Channel: Use this item to select the channel for configuration Submit: Click to make the changes take effect Pulse Output Mode Configuration Figure 3.30 Pulse Output Mode Settings Channel: Use this item to select the channel for configuration Min.
- Page 34 Image Updates The device image contains the operating system files and should be updated to sup- port new functions. The latest image can be downloaded from www.advantech.com. Follow the steps outlined below to update the image. Ensure that the device is turned off. Copy the image file onto a micro SD card and insert the card into the ADAM-6700 micro SD slot.
- Page 35 Note! After the image update process is complete, a new update.log file will be created on the micro SD card and the advupdate.txt file will be deleted. This is to prevent the system from updating the image again if the micro SD card is left in the slot.
- Page 36 I/O Configuration Update To save time when configuring the I/O, the I/O configuration settings can be exported and imported to the device. In the Firmware tab, click the Configuration Upload icon and select the configu- ration file xxxx.cfg Figure 3.35 Select I/O Configuration File Click the Update icon to start the update, or click the Cancel icon to cancel the process.
- Page 37 Chapter Node-RED Program...
- Page 38 Node-RED. Starting the Node-RED Program Connect the ADAM-6700 series device to your computer. Open a web browser and in the search bar enter the IP address of the LAN port. The web portal interface should be displayed.
- Page 39 Project Creation After logging into the Node-RED program on the ADAM-6700 series device, users can begin creating projects and coding programs. To connect hardware devices together simply drag nodes from the left-side palette and drop them into the edit area.
- Page 40 Users can import sample flows from the library to reduce development time. Figure 4.5 Sample Flow Template ADAM-6700 User Manual...
- Page 41 Chapter C-Language APIs...
- Page 42 APIs for Development The ADAM-6700 series gateways offer C-language APIs for easy programming and development. Relevant instructions and software documentation are provided on the Advantech support website at https://support.advantech.com/support. To find the API instructions, simply visit the above link and in the support portal search bar, input the specific ADAM-6700 model (e.g., ADAM-6717, ADAM-6750).
- Page 43 ADAM-6700 User Manual...
- Page 44 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019...
