Memory Operation; General Description; D Memory Channel Contents - Icom IC-R30 Advanced Manual

4

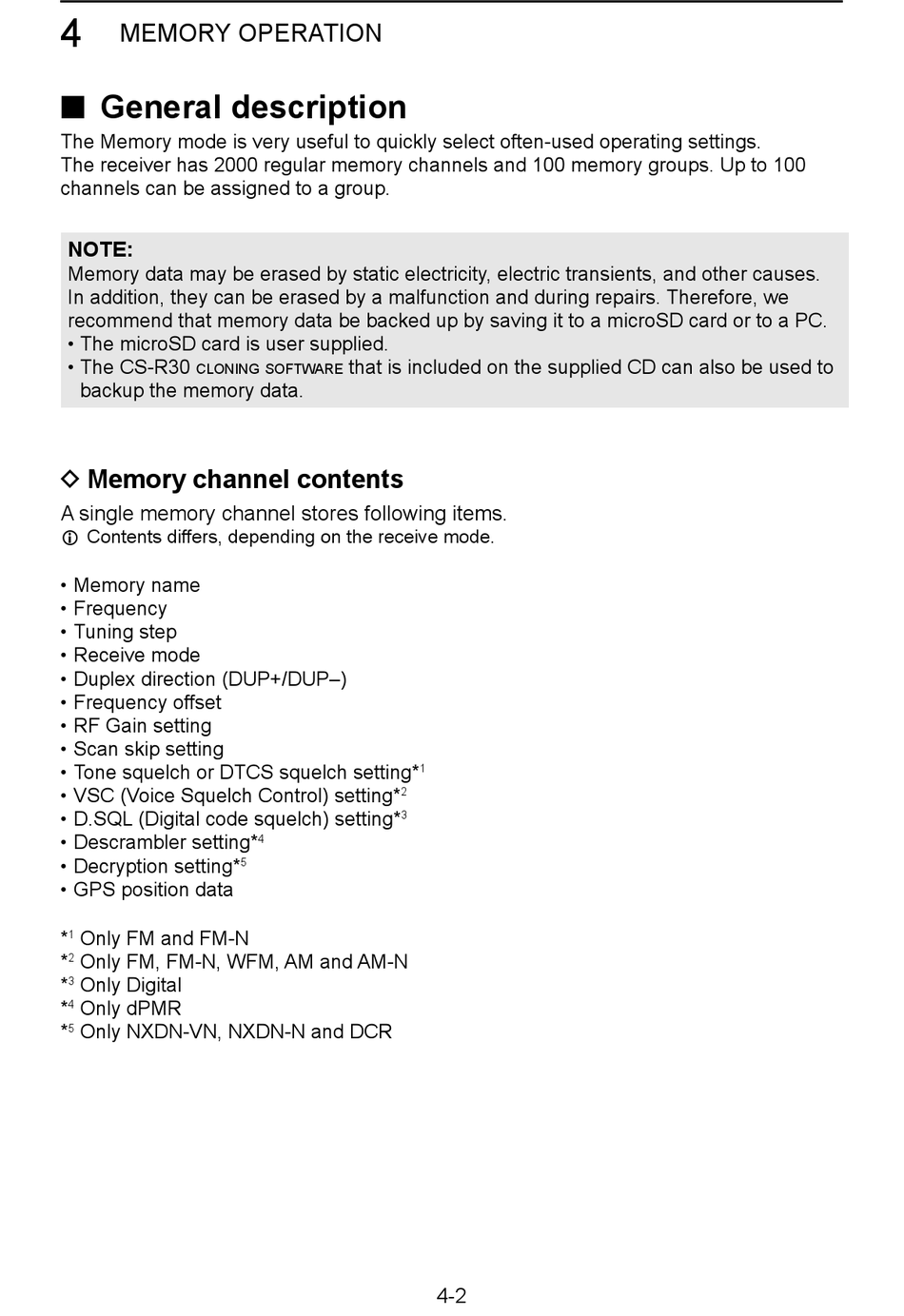

MEMORY OPERATION

■ General description

The Memory mode is very useful to quickly select often-used operating settings.
The receiver has 2000 regular memory channels and 100 memory groups. Up to 100
channels can be assigned to a group.
NOTE:
Memory data may be erased by static electricity, electric transients, and other causes.
In addition, they can be erased by a malfunction and during repairs. Therefore, we
recommend that memory data be backed up by saving it to a microSD card or to a PC.
• The microSD card is user supplied.
• The CS-R30
cloning software
backup the memory data.

D Memory channel contents

A single memory channel stores following items.
L Contents differs, depending on the receive mode.
• Memory name
• Frequency
• Tuning step
• Receive mode
• Duplex direction (DUP+/DUP–)
• Frequency offset
• RF Gain setting
• Scan skip setting
• Tone squelch or DTCS squelch setting*
• VSC (Voice Squelch Control) setting*
• D.SQL (Digital code squelch) setting*
• Descrambler setting*
• Decryption setting*
• GPS position data
* Only FM and FM-N
1
* Only FM, FM-N, WFM, AM and AM-N
2
* Only Digital
3
* Only dPMR
4
* Only NXDN-VN, NXDN-N and DCR
5
that is included on the supplied CD can also be used to
2
3
4
5
1
4-2
