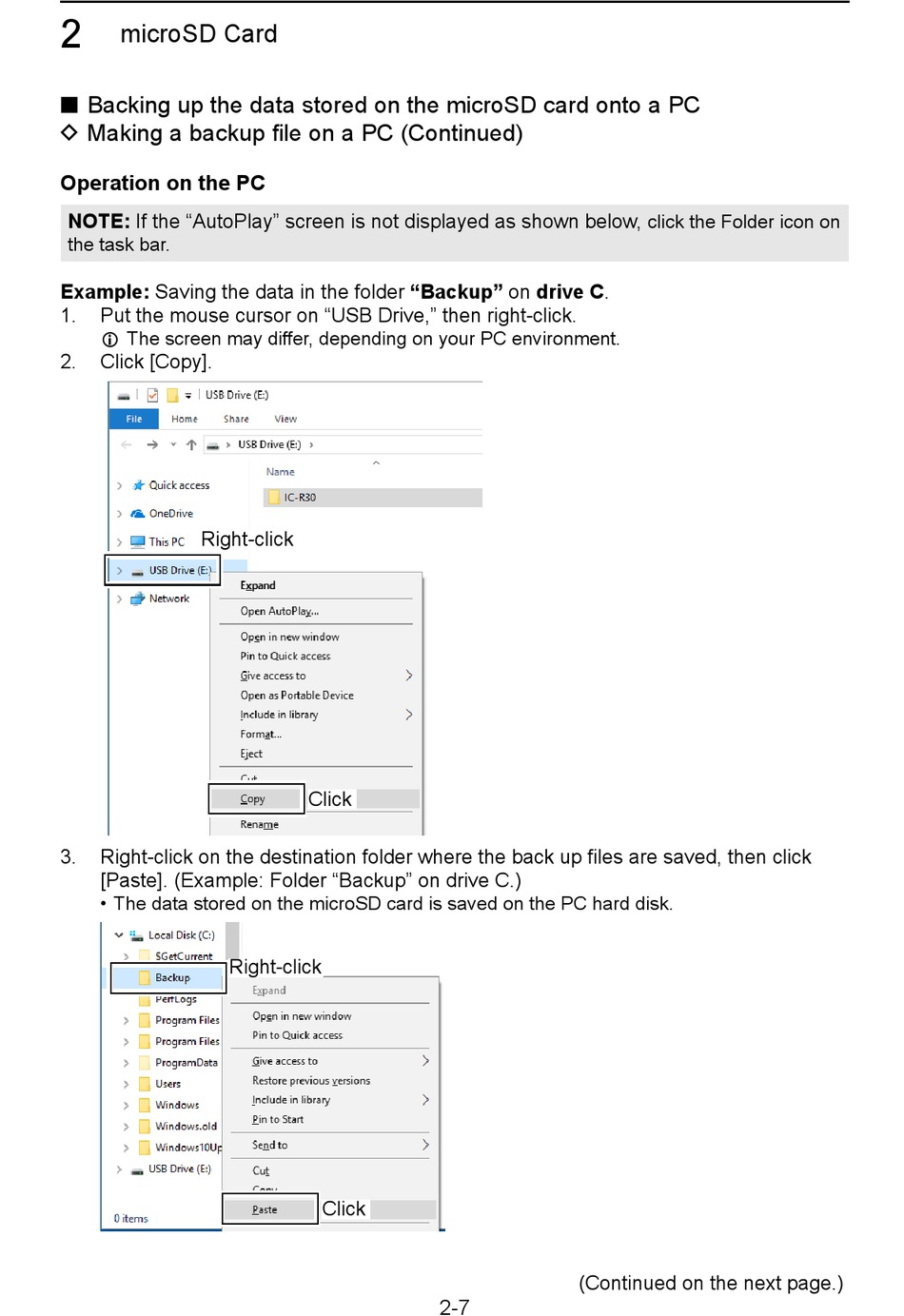

Icom IC-R30 Advanced Manual page 19

2
microSD Card
■ Backing up the data stored on the microSD card onto a PC
D Making a backup file on a PC (Continued)
Operation on the PC
NOTE: If the "AutoPlay" screen is not displayed as shown below,
the task bar.
Example: Saving the data in the folder "Backup" on drive C.
1. Put the mouse cursor on "USB Drive," then right-click.
L The screen may differ, depending on your PC environment.
2. Click [Copy].
Right-click
3. Right-click on the destination folder where the back up files are saved, then click
[Paste]. (Example: Folder "Backup" on drive C.)
• The data stored on the microSD card is saved on the PC hard disk.
Right-click
Click
Click
2-7
click the Folder icon on
(Continued on the next page.)
