OTHER FUNCTIONS
■ CI-V information (Continued)

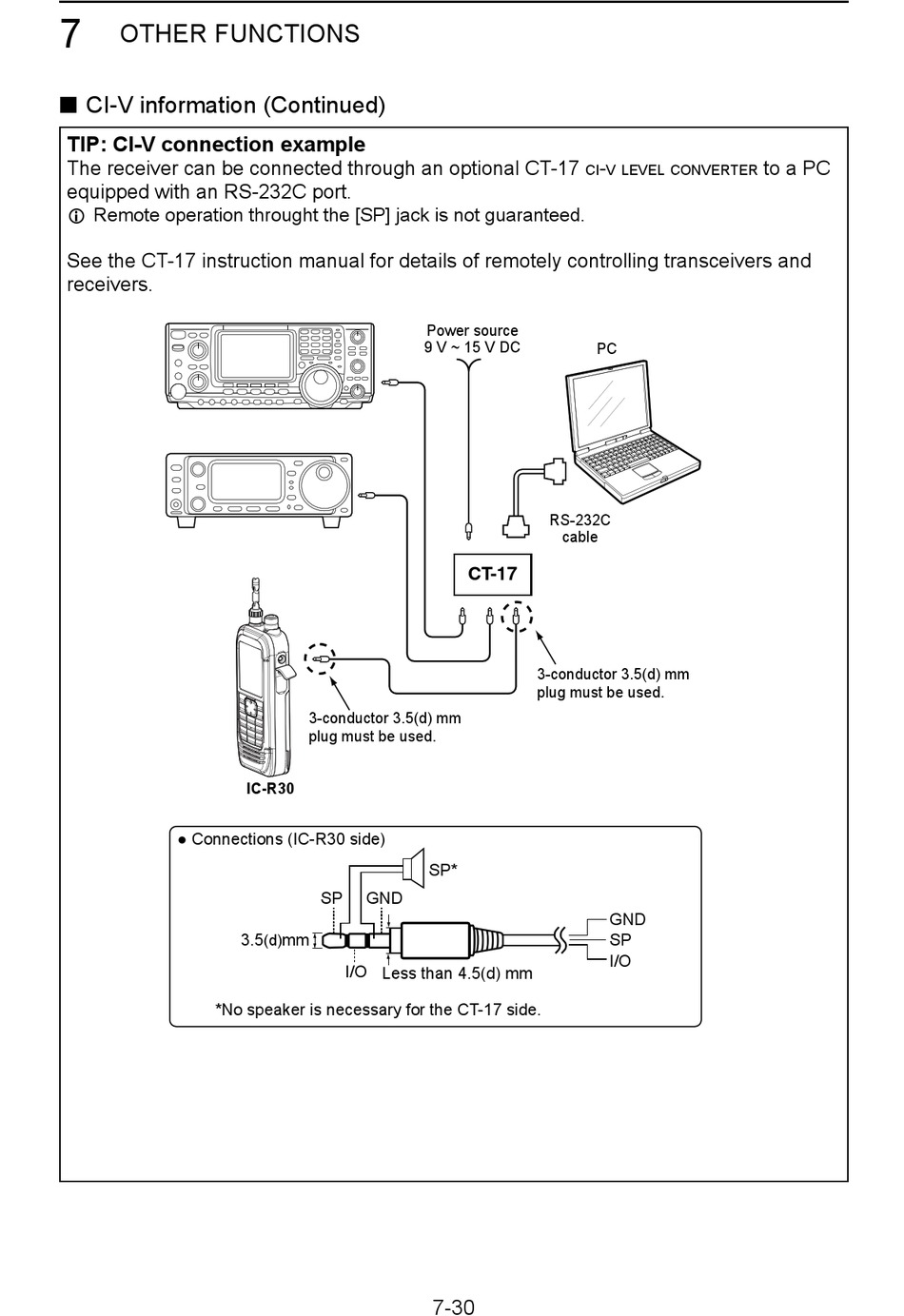

TIP: CI-V connection example
The receiver can be connected through an optional CT-17
equipped with an RS-232C port.
L Remote operation throught the [SP] jack is not guaranteed.
See the CT-17 instruction manual for details of remotely controlling transceivers and
receivers.
● Connections (IC-R30 side)
*No speaker is necessary for the CT-17 side.
3-conductor 3.5(d) mm
plug must be used.
IC-R30
SP GND
3.5 mm
(d)
I/O
Less than 4.5(d) mm
ci
Power source
9 V ~ 15 V DC
PC
RS-232C
cable
CT-17
3-conductor 3.5(d) mm
plug must be used.
SP*
7-30
- to a PC
v level converter
GND
SP
I/O
