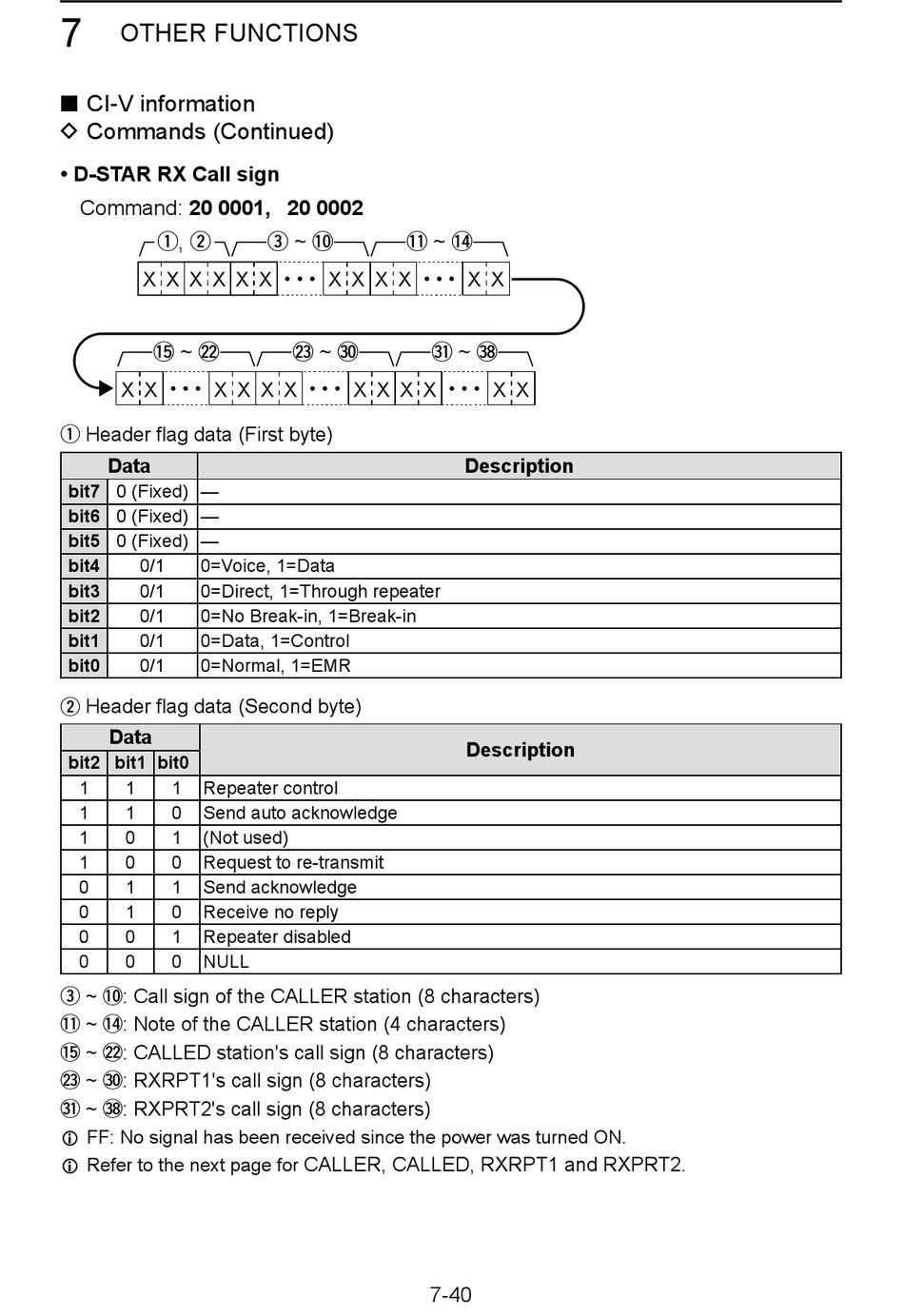

OTHER FUNCTIONS
■ CI-V information
D Commands (Continued)
• D-STAR RX Call sign
Command: 20 0001, 20 0002
q, w
X X X X
!5 ~ @2
X X • • •
X X
q Header flag data (First byte)
Data
bit7 0 (Fixed) —
bit6 0 (Fixed) —
bit5 0 (Fixed) —
bit4 0/1 0=Voice, 1=Data
bit3
0/1 0=Direct, 1=Through repeater
bit2
0/1 0=No Break-in, 1=Break-in
bit1 0/1 0=Data, 1=Control
bit0 0/1 0=Normal, 1=EMR
w Header flag data (Second byte)
Data
bit2 bit1 bit0
1 1 1 Repeater control
1 1 0 Send auto acknowledge
1 0 1 (Not used)
1 0 0 Request to re-transmit
0 1 1 Send acknowledge
0 1 0 Receive no reply
0 0 1 Repeater disabled
0 0 0 NULL
e ~ !0 : Call sign of the CALLER station (8 characters)
!1 ~ !4 : Note of the CALLER station (4 characters)
!5 ~ @2 : CALLED station's call sign (8 characters)
@3 ~ #0 : RXRPT1's call sign (8 characters)
#1 ~ #8 : RXPRT2's call sign (8 characters)
L FF: No signal has been received since the power was turned ON.
L Refer to the next page for
e ~ !0
• • •
X X X X X X
@3 ~ #0
• • •
X X X X X X
CALLER, CALLED, RXRPT1 and RXPRT2.
!1 ~ !4
• • •
X X
#1 ~ #8
• • •
X X
