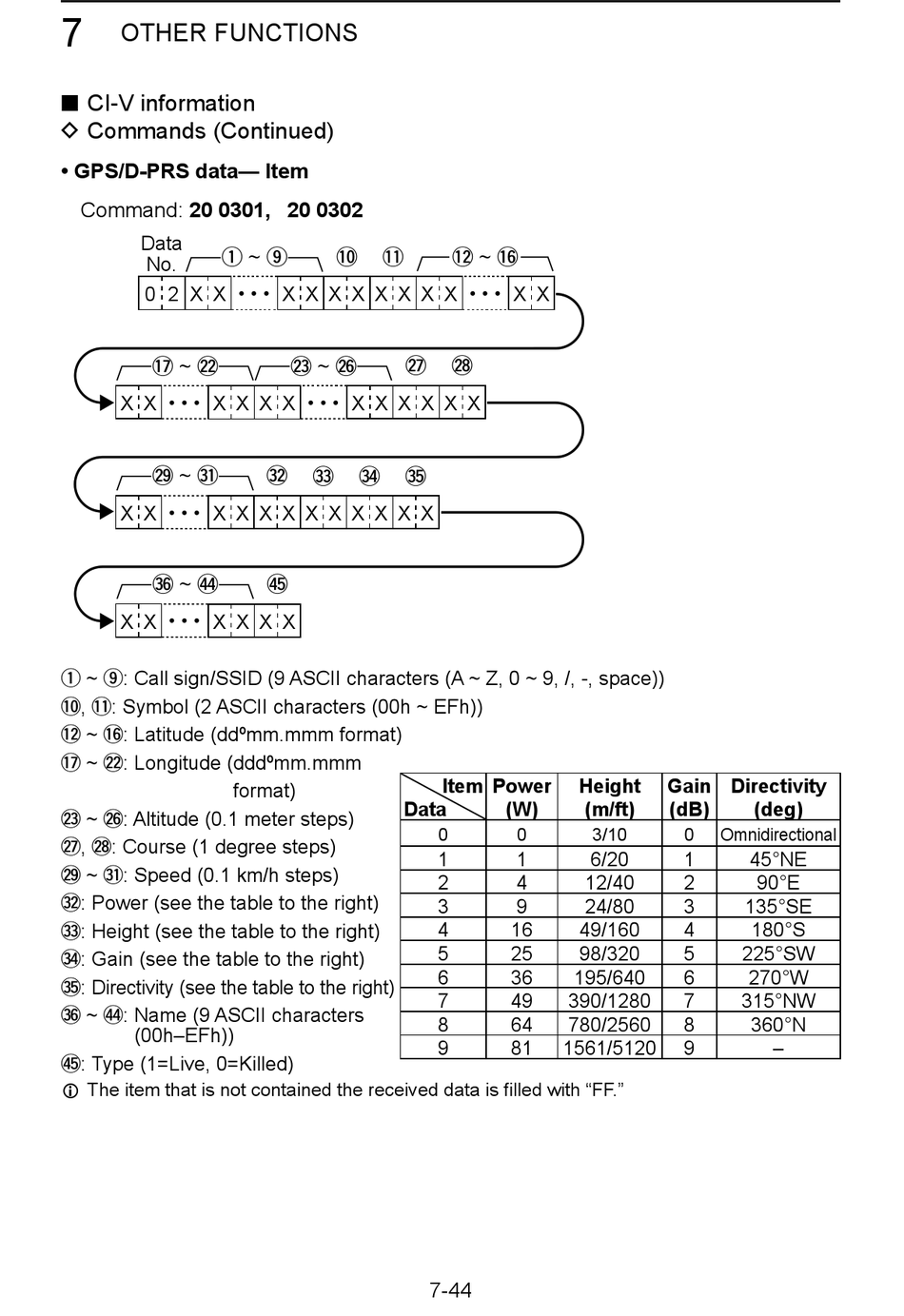

■ CI-V information
D Commands (Continued)
• GPS/D-PRS data— Item
Command: 20 0301, 20 0302
Data
q ~ o
No.
0 2 X X
!7 ~ @2
• • •
X X X X
@9 ~ #1
• • •
X X X
#6 ~ $4
• • •
X X X X
q ~ o: Call sign/SSID (9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space))
!0 , !1 : Symbol (2 ASCII characters (00h ~ EFh))
!2 ~ !6 : Latitude (ddºmm.mmm format)
!7 ~ @2 : Longitude ( dddºmm.mmm
@3 ~ @6 : Altitude (0.1 meter steps)
@7 , @8 : Course (1 degree steps)
@9 ~ #1 : Speed (0.1 km/h steps)
#2 : Power (see the table to the right)
#3 : Height (see the table to the right)
#4 : Gain (see the table to the right)
#5 : Directivity (see the table to the right)
#6 ~ $4 : Name (9 ASCII characters
(00h–EFh))
$5 : Type (1=Live, 0=Killed)
L The item that is not contained the received data is filled with "FF."
!0 !1
• • •
X X X X X X X X
@3 ~ @6
• • •
X X X X X X
#2 #3 #4
X X X X X X X X X
$5
X X
format)
!2 ~ !6
• • • X X
@7 @8
X X
#5
Item Power
Data (W)
0 0
1 1
2 4
3 9
4 16
5 25
6 36
7 49 390/1280
8 64 780/2560
9 81 1561/5120
7-44
Height Gain Directivity
(m/ft) (dB)
3/10 0 Omnidirectional
6/20 1
12/40 2
24/80 3
49/160 4
98/320 5 225°SW
195/640 6
7 315°NW
8
9
(deg)
45°NE
90°E
135°SE
180°S
270°W
360°N
–
