Loading The Saved Data From The Microsd Card - Icom IC-R30 Advanced Manual

2
microSD Card

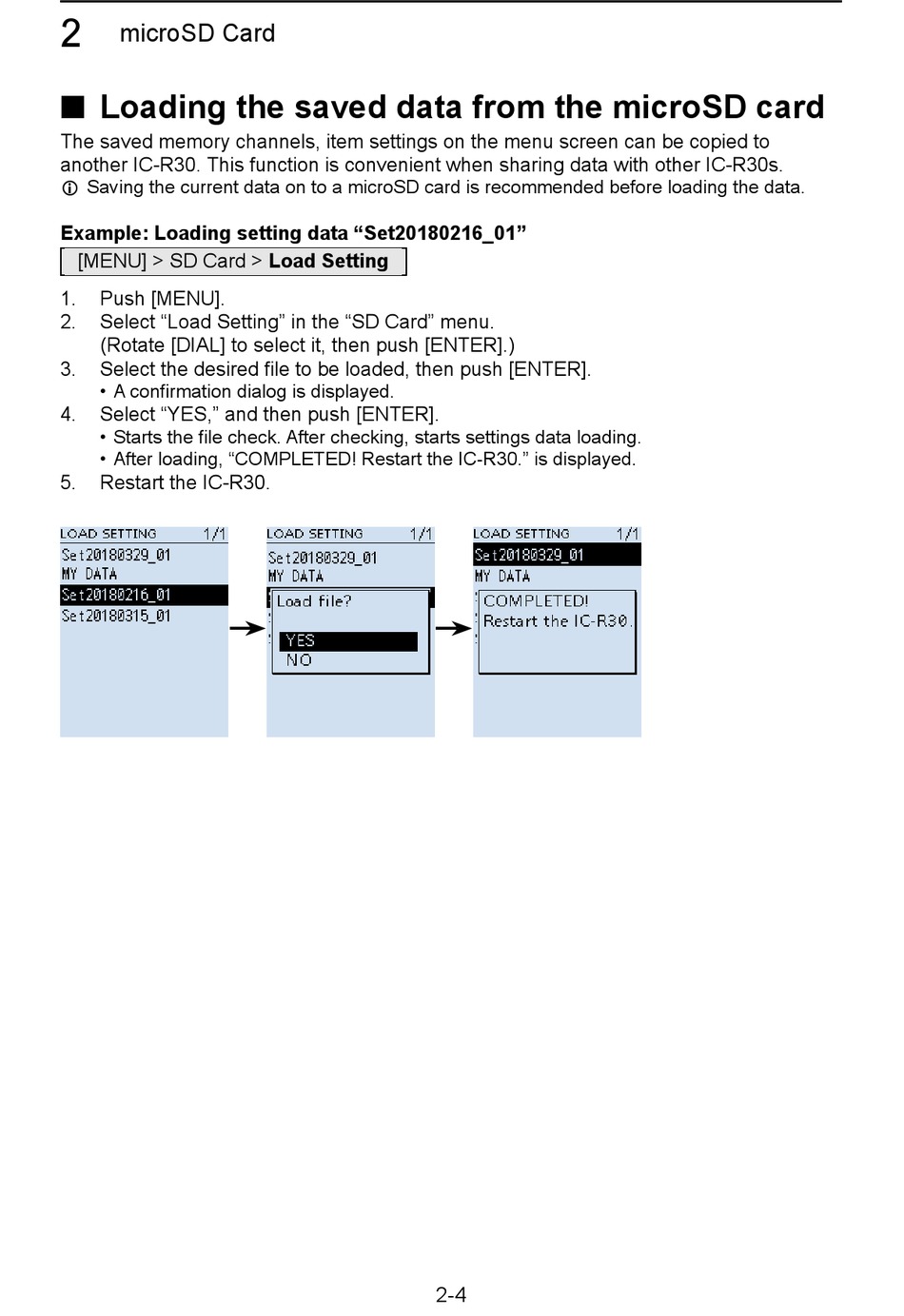

■ Loading the saved data from the microSD card

The saved memory channels, item settings on the menu screen can be copied to
another IC-R30. This function is convenient when sharing data with other IC-R30s.
L Saving the current data on to a microSD card is recommended before loading the data.
Example: Loading setting data "Set20180216_01"
[MENU] > SD Card > Load Setting
1. Push [MENU].
2. Select "Load Setting" in the "SD Card" menu.
(Rotate [DIAL] to select it, then push [ENTER].)
3. Select the desired file to be loaded, then push [ENTER].
• A confirmation dialog is displayed.
4. Select "YES," and then push [ENTER].
• Starts the file check. After checking, starts settings data loading.
• After loading, "COMPLETED! Restart the IC-R30." is displayed.
5. Restart the IC-R30.
2-4
