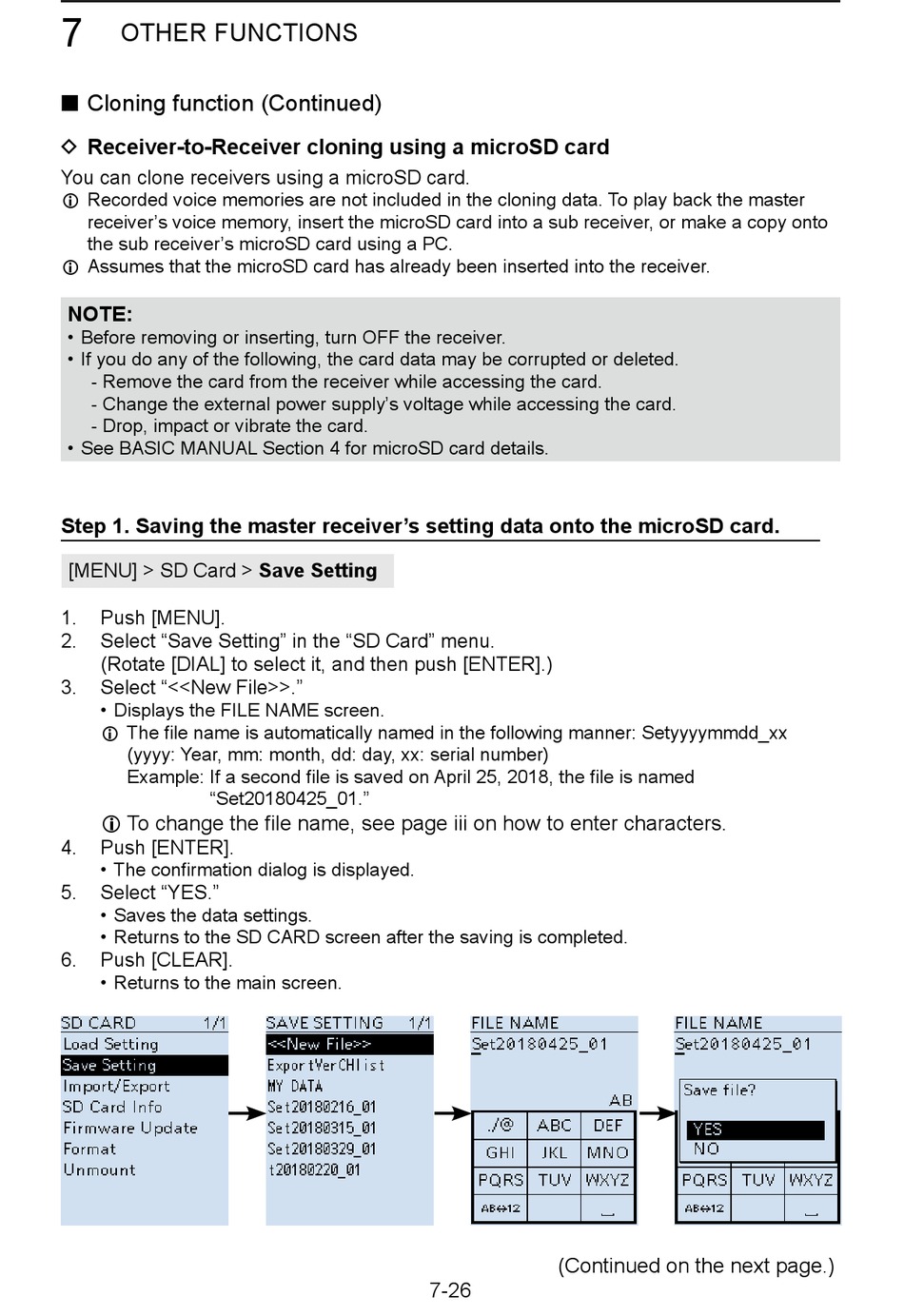

D Receiver-To-Receiver Cloning Using A Microsd Card - Icom IC-R30 Advanced Manual

7
OTHER FUNCTIONS
■ Cloning function (Continued)

D Receiver-to-Receiver cloning using a microSD card

You can clone receivers using a microSD card.
L Recorded voice memories are not included in the cloning data. To play back the master
receiver's voice memory, insert the microSD card into a sub receiver, or make a copy onto
the sub receiver's microSD card using a PC.
L Assumes that the microSD card has already been inserted into the receiver.
NOTE:
• Before removing or inserting, turn OFF the receiver.
• If you do any of the following, the card data may be corrupted or deleted.
- Remove the card from the receiver while accessing the card.
- Change the external power supply's voltage while accessing the card.
- Drop, impact or vibrate the card.
• See BASIC MANUAL Section 4 for microSD card details.
Step 1. Saving the master receiver's setting data onto the microSD card.
[MENU] > SD Card > Save Setting
1. Push [MENU].
2. Select "Save Setting" in the "SD Card" menu.
(Rotate [DIAL] to select it, and then push [ENTER].)
3. Select "<<New File>>."
• Displays the FILE NAME screen.
L The file name is automatically named in the following manner: Setyyyymmdd_xx
(yyyy: Year, mm: month, dd: day, xx: serial number)
Example: If a second file is saved on April 25, 2018, the file is named
"Set20180425_01."
L To change the file name, see page iii on how to enter characters.
4. Push [ENTER].
• The confirmation dialog is displayed.
5. Select "YES."
• Saves the data settings.
• Returns to the SD CARD screen after the saving is completed.
6. Push [CLEAR].
• Returns to the main screen.
(Continued on the next page.)
7-26
