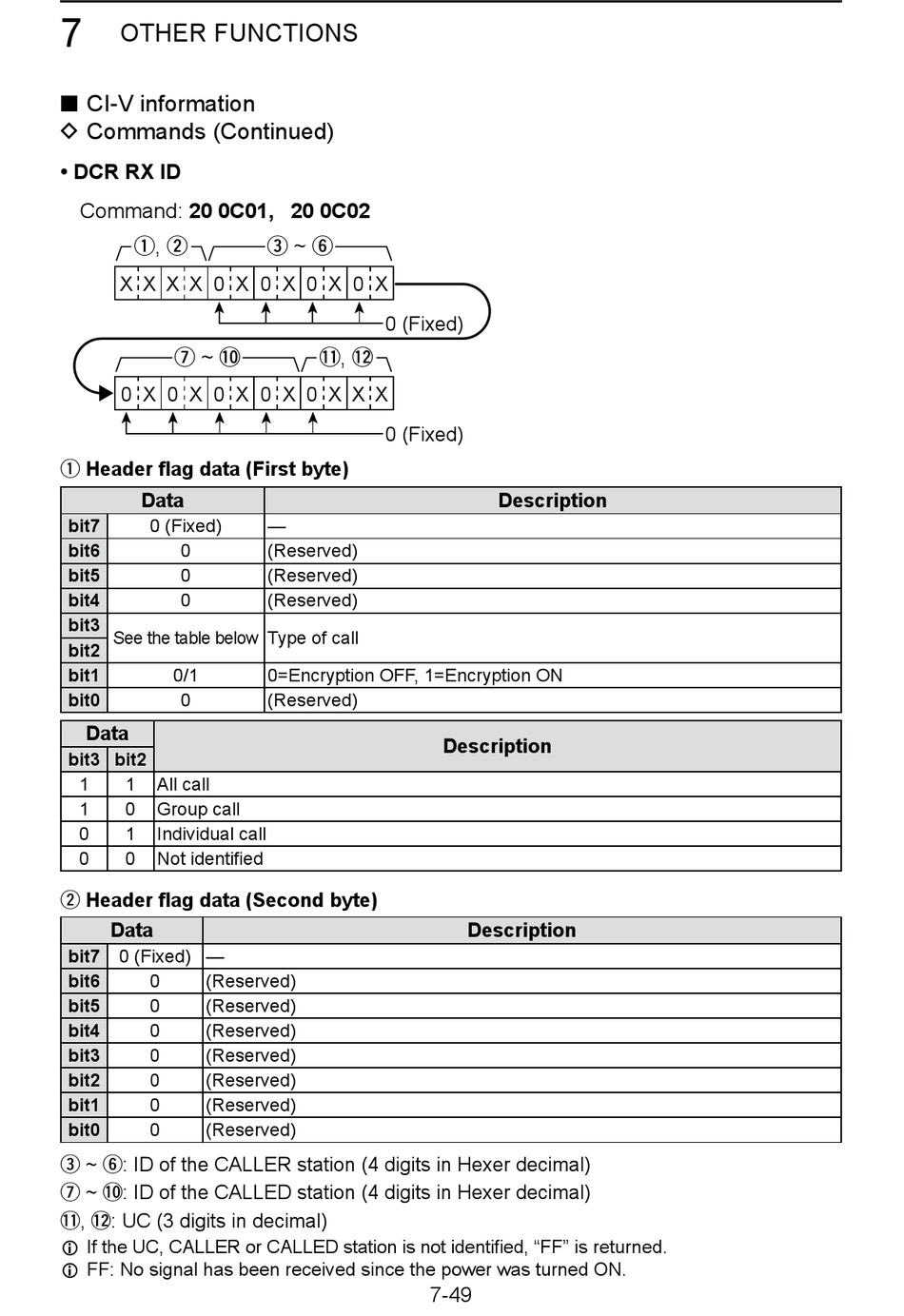

OTHER FUNCTIONS
■ CI-V information
D Commands (Continued)
• DCR RX ID
Command: 20 0C01, 20 0C02
q, w
X X X X 0 X 0 X
u ~ !0
0 X 0 X 0 X 0 X
q Header flag data (First byte)
Data
bit7 0 (Fixed)
bit6 0
bit5
0
bit4
0
bit3
See the table below Type of call
bit2
bit1 0/1
bit0 0
Data
bit3 bit2
1 1 All call
1 0 Group call
0 1 Individual call
0 0 Not identified
w Header flag data (Second byte)
Data
bit7 0 (Fixed) —
bit6 0 (Reserved)
bit5 0 (Reserved)
bit4
0 (Reserved)
bit3
0 (Reserved)
bit2 0 (Reserved)
bit1 0 (Reserved)
bit0 0 (Reserved)
e ~ y: ID of the CALLER station (4 digits in Hexer decimal)
u ~ !0 : ID of the CALLED station (4 digits in Hexer decimal)
!1 , !2 : UC (3 digits in decimal)
L If the UC, CALLER or CALLED station is not identified, "FF" is returned.
L FF: No signal has been received since the power was turned ON.
e ~ y
0 X 0 X
0 (Fixed)
!1 , !2
0 X X X
0 (Fixed)
—
(Reserved)
(Reserved)
(Reserved)
0=Encryption OFF, 1=Encryption ON
(Reserved)
