7
OTHER FUNCTIONS

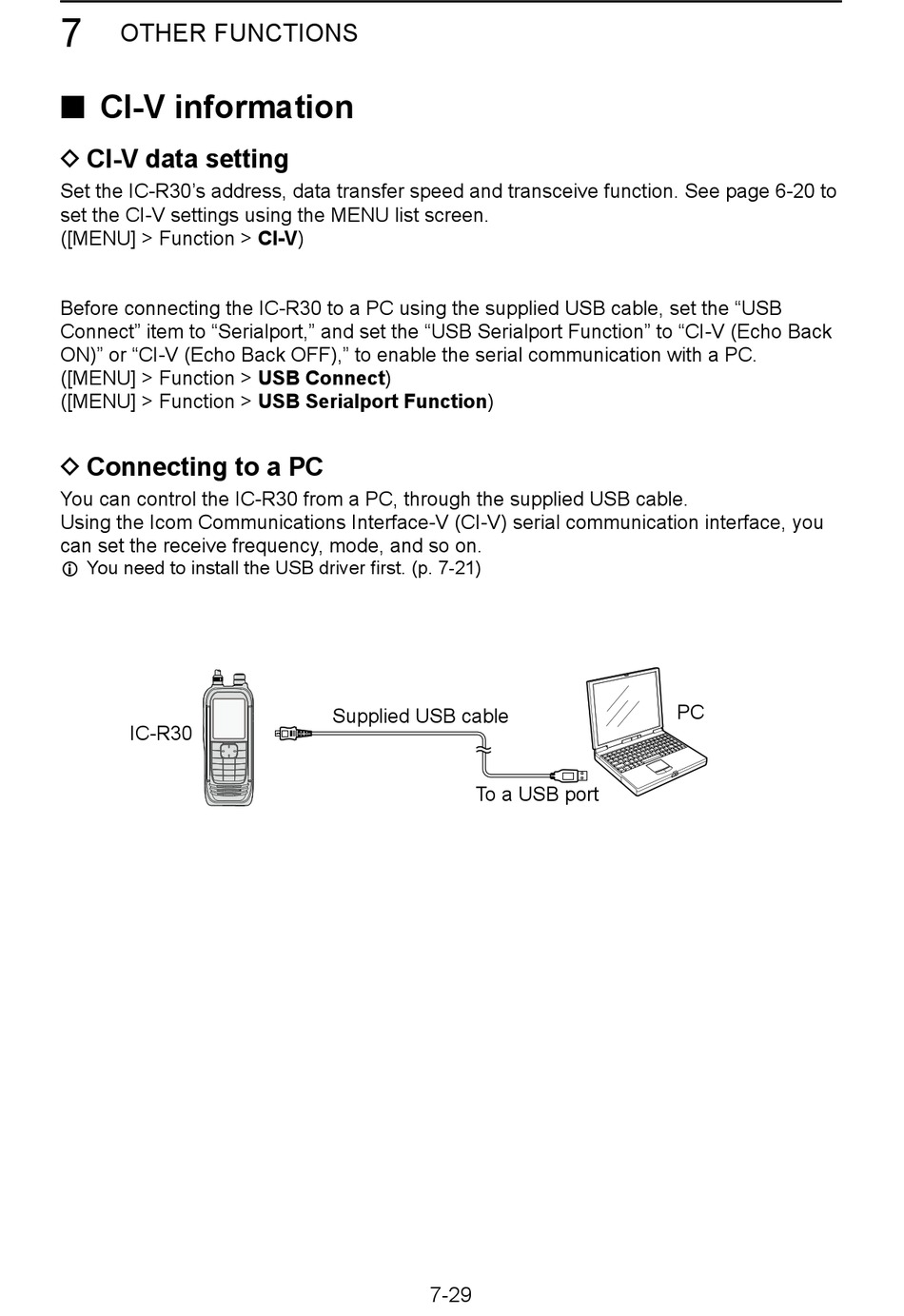

■ CI-V information

D CI-V data setting

Set the IC-R30's address, data transfer speed and transceive function. See page 6-20 to
set the CI-V settings using the MENU list screen.
([MENU] > Function > CI-V)
Before connecting the IC-R30 to a PC using the supplied USB cable, set the "USB
Connect" item to "Serialport," and set the "USB Serialport Function" to "CI-V (Echo Back
ON)" or "CI-V (Echo Back OFF)," to enable the serial communication with a PC.
([MENU] > Function > USB Connect)
([MENU] > Function > USB Serialport Function)

D Connecting to a PC

You can control the IC-R30 from a PC, through the supplied USB cable.
Using the Icom Communications Interface-V (CI-V) serial communication interface, you
can set the receive frequency, mode, and so on.
L You need to install the USB driver first. (p. 7-21)
PC
Supplied USB cable
IC-R30
To a USB port
7-29
