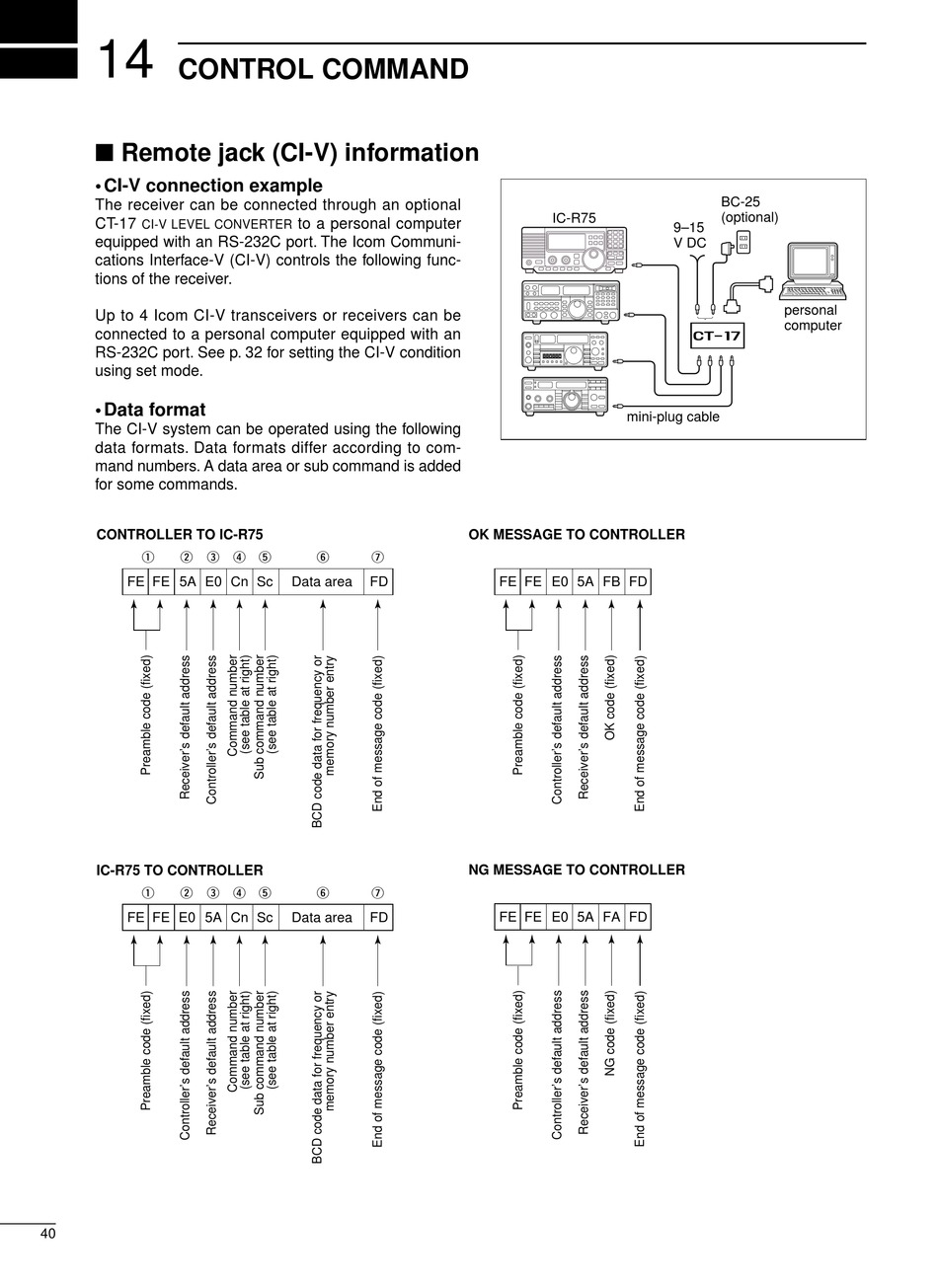

CONTROL COMMAND

Remote jack (CI-V) information

• CI-V connection example
The receiver can be connected through an optional
CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the receiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 32 for setting the CI-V condition
using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-R75
q w e
FE FE 5A E0 Cn Sc
IC-R75 TO CONTROLLER
q w e
FE FE E0 5A Cn Sc
40
to a personal computer
r t y u
Data area FD
r t y u
Data area FD
IC-R75
mini-plug cable
OK MESSAGE TO CONTROLLER
FE FE E0 5A FB FD
NG MESSAGE TO CONTROLLER
FE FE E0 5A FA FD
BC-25
(optional)
9–15
V DC
personal
computer
ct- 17
