Introducing the PCI-DAS08

Overview: PCI-DAS08 features

This manual explains how to configure, install, and use your PCI-DAS08 board. The PCI-DAS08 is a
multifunction measurement and control board designed to operate in computers with PCI bus accessory
slots.
The PCI-DAS08 board provides the following features:
Eight single-ended 12-bit analog inputs
12-bit A/D resolution
Sample rates of up to 40 kHz
±5V input range
Three 16-bit counters
Seven digital I/O bits (three input, four output)
Connector compatible with Measurement Computing's ISA-based CIO-DAS08 board
The PCI-DAS08 board is completely plug-and-play compliant, with no switches or jumpers to set.

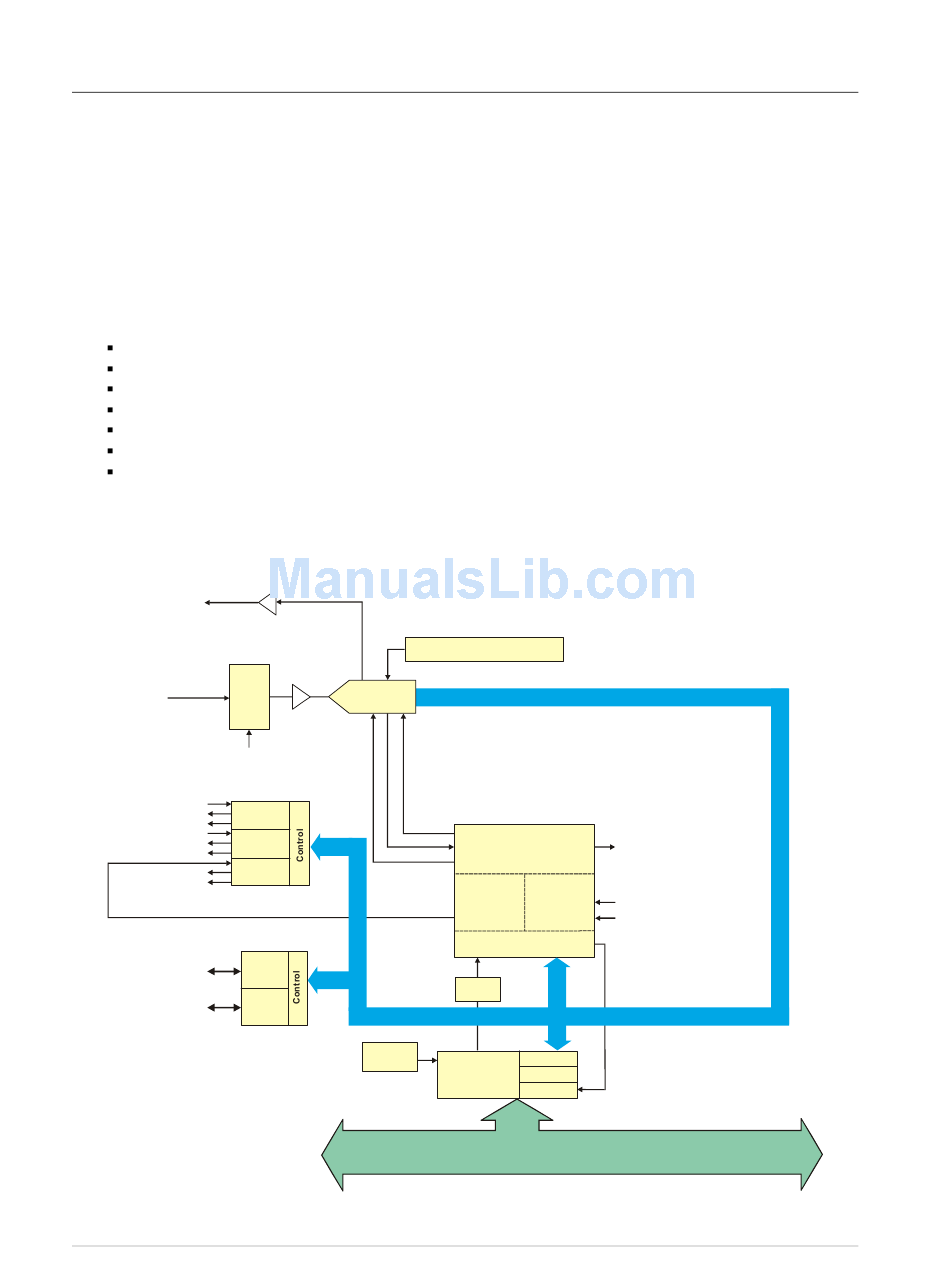

Configuration is controlled by your system's plug-and-play software. A functional block diagram of the
PCI-DAS08 is shown here.
10 Volt
Reference
Mux
Analog In
8 CH S.E.
Channel Select
16-bit Counters
Input Clock0
Gate0
Counter 0
Output Clock0
Input Clock1
Counter 1
Gate1
Output Clock1
Gate2 Counter 2
Output Clock2
Input Clock2
Digital I/O
Input
Input (2:0)
Output
Output (3:0)
Buffer
Gain and Offset Cal
Buffer
12-bit, 100 kHz
Start EOC
A/D
Control
82C54
Port
Port
Boot
EEPROM
Figure 1-1. PCI-DAS08 block diagram
Controller FPGA and Logic
ADC and MUX
Channel Select
Control
Counter 2
Clock
Interrupt
Output Clock2
Control
(33 MHz/8) EXT_INT
Decode/Status
Bus
Timing
BADR1
PCI
BADR2
Controller
Interrupt
PCI BUS (5 V, 32-BIT, 33 MHZ)
1-1
Chapter 1
LOCAL BUS
