Chapter 4: System Setup

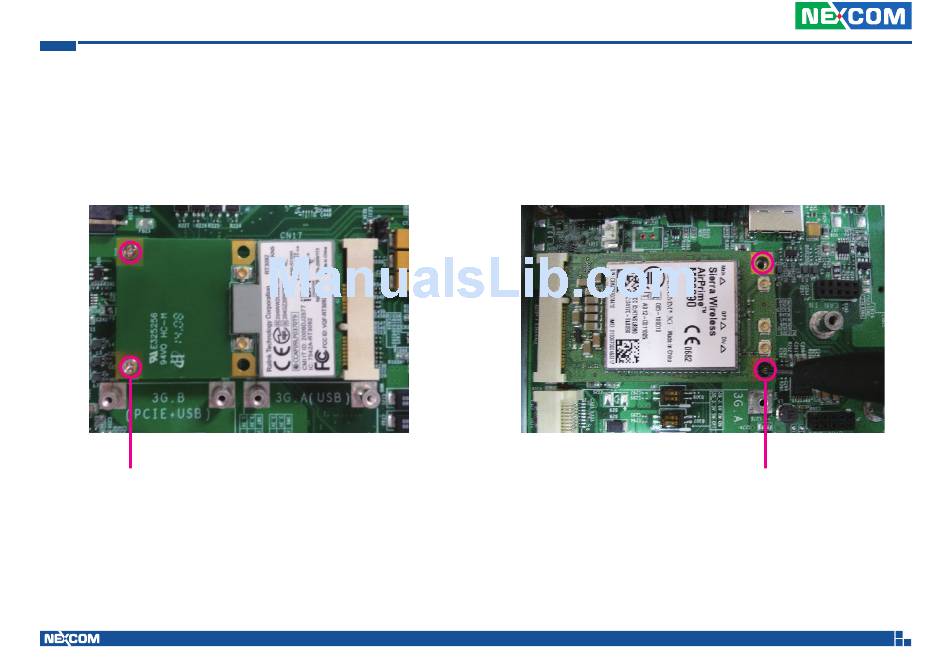

Installing a WLAN Module
1. Locate the WLAN Mini PCI Express slot (CN17). Insert the module into
the Mini PCI Express slot at a 45 degrees angle until the gold-plated
connector on the edge of the module completely disappears inside the
slot. Then fasten screws into the mounting holes to secure the module.
Mounting
screws
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Installing a WWAN Module
1. Locate the WWAN Mini PCI Express slot (CN26 & CN27). Insert the module
into the Mini PCI Express slot at a 45 degrees angle until the gold-plated
connector on the edge of the module completely disappears inside the
slot. Then fasten screws into the mounting holes to secure the module.
33
Mounting
screws
VTC 6210-R Series User Manual
