Chapter 4: System Setup

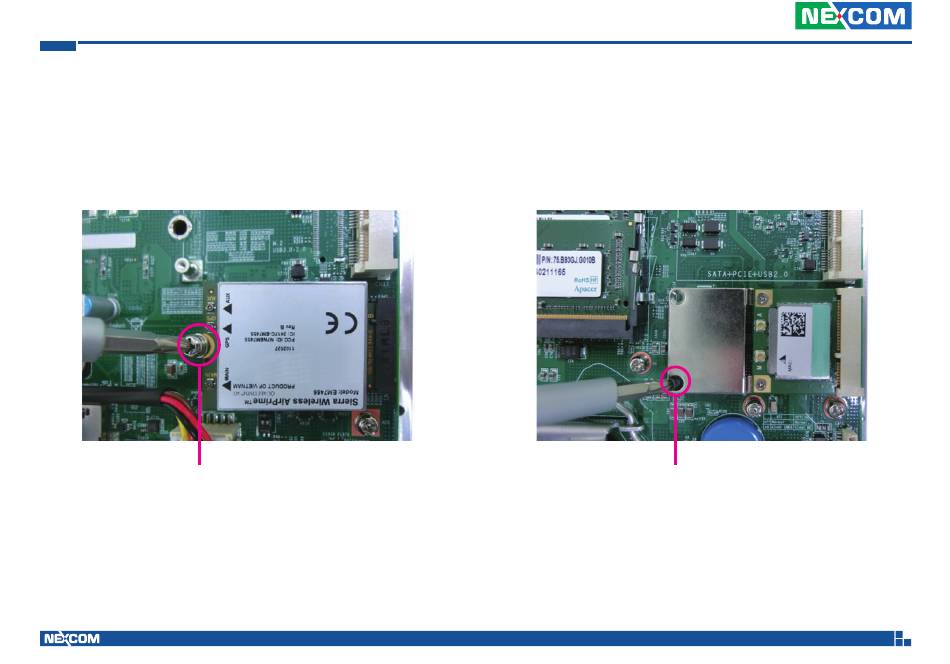

Installing a WWAN Module (M.2)

1. Locate the M.2 slot (CN10). Insert the module into the M.2 slot at a
45 degrees angle until the gold-plated connector on the edge of the
module completely disappears inside the slot. Then fasten a screw into
the mounting hole to secure the module.
Mounting
Screw
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.

Installing a WLAN Module (Half Mini-PCIe)

1. Locate the WLAN Mini PCI Express slot (CN9). Insert the module into the
Mini PCI Express slot at a 45 degrees angle until the gold-plated connector
on the edge of the module completely disappears inside the slot. Then
fasten a screw into the mounting hole to secure the module.
Mounting
47
Screw
