Appendix A: Software Demo Utility for I/O Ports of Function Control

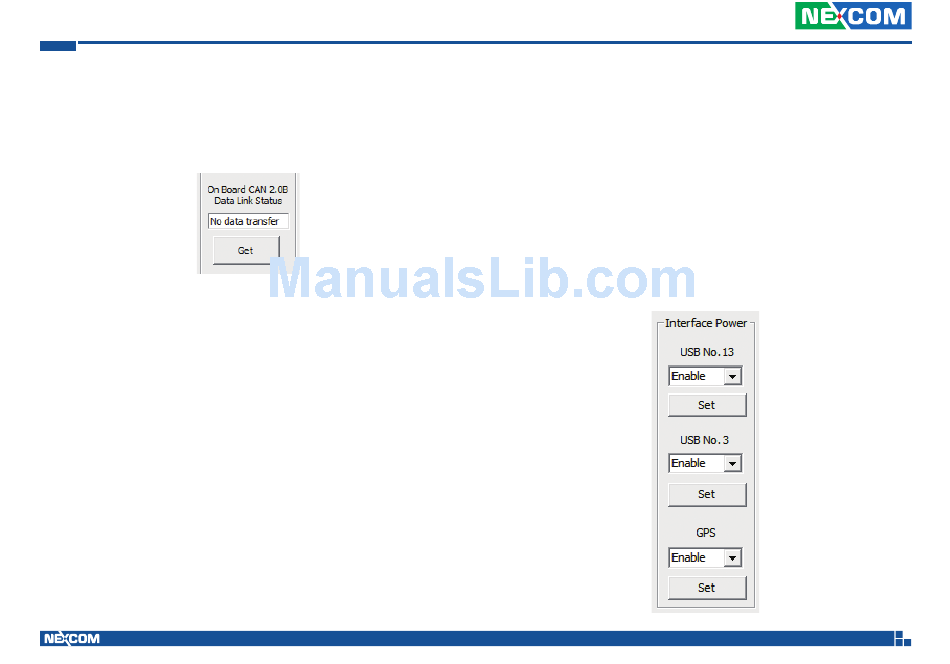

1.8 CAN Bus Setting

1.8.1 On Board CAN2.0B Data Link Status
Reads the connection status of on board CAN2.0B
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

1.9 Interface Power

1.9.1 USB No.13
Enables or disables the power to USB ports (No.13) on rear panel.
*In order to make all input devices (such as mouse and keyboard) work
correctly, please do not disable USB No. 13 and No.3 at the same time.
1.9.2 USB No.3
Enables or disables the power to USB ports (No.3) on front panel.
1.9.3 GPS
Enables or disables the power to GPS module.
