Appendix A: Software Demo Utility for I/O Ports of Function Control

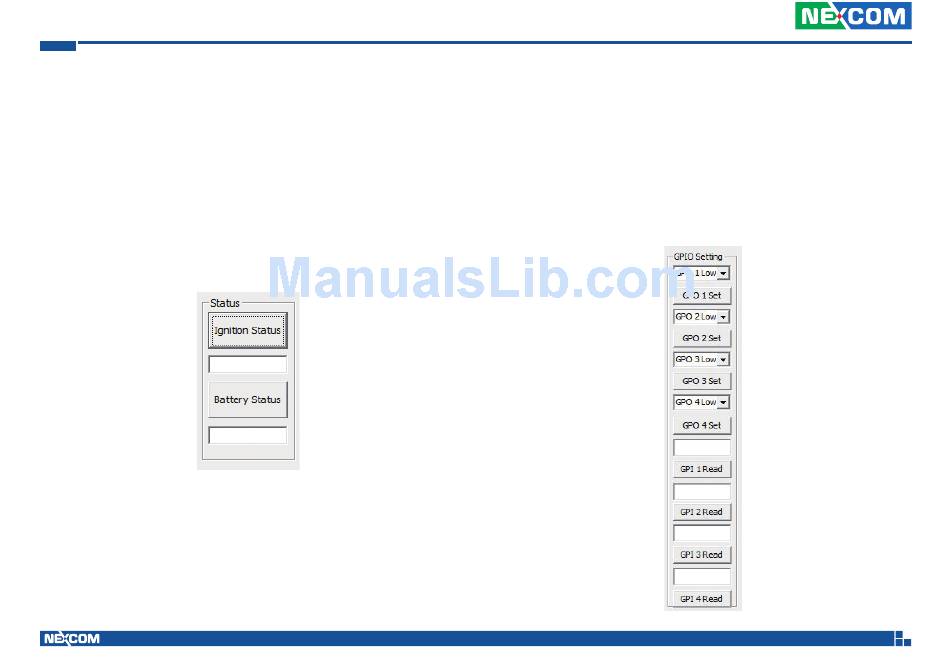

1.1 Status

1.1.1 Ignition Status
Press the button of Ignition Status, the signal of ignition will be shown.
ON ...... Signal of ignition is high.
OFF ..... Signal of ignition is low.
1.1.2 Battery Status
Press the button of Battery Status, the status of battery voltage will be shown.
Low voltage ...... Car battery is at low voltage.
OK .................... Car battery is not at low voltage.
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

1.2 GPIO Setting

1.2.1 GPIO Select
Defines GPIO port as GPO or GPI.
1.2.2 GPO Set
Selects the GPO ports and makes the output low or high.
1.2.3 GPI Read
Reads the status of GPI.
