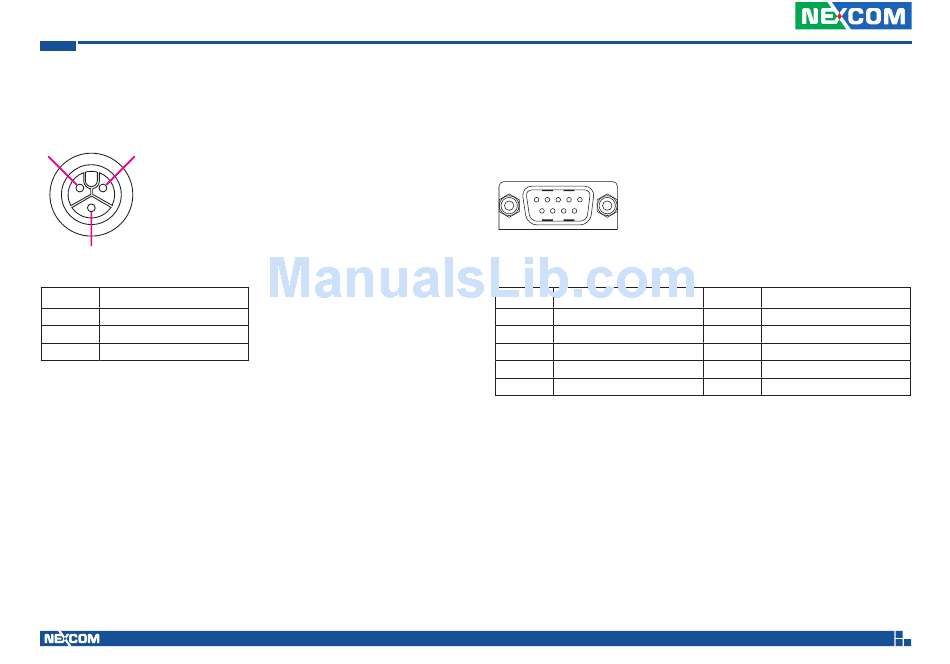

Chapter 2: External Connectors Pinout Description
DC Input (24/36/110 VDC)
Connector Number: 15
1
3
2
Pin
Definition
1
Ignition
2
GND
3
Vin
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
COM1 RS-232
Connector Number: 16
1
5
6
9
Pin
Definition
1
DCD_1
3
TXD_1
5
GND
7
RTS_1
9
RI
13
Pin
Definition
2
RXD_1
4
DTR_1
6
DSR_1
8
CTS_1
10
NC
VTC 6210-R Series User Manual
